3.1 Installation ambient
3.1.1 Demand for installation ambient
(1) Installed in drafty indoor place，ambient temperature within -10ºC~40ºC，need
external compulsory heat sink or reduce the volume if temperature exceeds40ºC.
(2) Avoid installing in place with direct sunlight, much dust, floating fibre and metal
powder.
(3) Forbid to install in place with corrosive, explosible gas.
(4) Humidity should be smaller than 95%RH，without condensation water.
(5) Installed in place of plane fixing vibration smaller than 5.9m/s²(0.6g).
(6) Keep away from electromagnetic disturbance source and other electronic
apparatus sensible to electromagnetic disturbance.
3.1.2 Installation direction and space
(1) Normally the inverter should be mounted vertically, horizontal mounting will
seriously affect heat dissipation and the inverter must be used in lower volume.
(2) Demand for minimum mounting space and distance，please see Fig.3-1.
(3) When install multiple inverters up and down, must apply leading divider between
them, see fig. 3-2.
Fan
exhaust
50mm
mm or more

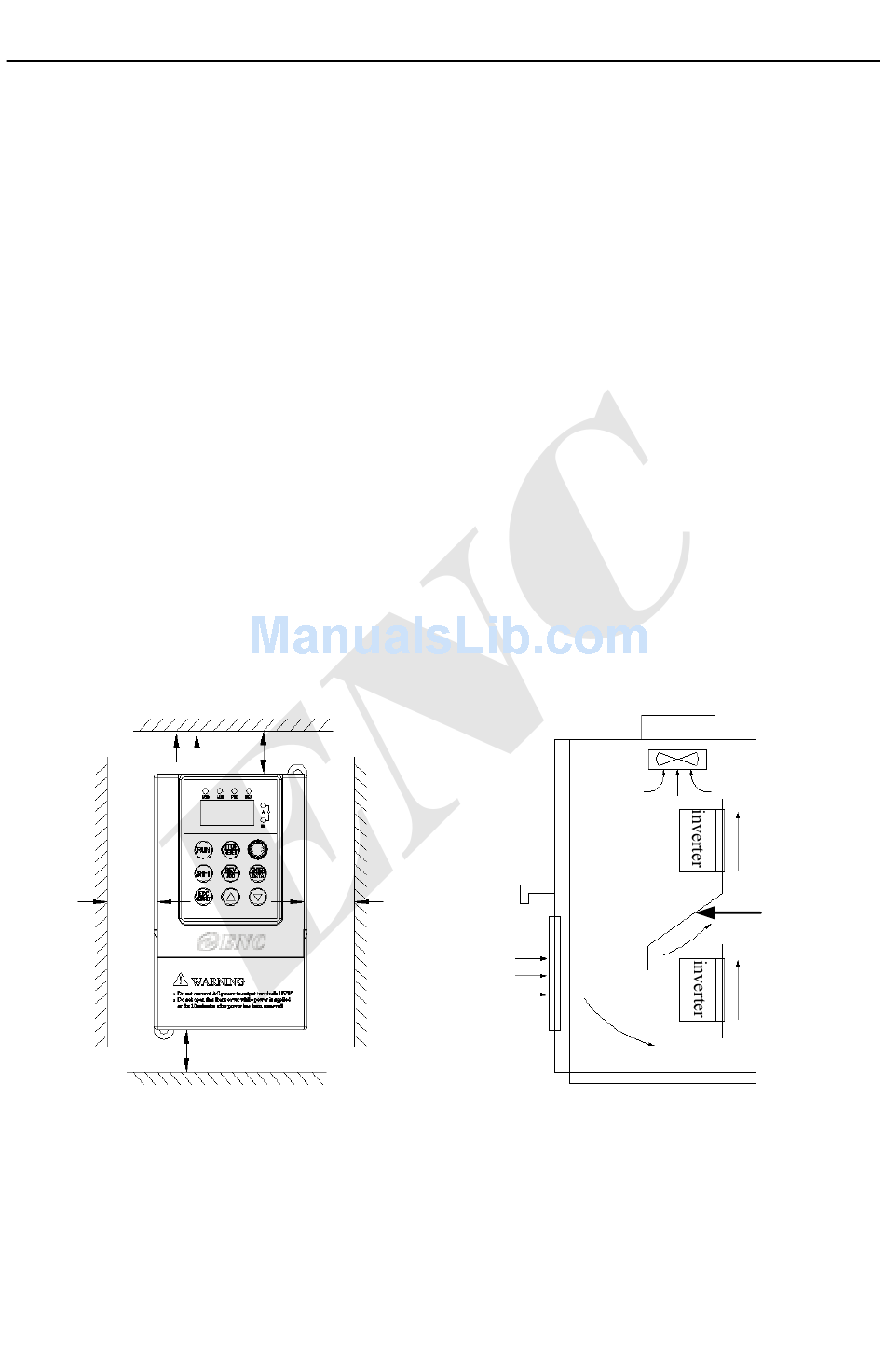

Fig. 3-1 mounting space
3.2 Parts disassembly and installation
3.2.1 Key board disassembly and installation
(1) disassembly
Let the forefinger press finger inlet on the keypad， depress fixing flexible plate on
the top lightly, draw it outward, then you can disassemble the keypad.
(2) assembly
EDS800 series Service Manual
3 Installation and wiring
100 mm or more
100mm or more
50mm
mm or more
Fig. 3-2 mounting of multiple inverters
10
Leading
divider
