3.5 Basic running wiring diagram

breaker
power
supply
②Notice2
forward run/stop
reverse run/stop
multi-function 1
multi-function 2
multi-function 3
multi-function 4
multi-function 5
①Notice 1
speed command
0~10V
0~10V or 4~20mA
Notice1:When FWD,RWV,X1～X5 terminal imput signal need low level(or pup
joint with COM) is effective. Please put JP3 on "L".
Notice2:When FWD,REV,X1～X4 terminal imput signal need high level(or pup
joint with +10v) is effective. Please put JP3 on "H".

3.6 Control loop collocation and wiring

3.6.1 Location&function of terminal and jump-wire:
For location of terminal and switch on the CPU board, please see Fig.3-7.
Function description of terminal provided for the user, please see Table 3-2，
function and setup description of switch, please see Table 3-3，terminal CN1 is for
manufacturer's use. Should carry on terminal wiring correctly and set switch on the
CPU board before using the inverter，to use at least No.24 conducting wire as
terminal connecting wire is recommended.
EDS800 series Service Manual
P+
L1
L2
L3
JP3
+10V
H
L
FWD
REV
EDS800
X1
X2
X3
X4
multi-function5
used for high speed
X5
pulse input
COM
+10V
VCI
CCI
GND

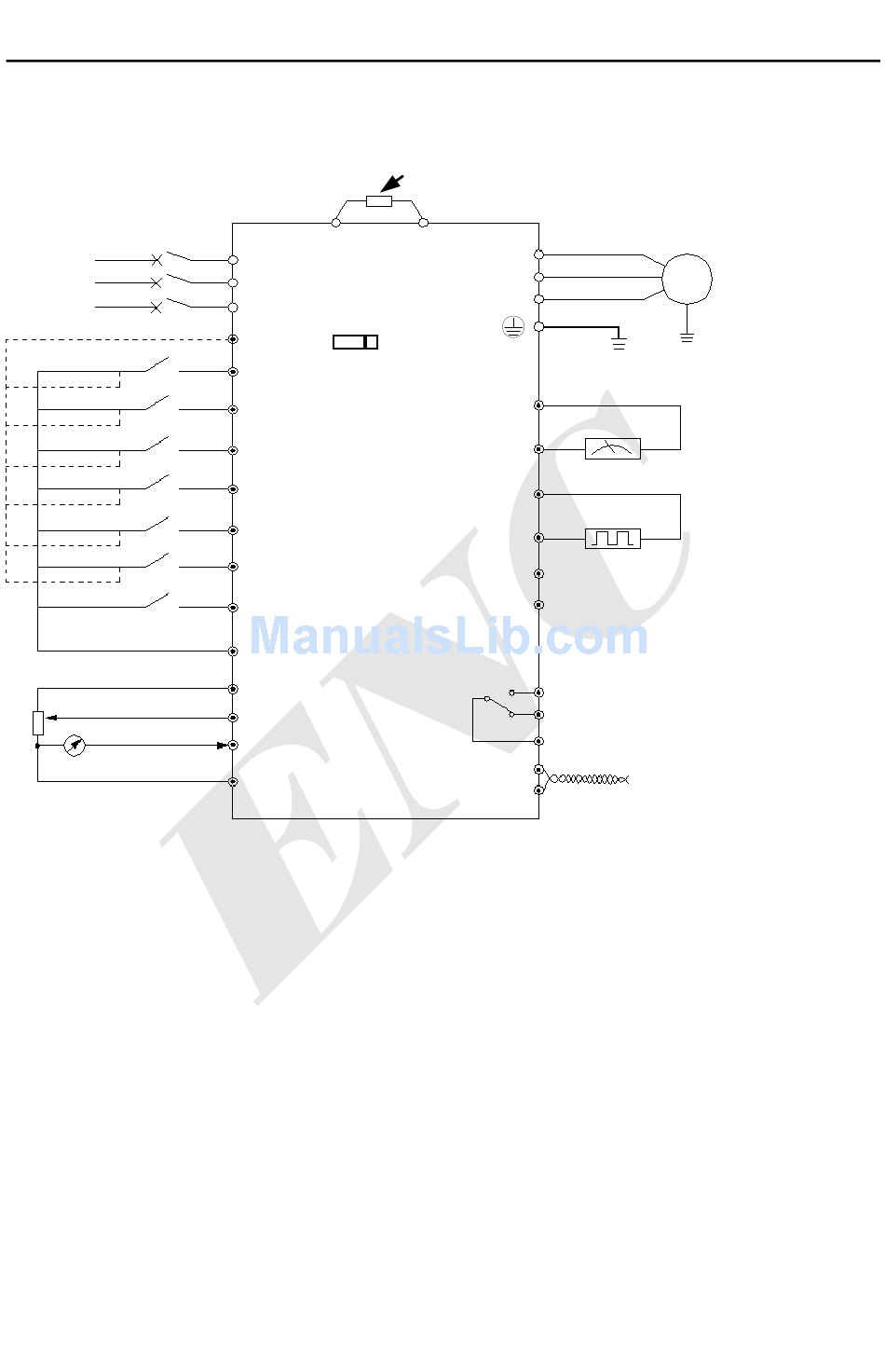

Fig. 3-6 basic wiring diagram
Braking unit (external,fitting part, interface at the
right side of inverter )
PB
U
V
W
GND
AO
DO
COM
open circuit collector output
OC
canbe
Maximum 220VAC, 0.5A
OCG
TA
TB
TC
485A
485B
14
M
DC amperometer
4-20mA current signal
or 0~10v voltage signal
Cymometer
Output 12V impulse signal
Malfunction relay output
Standard RS485
communication port
