4.1.4 Run mode

EDS800 inverter have 6 kinds of run mode，following is in turn according to
their priority: jog run→closed-loop run→PLC run→multisection speed run→
traverse run→common run. Shown as Fig.4-1.
high priority
N
low priority
0: jog run
Upon receiving jog run command (for instance, press the
during waiting state, the inverter run at jog frequency (see function code F2.06~F2.08).
1: closed-loop run
The inverter will come into closed-loop run mode when closed –loop run
control effective parameter is set(F3.00=1). Namely carry on PID adjustment to
specified value and feedback value(proportion integral differential calculation, see
F3 group function code) and PID adjustor output is inverter output frequency. Can
make closed-loop run mode ineffective and switch to lower level run mode by
multi-function terminal (function 20).
EDS800 series Service Manual
electrification
waiting
state
Any jog command？
N
Run command effective？
Y
Closed-loop effective？
Y
N
PLC effective？
Y
N
multisection end effective?
N
traverse run?
N

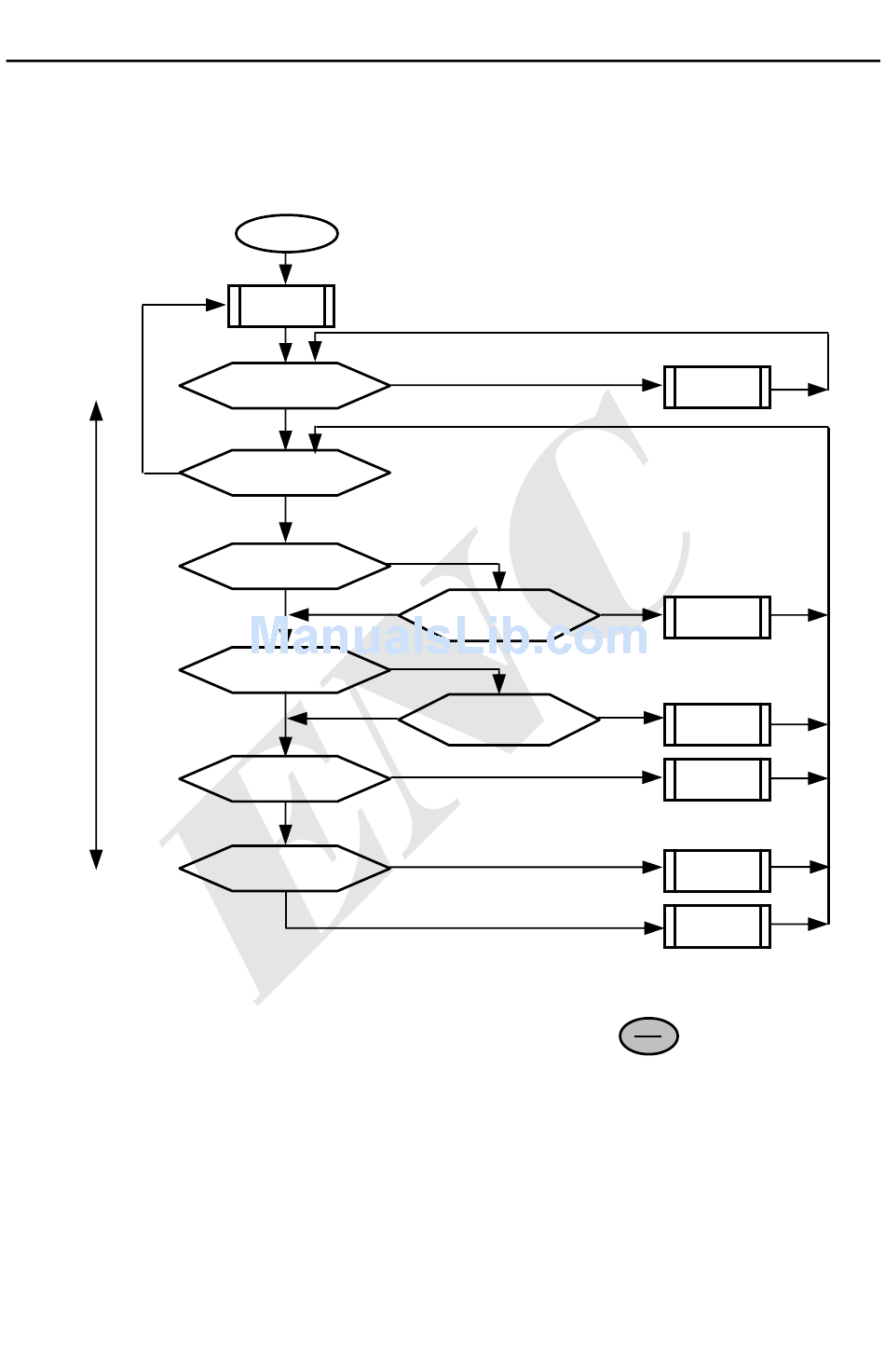

Fig.4-1 logic flow chart of EDS800 inverter run state
Y
Y
closed-loop invalidation
end closed？
Y
PLC
invalidation
end closed？
Y
Y
25
Jog run
N
closed-loop
run
N
PLC run
multisection
run
traverse
run
common
run
REV
key on keypad)
JOG
