Examples; Common Speed Regulation Running - SHENZHEN ENCOM ELECTRIC TECHNOLOGIES CO. EDS1000 series Service Manual

www.enc.net.cn/en Tel/Fax:86-755-26984485/26985120

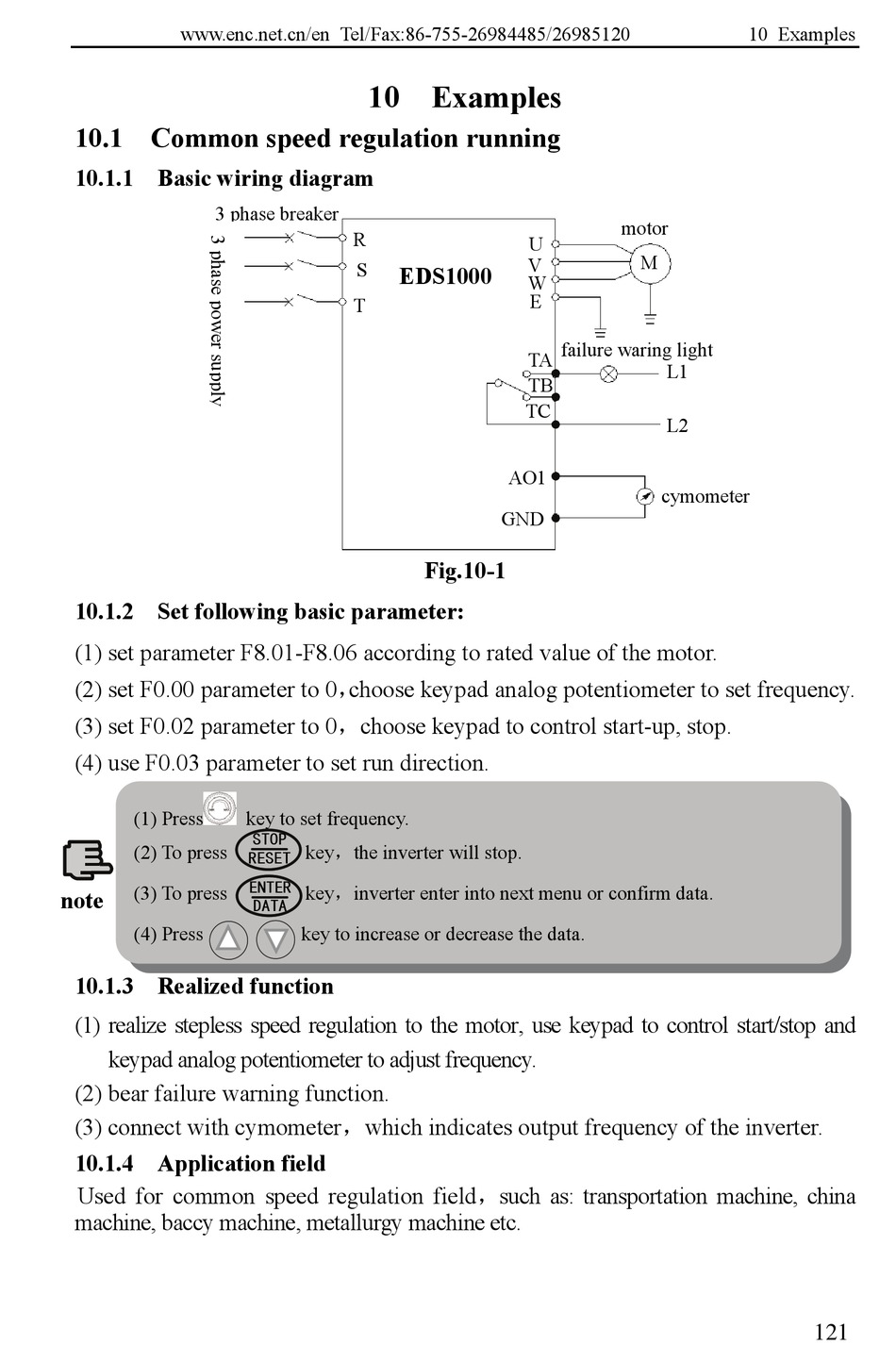

10.1 Common speed regulation running

10.1.1 Basic wiring diagram
3 phase breaker
10.1.2 Set following basic parameter:
(1) set parameter F8.01-F8.06 according to rated value of the motor.
(2) set F0.00 parameter to 0， choose keypad analog potentiometer to set frequency.
(3) set F0.02 parameter to 0，choose keypad to control start-up, stop.
(4) use F0.03 parameter to set run direction.
(1) Press
(2) To press
(3) To press
note
(4) Press
10.1.3 Realized function
(1) realize stepless speed regulation to the motor, use keypad to control start/stop and
keypad analog potentiometer to adjust frequency.
(2) bear failure warning function.
(3) connect with cymometer，which indicates output frequency of the inverter.
10.1.4 Application field
Used for common speed regulation field，such as: transportation machine, china
machine, baccy machine, metallurgy machine etc.
122

10 Examples

R
S
EDS1000
T
key to set frequency.
STOP
key，the inverter will stop.
RESET
ENTER
key，inverter enter into next menu or confirm data.
DATA
key to increase or decrease the data.
U
V
W
E
failure waring light
TA
TB
ENTER
TC
DATA
AO1
GND
Fig.10-1
10 Examples
motor
M
L1
L2
cymometer
121
