If the 2nd bit is set to"1"，this function is effective for keypad run command channel,
terminal run command channel and serial port run command channel.
note
F0.04 Accelerating decelerating mode selection
0: linear Acce/Dece mode. Output frequency increases or decreases according
to constant slope, just as shown in Fig.6-1.
1: S curve Acce/Dece mode. Output frequency increases or decreases
according to S curve, just as shown in Fig.6-2.
Freq
50.00Hz
t
1

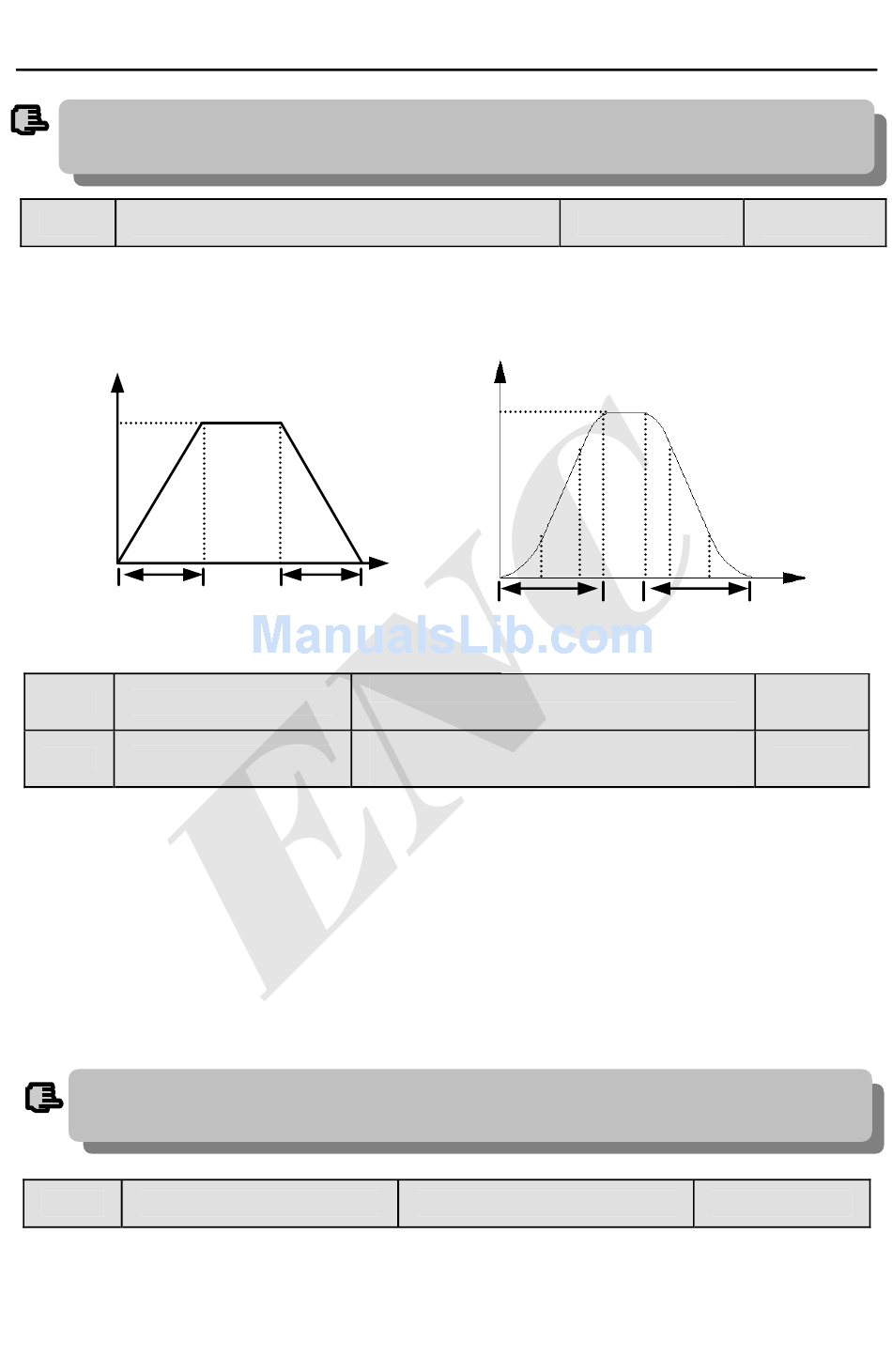

Fig.6-1 linear Acce/Dece
F0.05
S curve starting time
F0.06
S curve rising time
F0.05, F0.06 is only effective when S curve Acc/Dec mode( F0.04＝1)is
selected during Acc/Dec selection, and F0.05＋F0.06≤90%.
S curve starting time is shown as Fig. 6-2③，slope of output frequency variation
increases by degrees from 0.
S curve rising time is shown as Fig.6-2②，slope of output frequency variation is
constant.
S curve ending time is shown as Fig.6-2①，slope of output frequency variation steps
down to 0.
S curve Acc/Dec mode，suitable for starting and stopping elevator, deferent belt, carrier
transporter load etc..
note
F0.07 Acc/Dec time unit
This function determines Acc/Dec time unit.
0: second
1: minute
EDS800 series Service Manual
50.00Hz
time
t
2
Range：10.0(％)－50.0(％) （Acc/Dec
time）F0.05＋F0.06≤90(％)
Range：10.0(％)－80.0(％) （Acc/Dec
time）F0.05＋F0.06≤90(％)
Range：0, 1
53
Range：0, 1
Freq.
①
①
②
③
t
1
Fig.6-2 S curve Acce/Dece
0
②
③
time
t
2
20.0(%)
60.0(%)
