Table 3-2 function description of terminal provided for user
symbol
Malfunction relay signal
CON2
output
External terminal input
CON3
output control
Table 3-3 function description of switch provided for user
symbol
Analog AO output,0~10v exchange with 4~20mA
JP1
When be put on "V"side,for 0~10v output;when be put
on"I",for 4~20mA output
Analog CCI input,0~10V exchange with 4~20mA.
When be put on "V"side,for 0~10V input;when be put on
JP2
"I"side.for 4~20mA input.
Xi terminal iinput effective level exchange:when put
on"H"side,Xi input high level effective(the effective
JP3
voltage is 5~12V);When put on "L"side. Xi input low
level effective(the effective voltage is 0~6V)
EDS800 series Service Manual

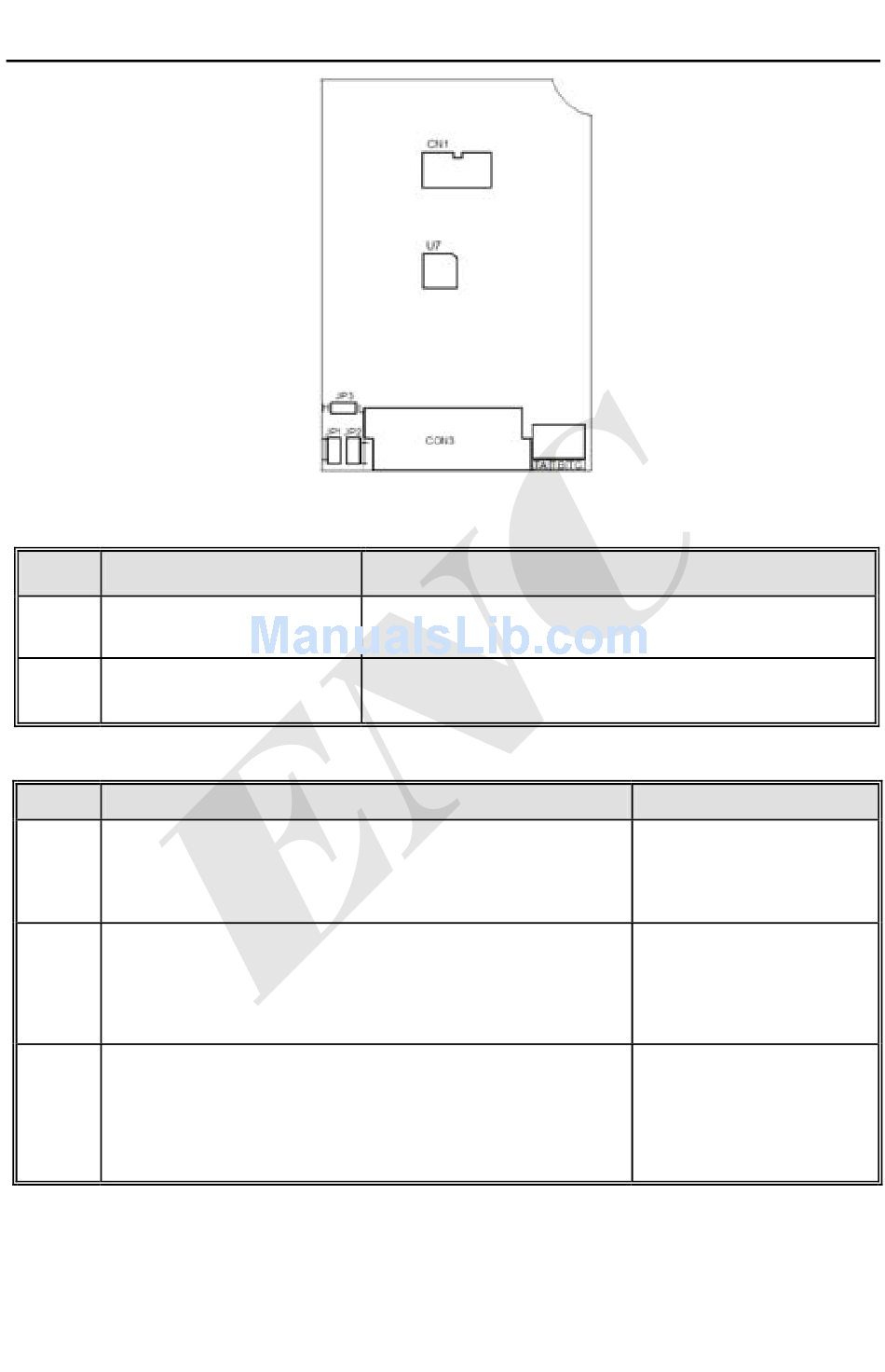

Fig. 3-7 switch on CPU board
function
function
Always-open connect pin of the relay closed when
malfunction in inverter occurs
Use this port when external terminal control inverter
running
15
Description
factory default
0~10V
0~10V
Low level effective
