Traverse run frequency is restricted by high limit, low limit frequency；if set improperly，
abnormal traverse operaion arise.
note
F6.03 Sudden jumping freq.
As shown in Fig.6-36.If this parameter is set to 0, no jumping frequency.
F6.04 traverse cycle
Whole time for a cycle including traverse rising, descending process.
Triangle wave
F6.05
rising time
Define runtime of traverse rising segment=F6.04×F6.05 (s)，runtime of
descending segment = F6.04×(1-F6.05) (s). Please refer to description in Fig.6-37.
Traverse preset
F6.06
frequency
Traverse preset
F6.07
frequency latency time
F6.06 is used for defining inverter run frequency before entering into traverse
operation.
When automatic start-up mode is optioned，F6.07 is used for setting holding
time running at traverse preset frequency before enter into traverse operation；When
manual start-up mode is optioned，F6.07 setting is ineffective. Please see description in
Fig.6-37.
traverse high limit F
center freq.Fset
traverse low limit F
traverse preset freq.
run command
stop command
EDS800 series Service Manual
Range：0.1－999.9S
Range: 0.0-98.0(％)(traverse cycle)
Run freq. Hz
h
+AW
-AW
L
a1
weaving
Accel per
start-up latency
accel time
time F6.07

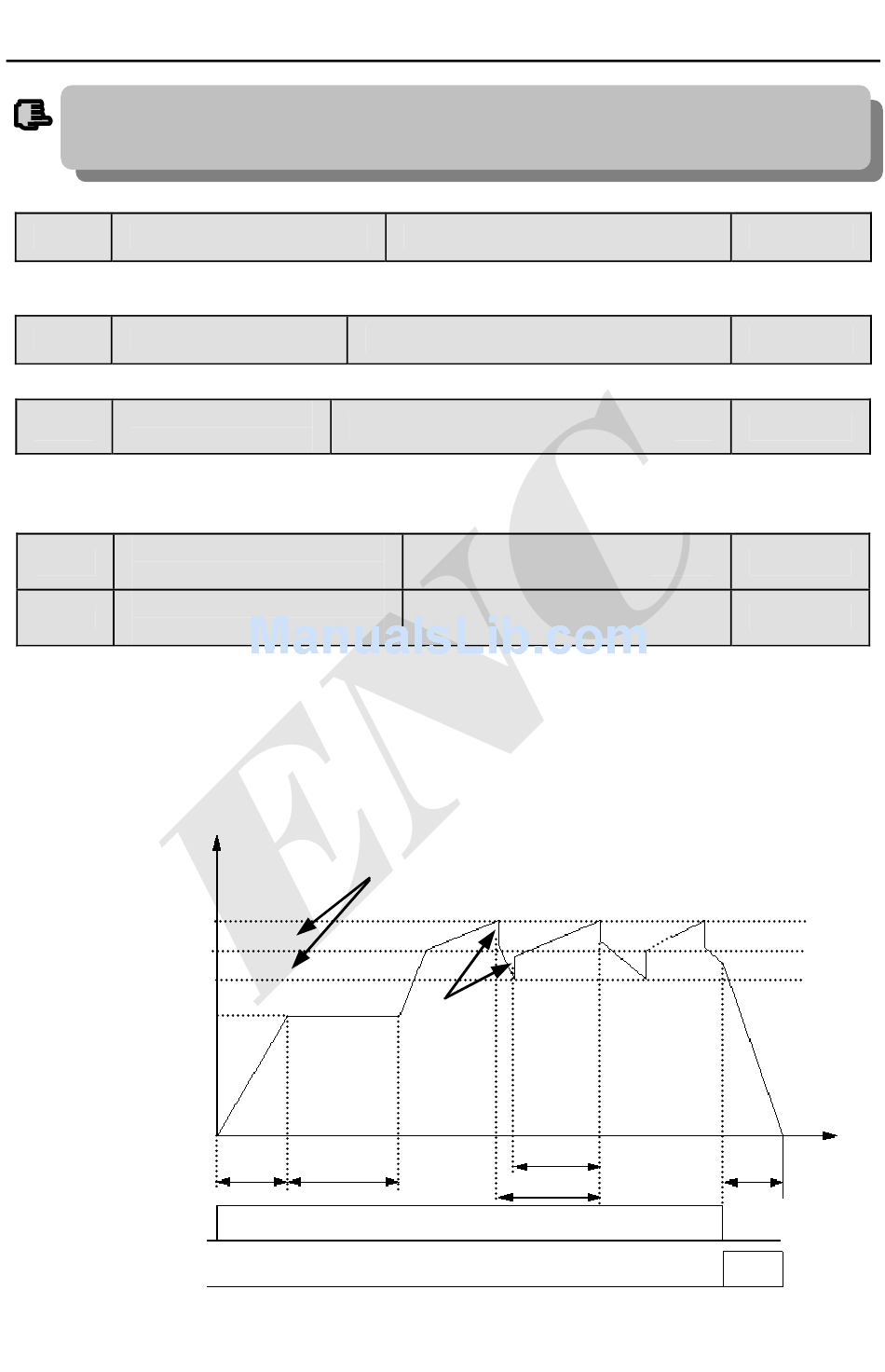

Fig. 6-37 traverse
Range：0.0－50.0（%）
Range：0.00－400.00Hz
Range：0.0－6000S
traverse amplitude
AW=Fset*F6.02
Weaving sudden
jumping freq.
=AW*F6.03
triangle wave rising time
=F6.04*F6.05
traverse cycle
94
0.0(％)
10.0S
50.0(%)
0.00Hz
0.0S
time t
Decel per
Decel time
