0: 2-wire control mode 2
2: 3-wire control mode 1
thereinto:
SB1: stop button
SB2: forward run button
SB3: reverse run button
Xi is multifunction input terminal of X1~X5, here should define its corresponding
terminal function as No. 19 "3-wire run control" function.
3: 3-wire control mode 2
SB1: stop button
SB2: run button
Xi is multifunction input terminal X1~X5, here should define its corresponding
terminal function as No. 19 "3-wire run control" function.
The inverter restores after failure and start at once if run command channel
selecting terminal and terminal FWD/REV is effective during warning alarm stop.
F5.09 UP/DOWN speed
EDS800 series Service Manual
run
K2 K1
0 0 stop
1 0 stop
0 1 forward run
1 1 reverse run

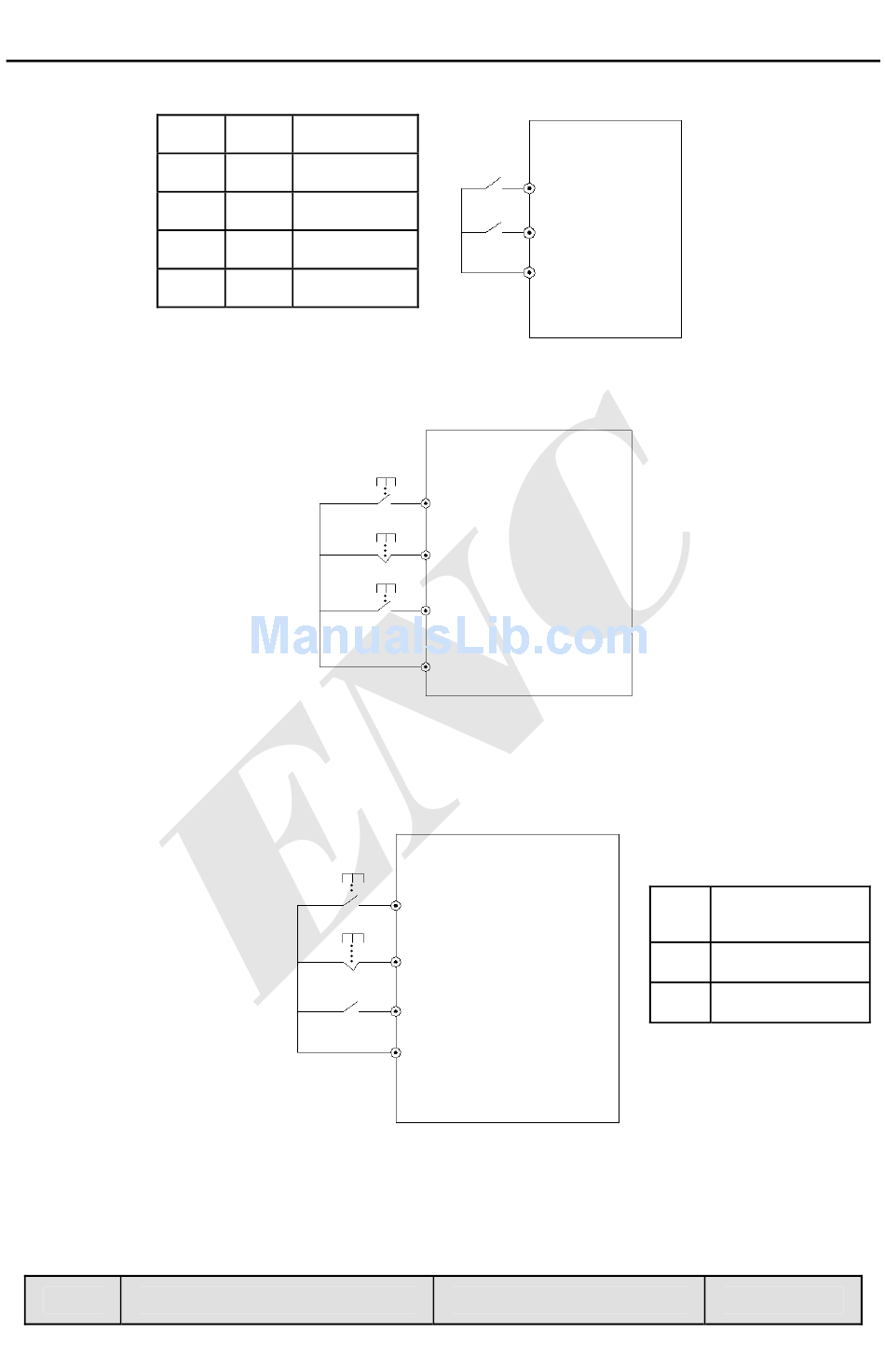

Fig.6-30 2-wire run mode
SB2
SB1
SB3
Fig.6-31 3-wire run mode 1
SB2
SB1
K2
Fig.6-32
EDS800
K
1
FWD
K
2
REV
COM
EDS800
FWD
Xi
REV
COM
EDS800
FWD
Xi
REV
COM
3-wire run mode 2
Range：0.01－99.99Hz/s
88
run direction
K2
selection
0 Forward run
1 Reverse run
1.00Hz/s
