2 Type and specification of the inverter

2.1 Incoming inverter inspect

(1) Check if there is damage during transportation and inverter itself has damage or fall-off
parts.
(2) Check if parts presented in packing list are all ready.
(3) Please confirm rated data of the inverter is in line with your order requirement.
Our product is guaranteed by strict quality system during manufacturing,
packing, transportation etc., please contact our company or local agent rapidly if
some careless omission or mistake arise, we'll deal with it as soon as possible.

2.2 Type explanation

Inverter serial no
Volt. grade
220V
380V
Input volt.
Single phase
3 phase
If the inverter hasn't relevant content or can be defaulted, code after "/" will be ignored.
note

2.3 Nameplate explanation

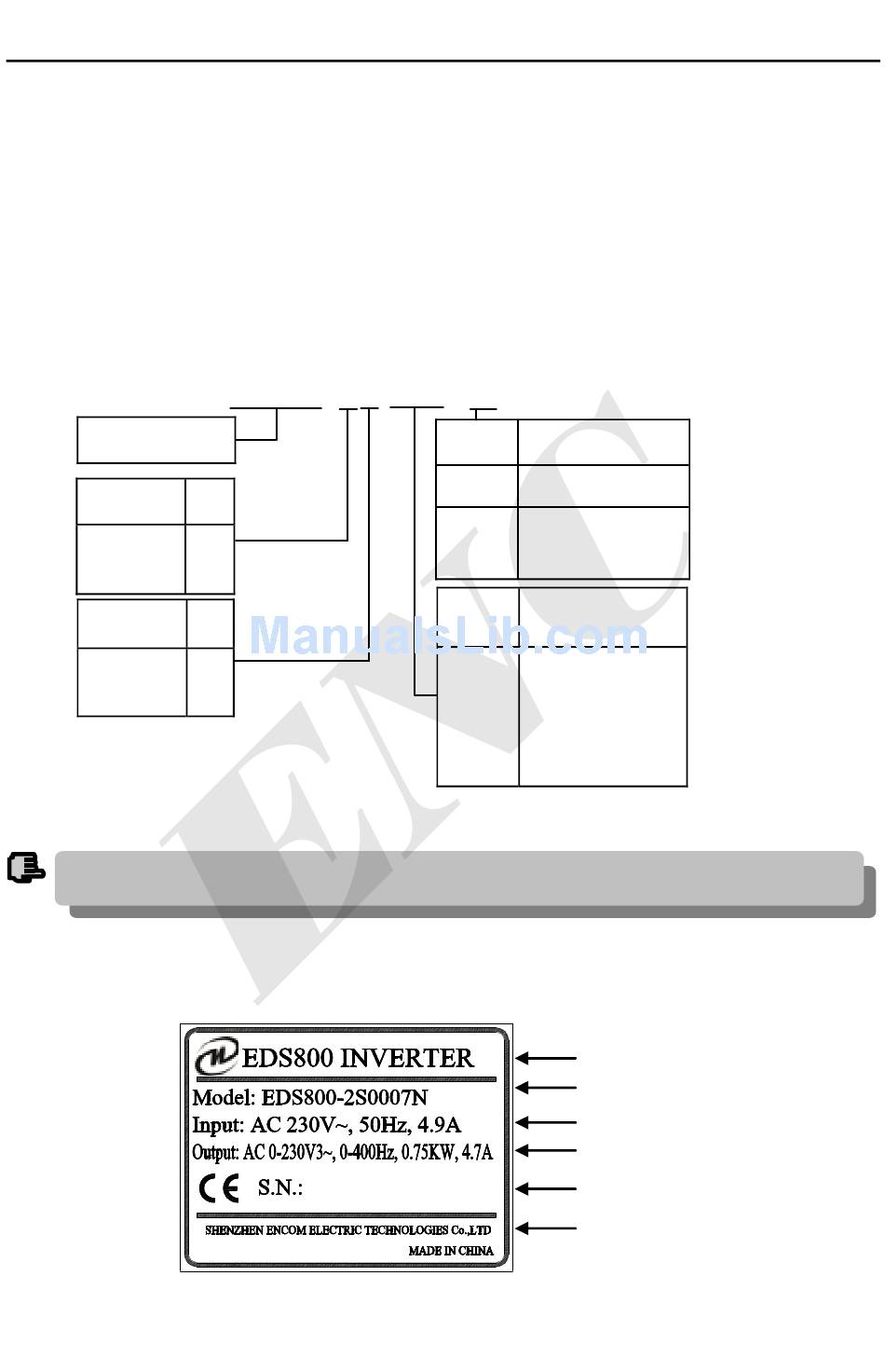

Nameplate presented as figure 2-2 with type and rating data at the bottom of
inverter right side.
EDS800 series Service Manual
EDS800– 4 T 0015N B
code
2
4
Code
S
T
Fig. 2-1
Fig.2-2 Nameplate
code Fitting part
B
built-in brake unit
built-in brake unit
C
&brake resistance
Motor power
code
(KW)
0002N
0004N
0007N
0015N
type description
5
0.2
0.4
0.75
1.5
Series No.
Model
Rated input volt. and frequency
Output apparent power and current
Serial No.
Manufacturer
