9.5 Consecutive action running

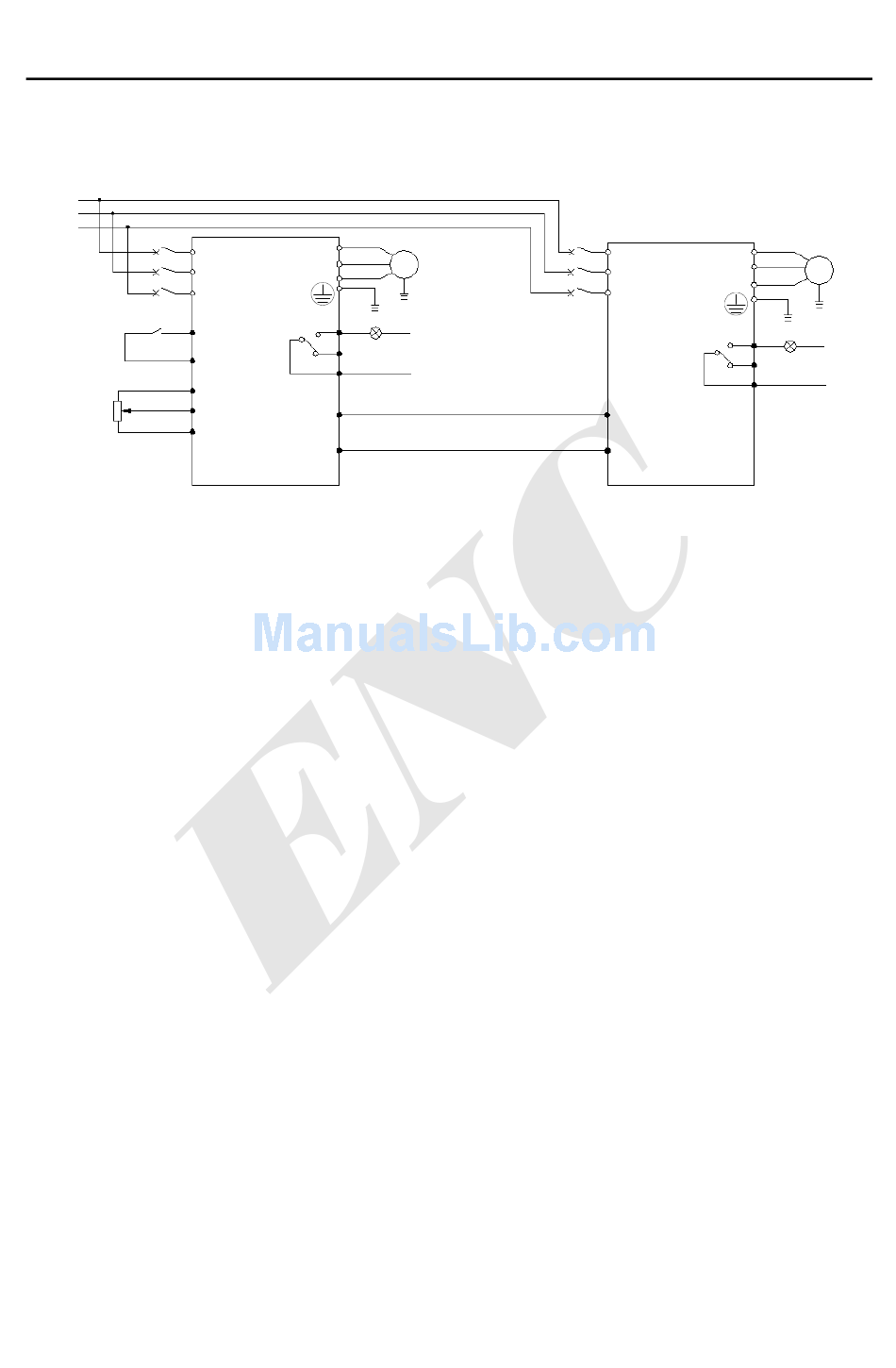

9.5.1 Basic wiring diagram
power
QF
supply
FWD run
command
10KΩ
9.5.2 Parameter setting
set 1# inverter as follows:
(1) F0.02=1: terminal run command control.
(2) F5.23=0: DO terminal output pulse signal for 1# inverter output frequency.
(3) F5.10=0: 1# inverter running signal is outputted by digital output terminal OC.
set 2# inverter as follows:
(5) F0.00=7: terminal pulse setting is frequency provision for 2# inverter.
(6) F0.02=1: terminal run command control.
(7) F5.04=38：X5 is for pulse frequency input.
After above setting, can use digital/pulse output quantum of 1# inverter to realize consecutive
action of 2# inverter.
9.5.3 Operation description
After receive forward run command from external switch(closed) and
frequency specified value( 0~10V)from analog input terminal VCI, 1# inverter run
at this frequency value. At the same time, already running state of 1# inverter，make
2# inverter get forward run command through open circuit collector output end OC，
here，run frequency value from high-speed pulse output terminal of 1# inverter is
passed to 2# inverter through X5 terminal.
9.5.4 Application field
Applied in field such as conveyer belt, coiler, factory production line, food
chemistry, piece drawer etc.
EDS800 series Service Manual
