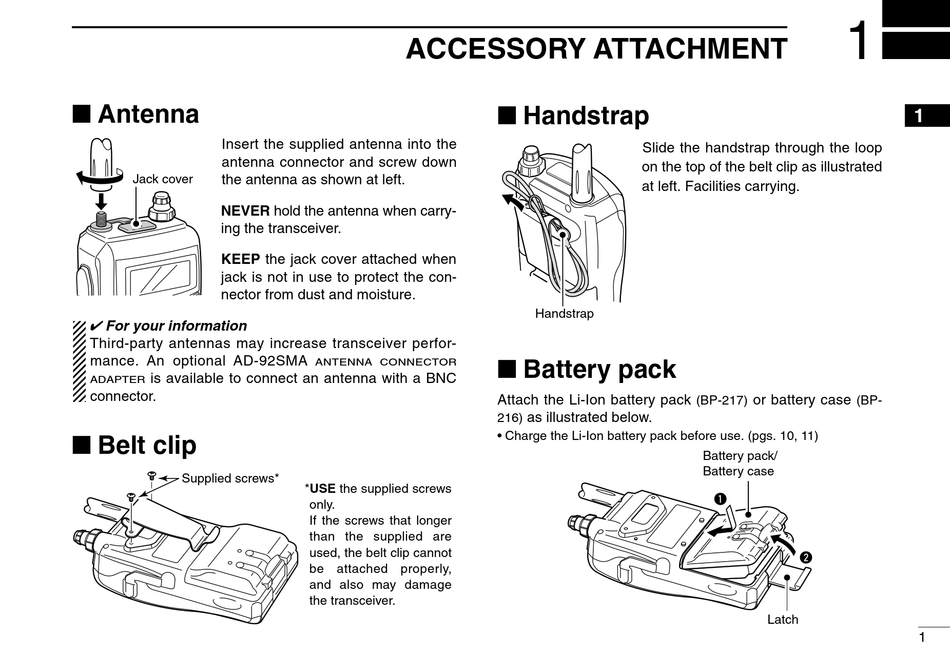

I Antenna

Insert the supplied antenna into the
antenna connector and screw down
Jack cover the antenna as shown at left.
NEVER hold the antenna when carry-
ing the transceiver.
KEEP the jack cover attached when
jack is not in use to protect the con-
nector from dust and moisture.
✔ For your information
Third-party antennas may increase transceiver perfor-
mance. An optional AD-92SMA
is available to connect an antenna with a BNC
ADAPTER
connector.

I Belt clip

Supplied screws*

ACCESSORY ATTACHMENT

ANTENNA CONNECTOR
*USE the supplied screws
only.
If the screws that longer
than the supplied are
used, the belt clip cannot
be attached properly,
and also may damage
the transceiver.

I Handstrap

Slide the handstrap through the loop
on the top of the belt clip as illustrated
at left. Facilities carrying.
Handstrap

I Battery pack

Attach the Li-Ion battery pack
as illustrated below.
216)
• Charge the Li-Ion battery pack before use. (pgs. 10, 11)
1
or battery case
(BP-217) (BP-

Battery pack/

Battery case
q
w
Latch
