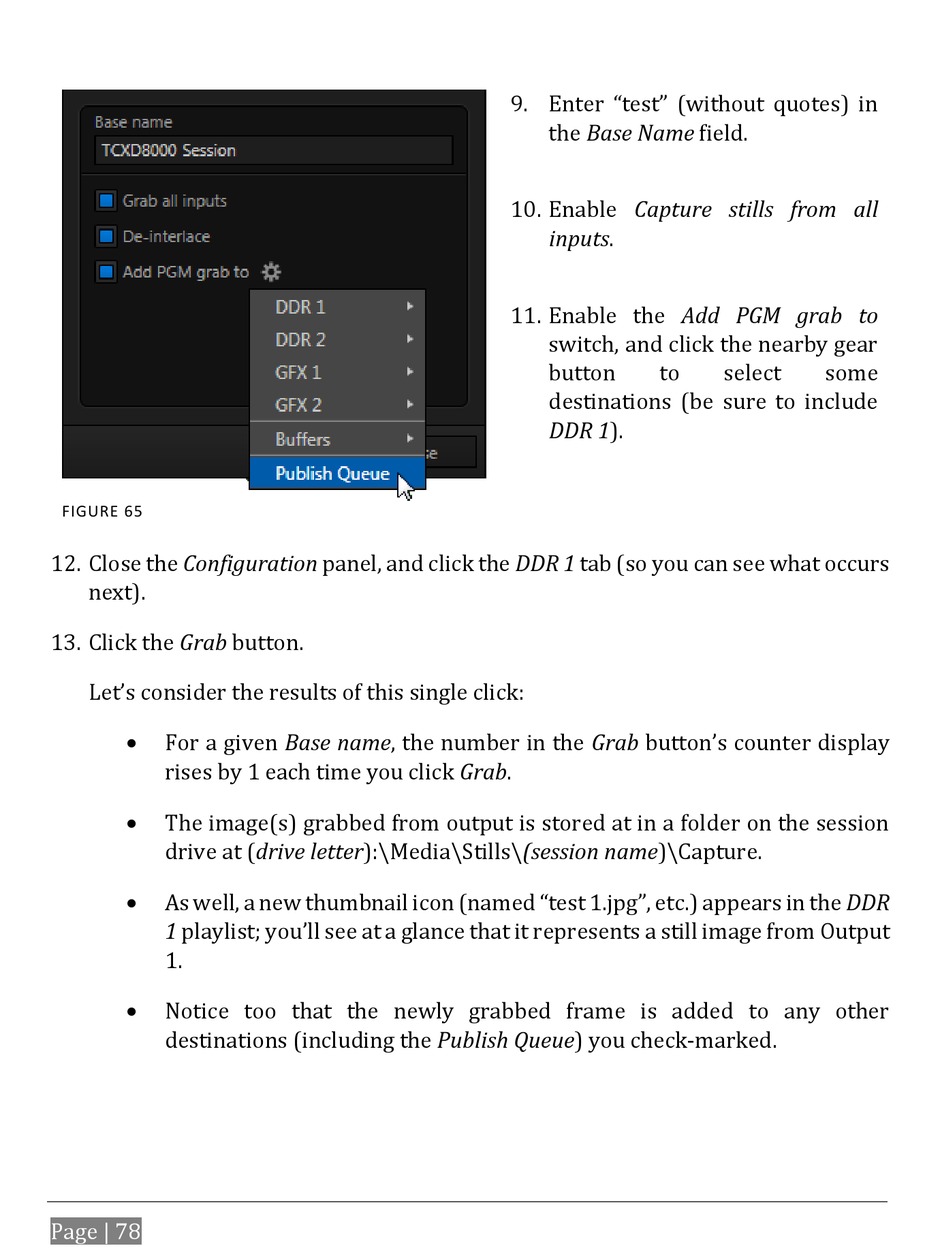

FIGURE 65
12. Close the Configuration panel, and click the DDR 1 tab (so you can see what occurs
next).
13. Click the Grab button.
Let's consider the results of this single click:

For a given Base name, the number in the Grab button's counter display
rises by 1 each time you click Grab.

The image(s) grabbed from output is stored at in a folder on the session
drive at (drive letter):\Media\Stills\(session name)\Capture.

As well, a new thumbnail icon (named "test 1.jpg", etc.) appears in the DDR
1 playlist; you'll see at a glance that it represents a still image from Output
1.

Notice too that the newly grabbed frame is added to any other
destinations (including the Publish Queue) you check-marked.
Page | 78
9. Enter "test" (without quotes) in
the Base Name field.
10. Enable Capture stills from all
inputs.
11. Enable the Add PGM grab to
switch, and click the nearby gear
button to
destinations (be sure to include
DDR 1).
select some
