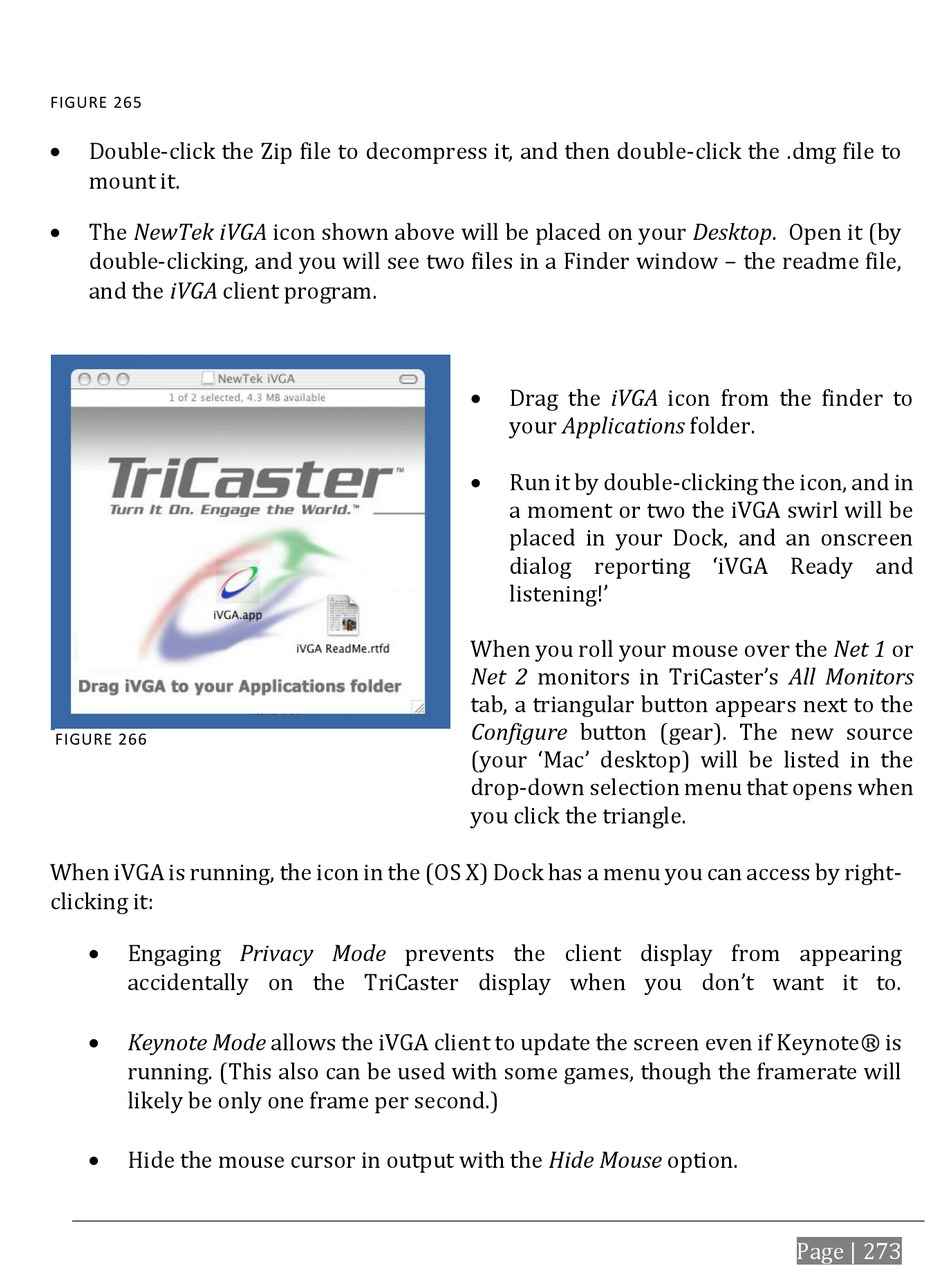

NewTek TriCaster Mini User Manual page 289

FIGURE 265

Double-click the Zip file to decompress it, and then double-click the .dmg file to
mount it.

The NewTek iVGA icon shown above will be placed on your Desktop. Open it (by
double-clicking, and you will see two files in a Finder window – the readme file,
and the iVGA client program.
FIGURE 266
When iVGA is running, the icon in the (OS X) Dock has a menu you can access by right-
clicking it:

Engaging Privacy Mode prevents the client display from appearing
accidentally on the TriCaster display when you don't want it to.

Keynote Mode allows the iVGA client to update the screen even if Keynote® is
running. (This also can be used with some games, though the framerate will
likely be only one frame per second.)

Hide the mouse cursor in output with the Hide Mouse option.

Drag the iVGA icon from the finder to
your Applications folder.

Run it by double-clicking the icon, and in
a moment or two the iVGA swirl will be
placed in your Dock, and an onscreen
dialog reporting 'iVGA Ready and
listening!'
When you roll your mouse over the Net 1 or
Net 2 monitors in TriCaster's All Monitors
tab, a triangular button appears next to the
Configure button (gear). The new source
(your 'Mac' desktop) will be listed in the
drop-down selection menu that opens when
you click the triangle.
Page | 273
