External audio connections and basic configuration were touched on back in Sections
3.5.1 and 3.8.1. TriCaster presents more precise control over individual audio
sources and outputs in a tabbed pane labeled Audio Mixer, found just below the main
Switcher.

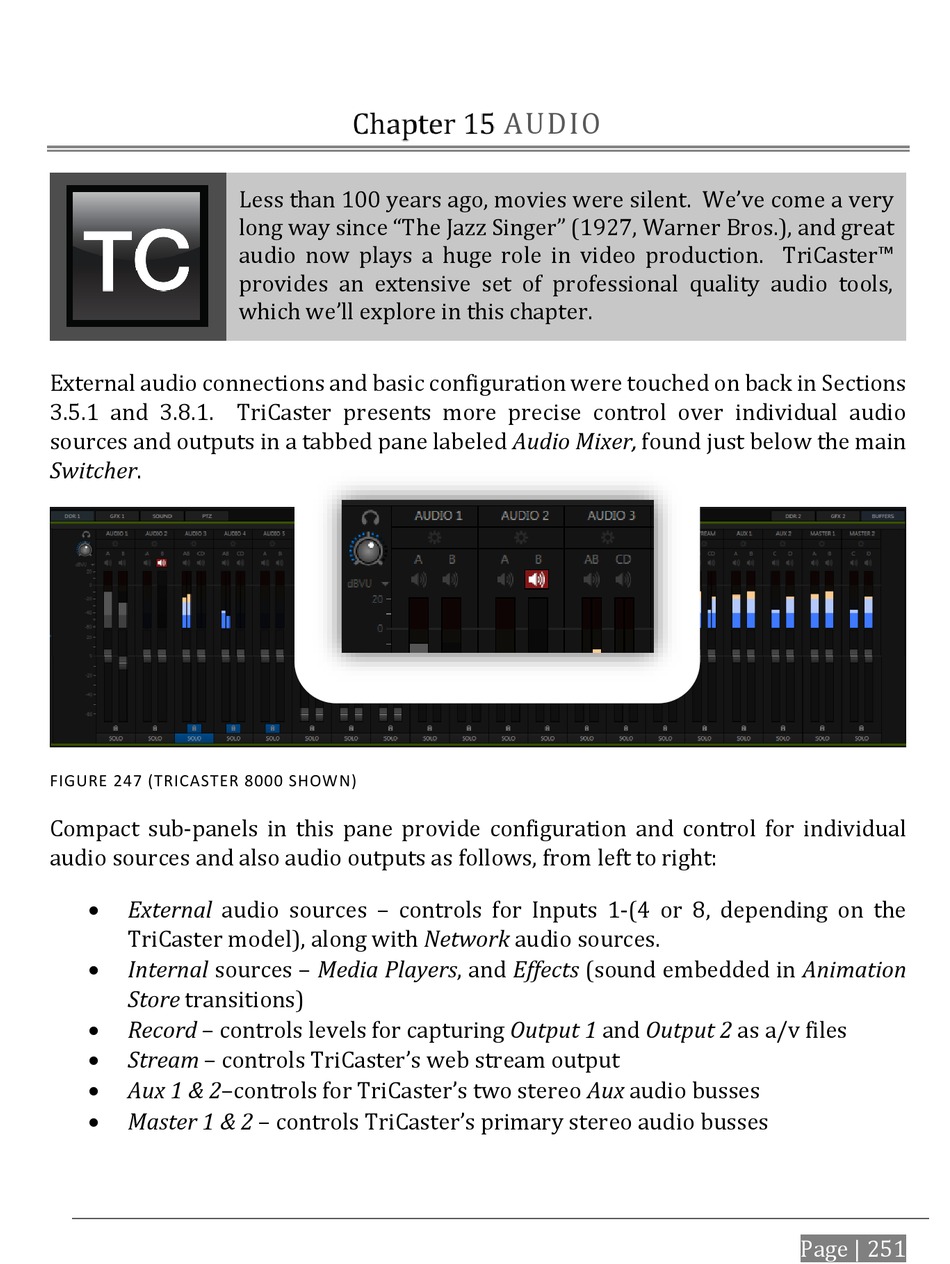

FIGURE 247 (TRICASTER 8000 SHOWN)
Compact sub-panels in this pane provide configuration and control for individual
audio sources and also audio outputs as follows, from left to right:
External audio sources – controls for Inputs 1-(4 or 8, depending on the
TriCaster model), along with Network audio sources.
Internal sources – Media Players, and Effects (sound embedded in Animation
Store transitions)
Record – controls levels for capturing Output 1 and Output 2 as a/v files
Stream – controls TriCaster's web stream output
Aux 1 & 2–controls for TriCaster's two stereo Aux audio busses
Master 1 & 2 – controls TriCaster's primary stereo audio busses
Less than 100 years ago, movies were silent. We've come a very
long way since "The Jazz Singer" (1927, Warner Bros.), and great
audio now plays a huge role in video production. TriCaster™
provides an extensive set of professional quality audio tools,
which we'll explore in this chapter.
AUDIO
Page | 251
