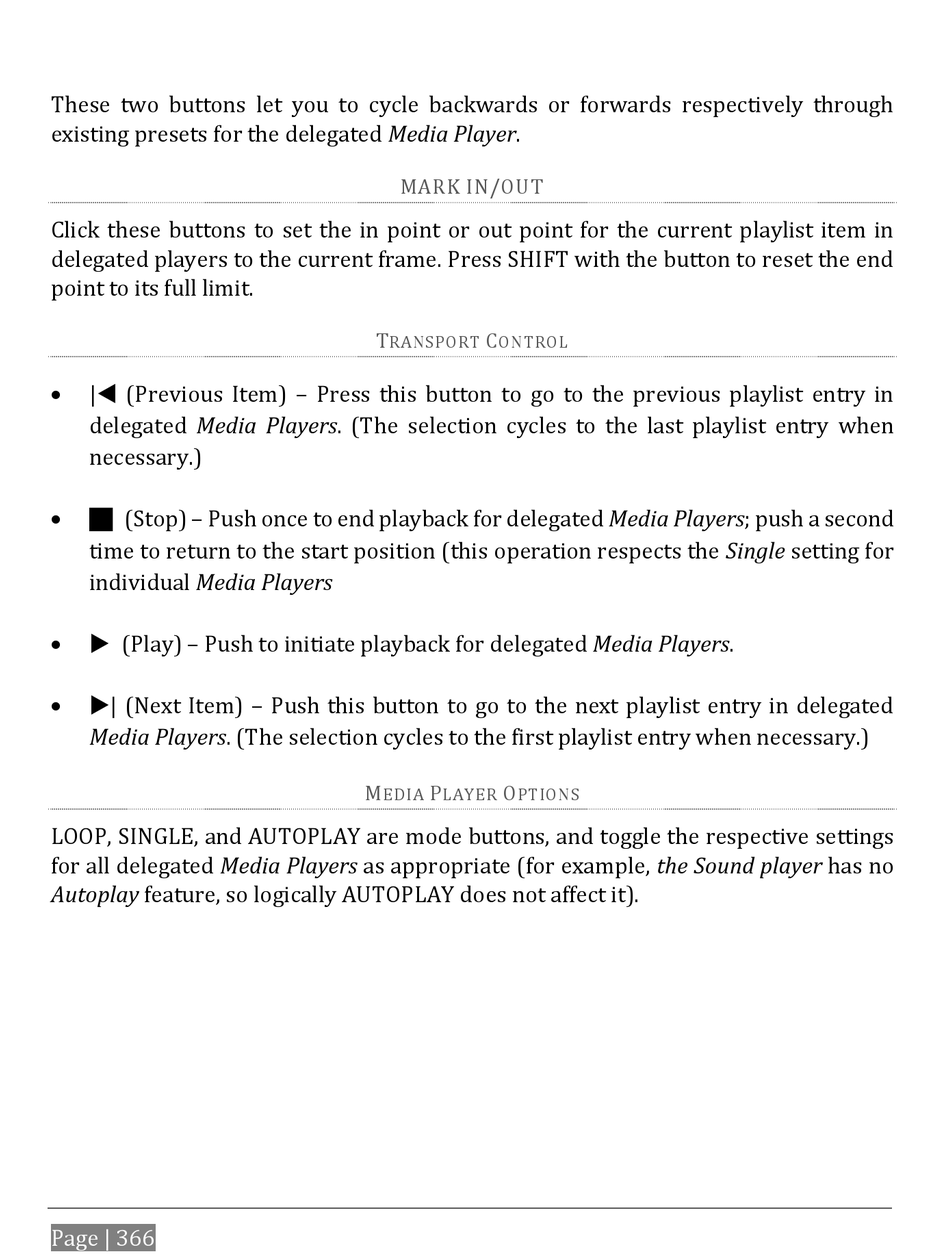

These two buttons let you to cycle backwards or forwards respectively through
existing presets for the delegated Media Player.
Click these buttons to set the in point or out point for the current playlist item in
delegated players to the current frame. Press SHIFT with the button to reset the end
point to its full limit.
| (Previous Item) – Press this button to go to the previous playlist entry in
delegated Media Players. (The selection cycles to the last playlist entry when
necessary.)
(Stop) – Push once to end playback for delegated Media Players; push a second
time to return to the start position (this operation respects the Single setting for
individual Media Players
(Play) – Push to initiate playback for delegated Media Players.
| (Next Item) – Push this button to go to the next playlist entry in delegated
Media Players. (The selection cycles to the first playlist entry when necessary.)
LOOP, SINGLE, and AUTOPLAY are mode buttons, and toggle the respective settings
for all delegated Media Players as appropriate (for example, the Sound player has no
Autoplay feature, so logically AUTOPLAY does not affect it).
Page | 366
MARK IN/OUT
T
C
RANSPORT
ONTROL
M
P
O
EDIA
LAYER
PTIONS
