5. In the file pane at right, click the thumbnail icon named Center.Liveset in the
World Update group, and then click OK at the bottom of the Media Browser.
6. Select DDR 2 as the source for Input B.
The icon in the M/E tab and the label will update, showing that the current LiveSet is
now World Update, Center.

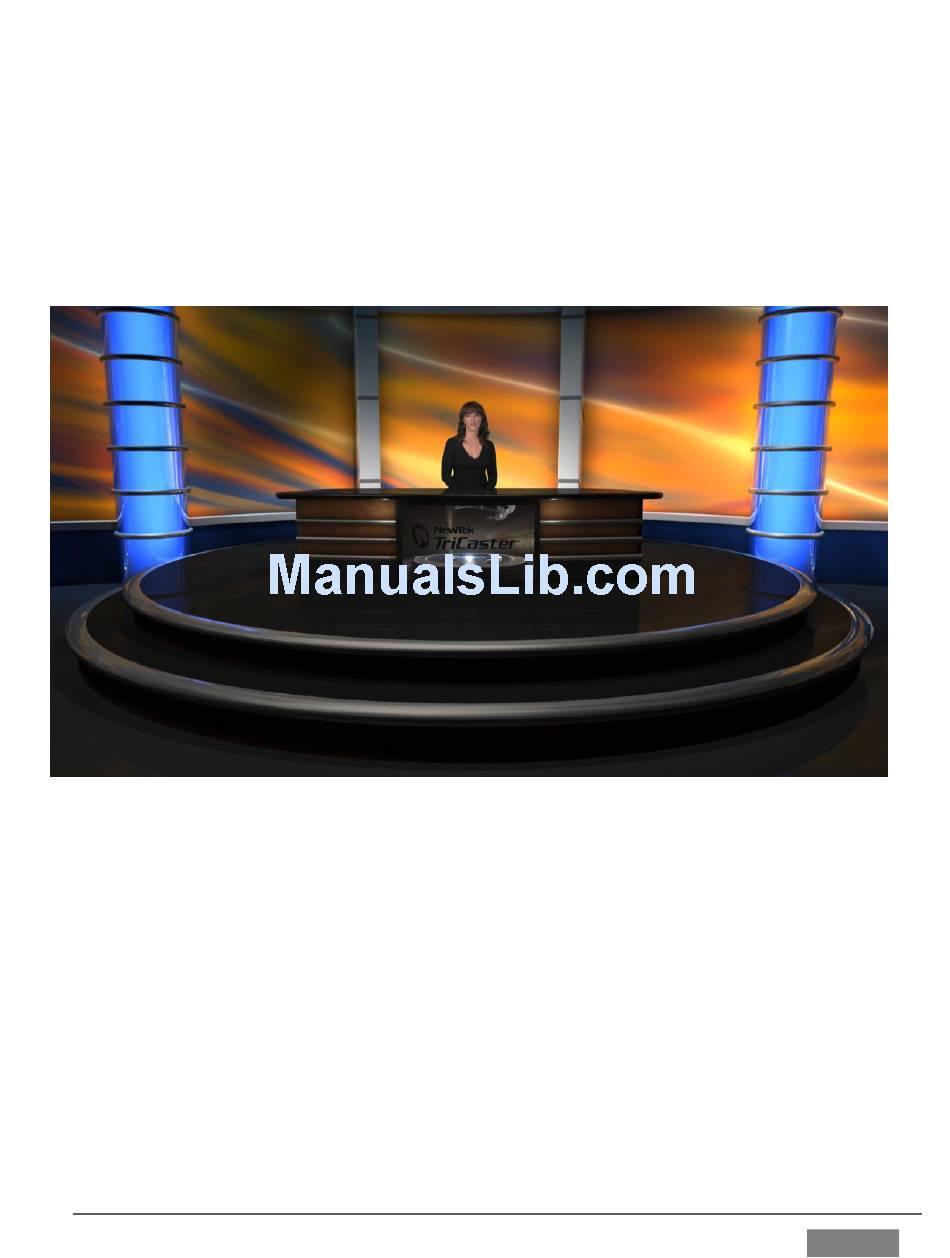

FIGURE 83
Assuming that you still have LiveMatte enabled for the DDR, M/E 1's input A selector
set to DDR 1 and input B set to DDR 2, a little adjustment in the Positioner for input A
is all that it should take to produce a result similar to Figure 83 on Preview.
Input A is the primary input for the LiveSet, while input B serves as a secondary source
– in this case assigned to the virtual desk-front monitor.
7. Enable the BKGD delegate (if necessary) in the Switcher's Transition control
group, and click the Auto button beneath the T-bar.
