TriCaster's live production features are all available from its unique Live Desktop,
which in many ways mimics familiar production equipment. However, the Live
Desktop provides far more functionality than similar single-purpose devices, all in one
integrated environment.

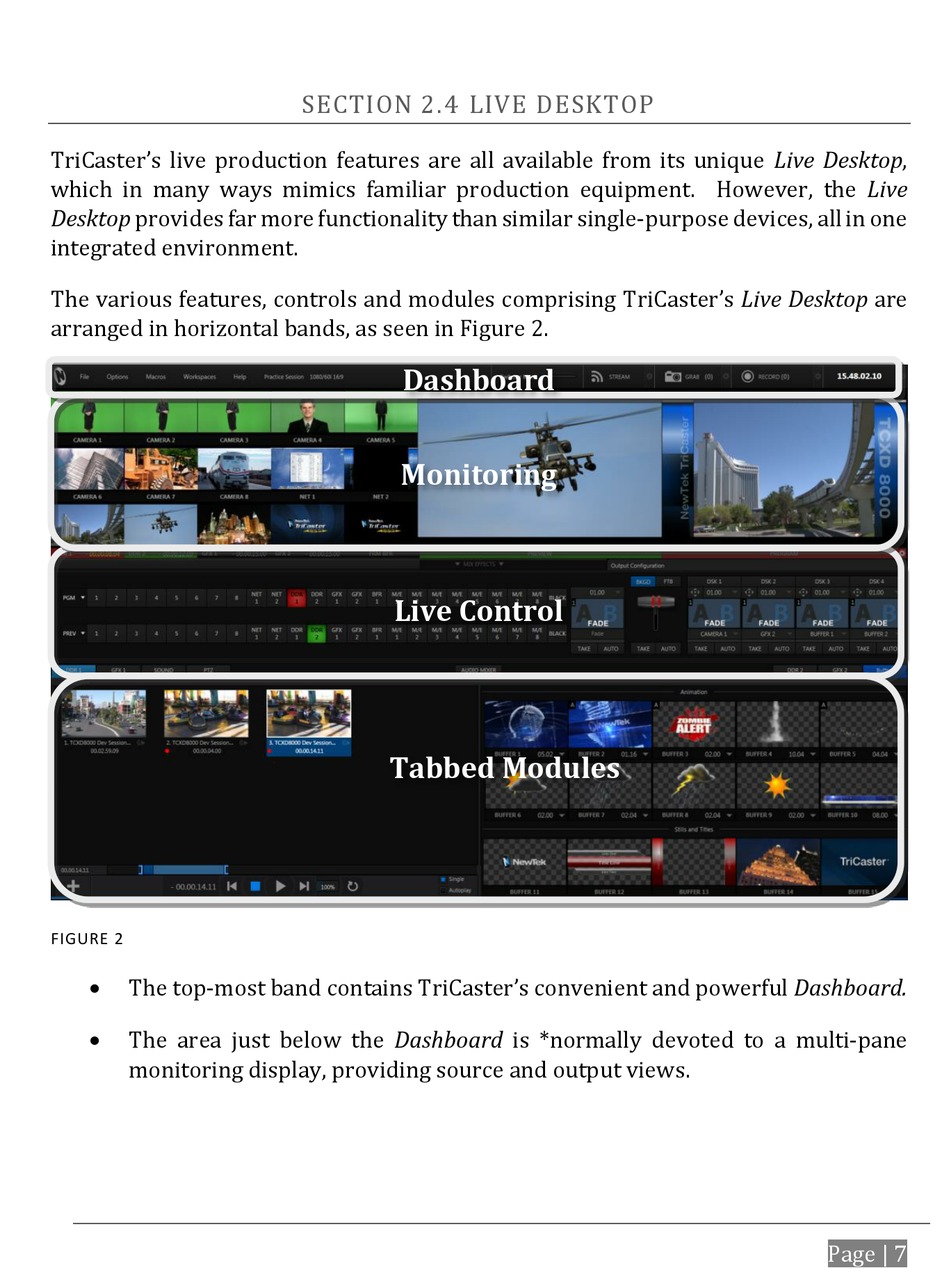

The various features, controls and modules comprising TriCaster's Live Desktop are
arranged in horizontal bands, as seen in Figure 2.
FIGURE 2
The top-most band contains TriCaster's convenient and powerful Dashboard.
The area just below the Dashboard is *normally devoted to a multi-pane
monitoring display, providing source and output views.
SECTION 2.4 LIVE DESKTOP
Dashboard
Monitoring
Live Control
Tabbed Modules
Page | 7
- Quick Links:
- A/V Input and Output
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the TriCaster Mini and is the answer not in the manual?
Questions and answers
Can the switcher have a background still with PPT slides over top rightside of frame, and then have live camera feed on left?
Yes, the NewTek TriCaster Mini can display a background still with PowerPoint slides on the right side of the frame and a live camera feed on the left. It supports compositing live and video-on-demand inputs, including PowerPoint slides from a connected computer. The system allows for chroma key operations and mixing multiple video sources, enabling such a layout.
This answer is automatically generated
my tricaster only has one KEY option and two DSK options and 4 Mix Effect options. is there a way to add more of these items into my tricaster layout?
The TriCaster Mini includes Key layers in M/Es, which function similarly to Downstream Key (DSK) layers but are embedded upstream in the Mix Effect (M/E) output. However, the provided context does not mention the ability to add more KEY, DSK, or Mix Effect options beyond what is already available in the system.
This answer is automatically generated
Thank you for answering my question. There is a buzz on the output of our Tricaster410. Not sure why this is happening now.
A possible cause of a buzz or distortion on the output of a NewTek TriCaster Mini could be incorrect audio gain settings in the Output Configuration. Specifically, the gain controls for STREAM 1 and STREAM 2 may need to be adjusted. Setting the gain to -20 can eliminate distortion and align the output level with the TriCaster MASTER.
This answer is automatically generated
