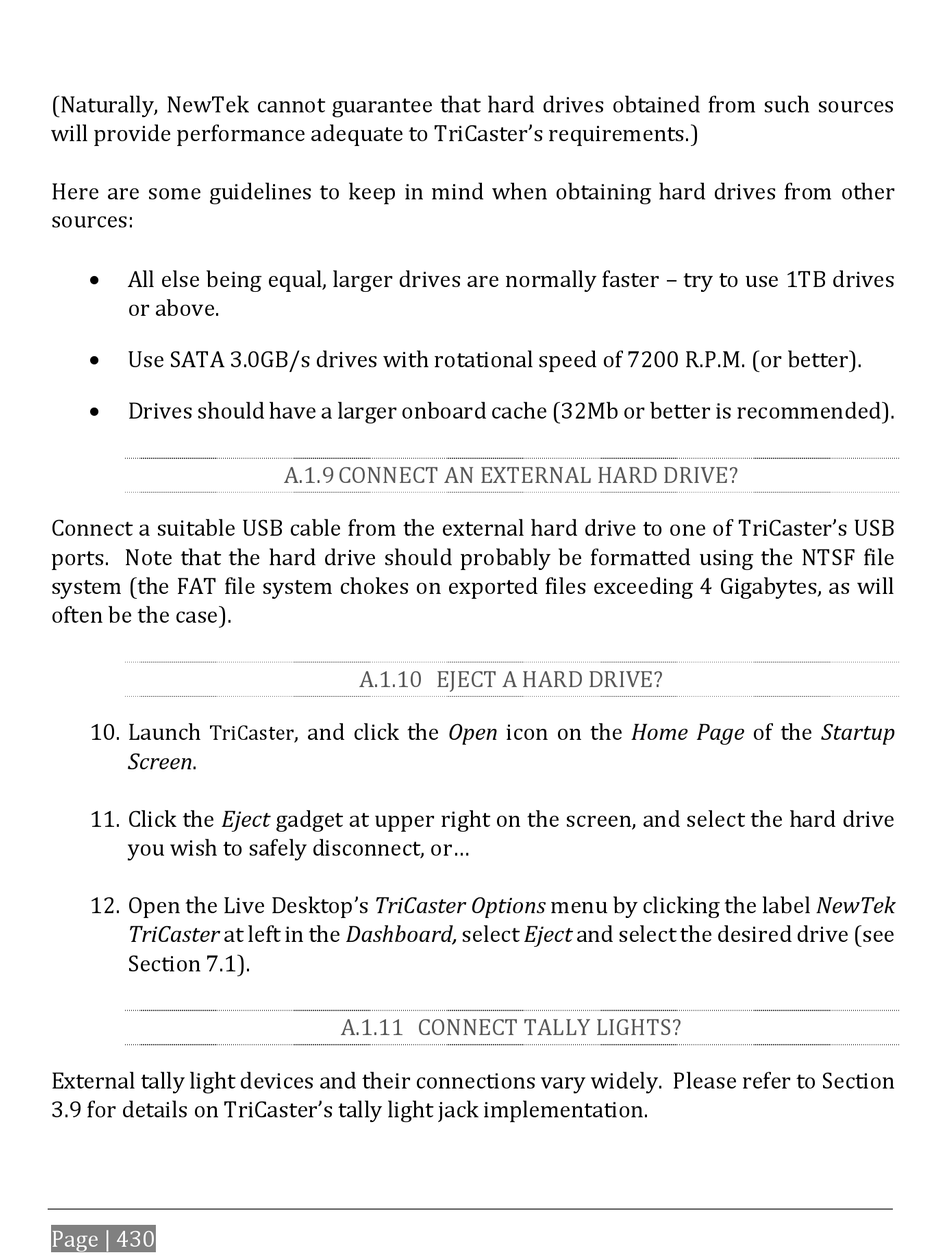

(Naturally, NewTek cannot guarantee that hard drives obtained from such sources
will provide performance adequate to TriCaster's requirements.)
Here are some guidelines to keep in mind when obtaining hard drives from other
sources:

All else being equal, larger drives are normally faster – try to use 1TB drives
or above.

Use SATA 3.0GB/s drives with rotational speed of 7200 R.P.M. (or better).

Drives should have a larger onboard cache (32Mb or better is recommended).
Connect a suitable USB cable from the external hard drive to one of TriCaster's USB
ports. Note that the hard drive should probably be formatted using the NTSF file
system (the FAT file system chokes on exported files exceeding 4 Gigabytes, as will
often be the case).
10. Launch
TriCaster
Screen.
11. Click the Eject gadget at upper right on the screen, and select the hard drive
you wish to safely disconnect, or...
12. Open the Live Desktop's TriCaster Options menu by clicking the label NewTek
TriCaster at left in the Dashboard, select Eject and select the desired drive (see
Section 7.1).
External tally light devices and their connections vary widely. Please refer to Section
3.9 for details on TriCaster's tally light jack implementation.
Page | 430
A.1.9 CONNECT AN EXTERNAL HARD DRIVE?
A.1.10 EJECT A HARD DRIVE?
, and click the Open icon on the Home Page of the Startup
A.1.11 CONNECT TALLY LIGHTS?
