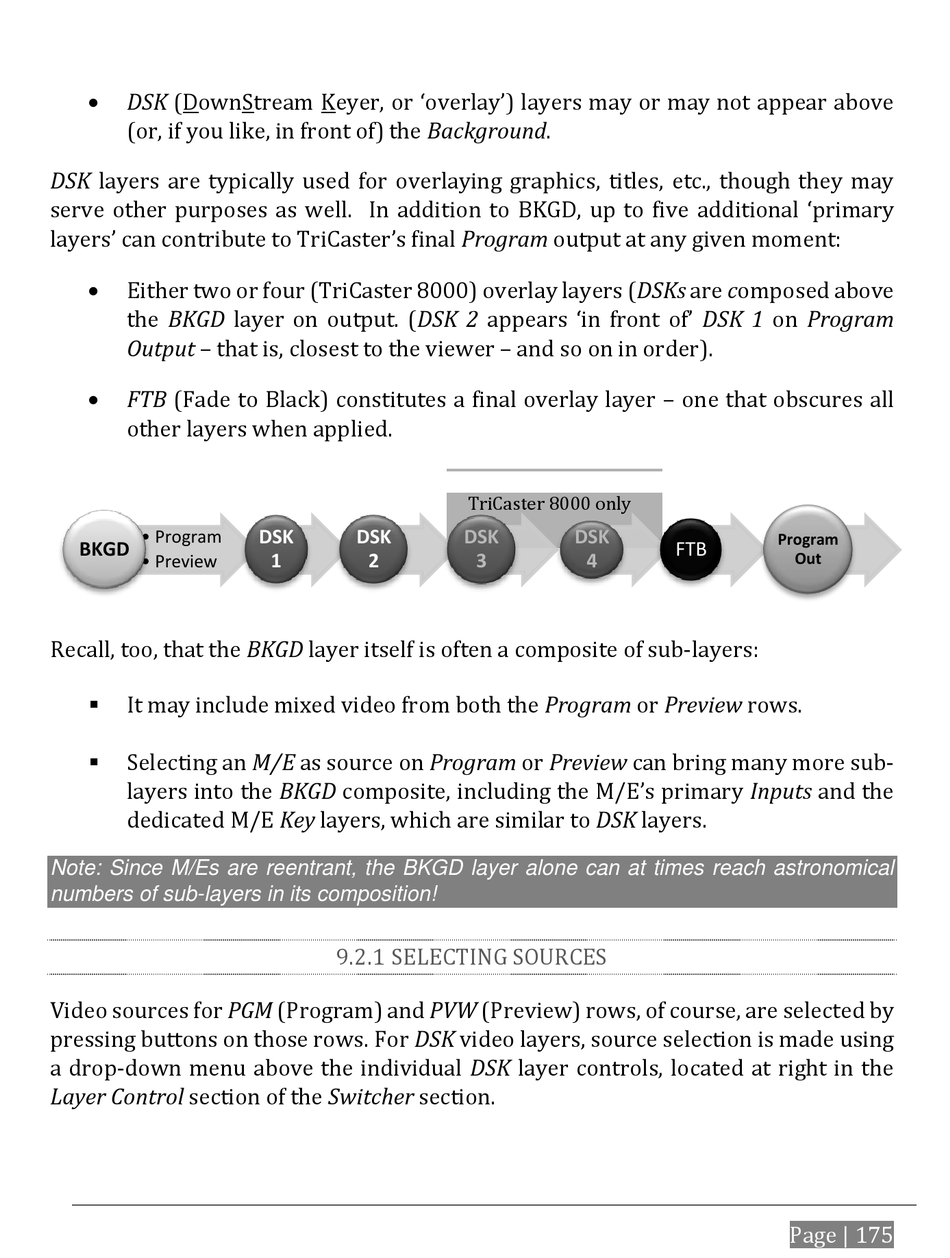

DSK (DownStream Keyer, or 'overlay') layers may or may not appear above
(or, if you like, in front of) the Background.
DSK layers are typically used for overlaying graphics, titles, etc., though they may
serve other purposes as well. In addition to BKGD, up to five additional 'primary
layers' can contribute to TriCaster's final Program output at any given moment:
Either two or four (TriCaster 8000) overlay layers (DSKs are composed above
the BKGD layer on output. (DSK 2 appears 'in front of' DSK 1 on Program
Output – that is, closest to the viewer – and so on in order).
FTB (Fade to Black) constitutes a final overlay layer – one that obscures all
other layers when applied.
• Program
BKGD
• Preview
Recall, too, that the BKGD layer itself is often a composite of sub-layers:
It may include mixed video from both the Program or Preview rows.
Selecting an M/E as source on Program or Preview can bring many more sub-
layers into the BKGD composite, including the M/E's primary Inputs and the
dedicated M/E Key layers, which are similar to DSK layers.
Note: Since M/Es are reentrant, the BKGD layer alone can at times reach astronomical
numbers of sub-layers in its composition!
Video sources for PGM (Program) and PVW (Preview) rows, of course, are selected by
pressing buttons on those rows. For DSK video layers, source selection is made using
a drop-down menu above the individual DSK layer controls, located at right in the
Layer Control section of the Switcher section.
DSK
DSK
1
2
9.2.1 SELECTING SOURCES
TriCaster 8000 only
DSK
DSK
3
4
Program
FTB
Out
Page | 175
