While primarily designed to support the 4-input TriCaster models, this unit and its
similar sibling have been extended capabilities that allow them to work with any Pro
model, even including TriCaster 860 and 8000. This makes them perfect travelling
companions or backup units for use with the entire TriCaster Pro lineup.

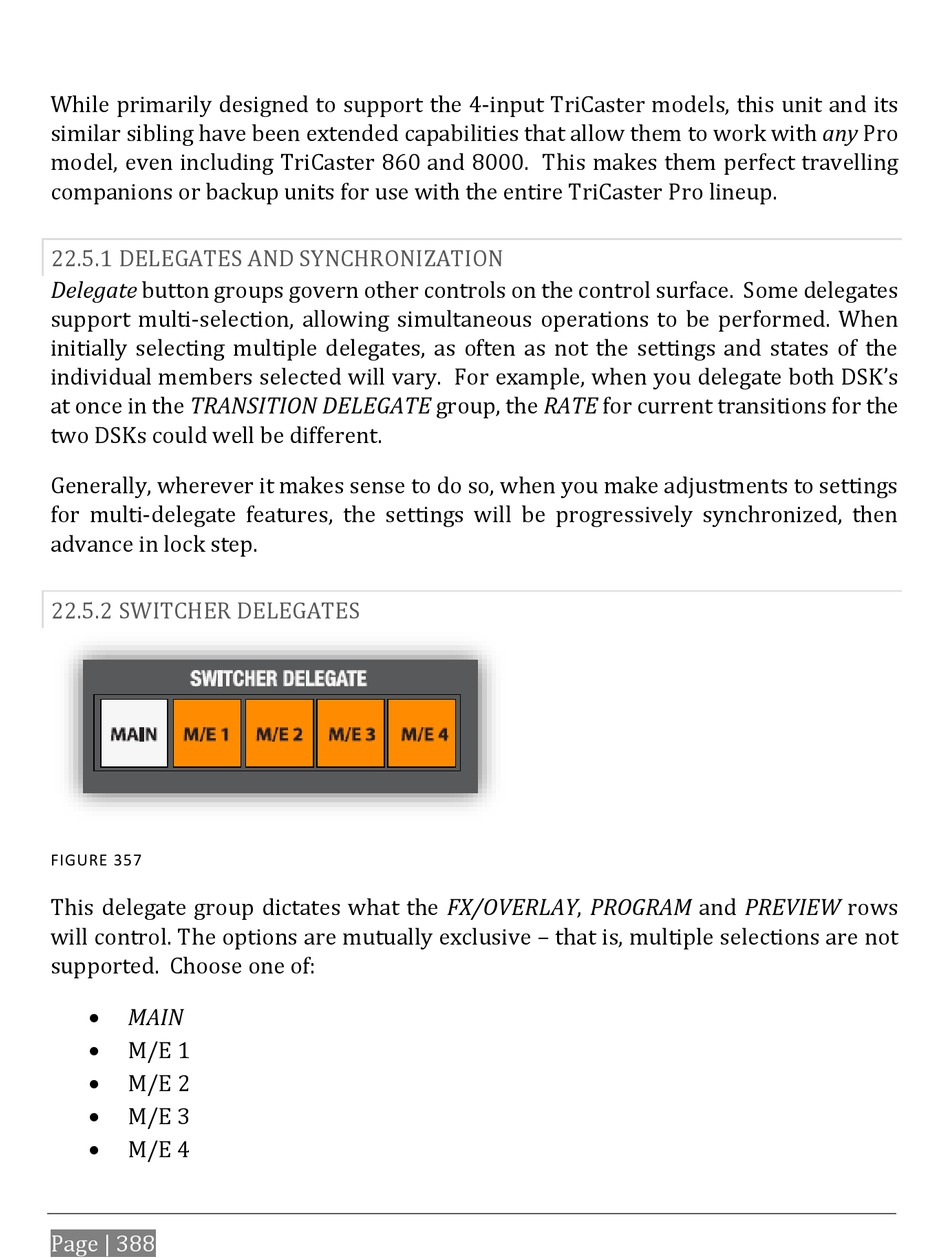

22.5.1 DELEGATES AND SYNCHRONIZATION
Delegate button groups govern other controls on the control surface. Some delegates
support multi-selection, allowing simultaneous operations to be performed. When
initially selecting multiple delegates, as often as not the settings and states of the
individual members selected will vary. For example, when you delegate both DSK's
at once in the TRANSITION DELEGATE group, the RATE for current transitions for the
two DSKs could well be different.
Generally, wherever it makes sense to do so, when you make adjustments to settings
for multi-delegate features, the settings will be progressively synchronized, then
advance in lock step.
22.5.2 SWITCHER DELEGATES
FIGURE 357
This delegate group dictates what the FX/OVERLAY, PROGRAM and PREVIEW rows
will control. The options are mutually exclusive – that is, multiple selections are not
supported. Choose one of:
MAIN
M/E 1
M/E 2
M/E 3
M/E 4
Page | 388
