controlling; or – from another perspective – which video layers the selected source is
assigned to.
The AUX OUT button corresponds to the Output 2 source, while FX controls Switcher
or M/E rows delegated to the Green (FX) group.
Note: When possible, all related button selections (and illumination state) are updated to
show their current state when new delegate selections are first made. This is true for all
delegate groups.
(An exception is made when newly selecting multiple delegates with control settings that
do not initially match. For example, if DSK1 and DSK 2 have different sources assigned
and are newly multi-selected in the delegate group, no buttons on the UTIL row will light.)

22.4.5 TRANSITION GROUP

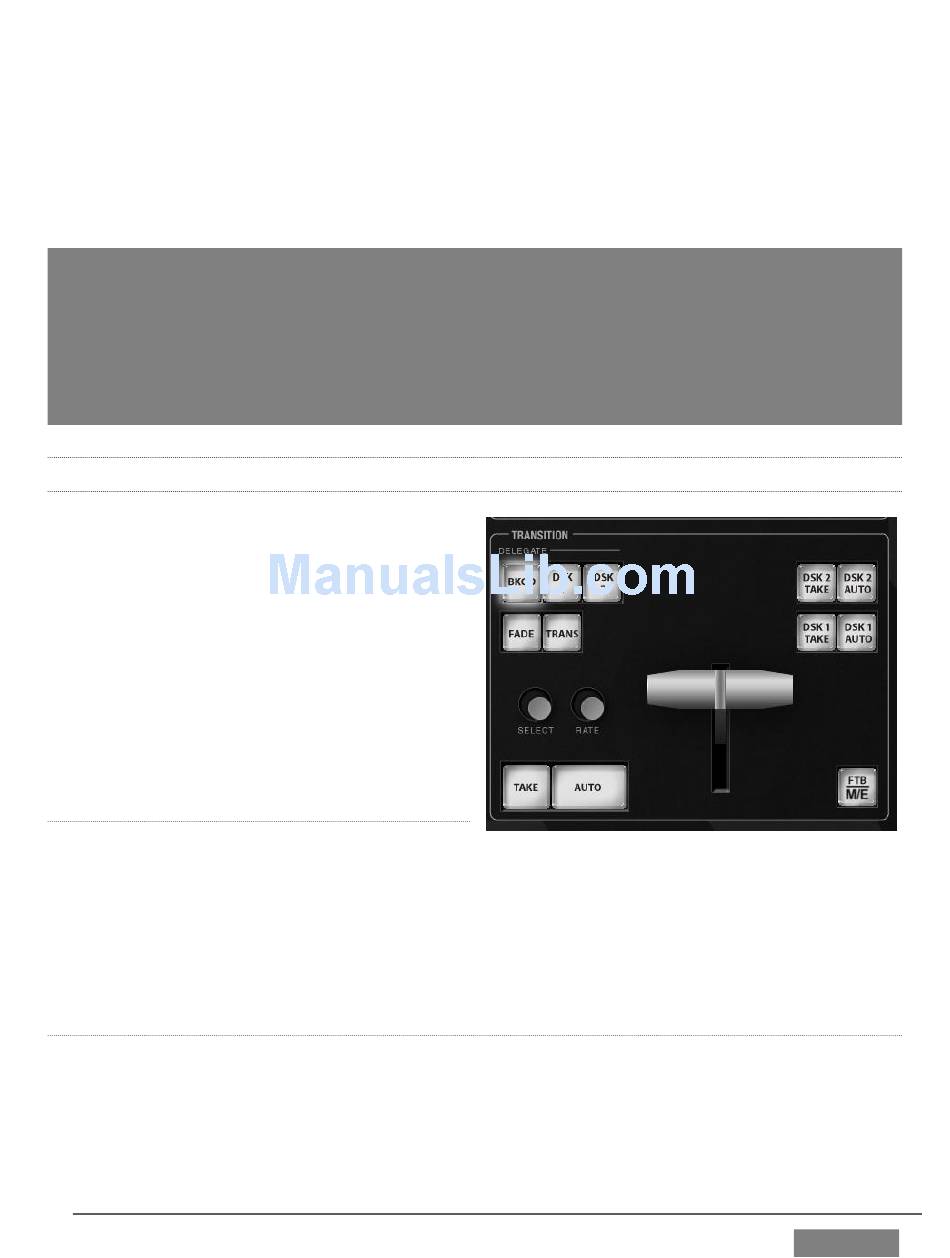

The controls in this group (Figure 348)
are analogous to those in the eponymous
group in user interface, performing the
same functions in much the same manner.
(In one deviation from the Live Desktop,
switcher layer positioning is provided by
a single, shared set of Positioner tools,
discussed later.)
T D
RANSITION ELEGATE
As on the Live Desktop, active delegate
FIGURE 348
buttons remain lit. Multiple selections
can be performed by pressing one or more buttons at the same time. DELEGATE
buttons determine what video layers the main Take, Auto, and T-Bar affect, and the
scope of the Select and Rate knobs.
M/E | FTB
As a convenience, it is possible to re-purpose the entire TRANSITION control group
to control M/Es rather than main Switcher controls.
