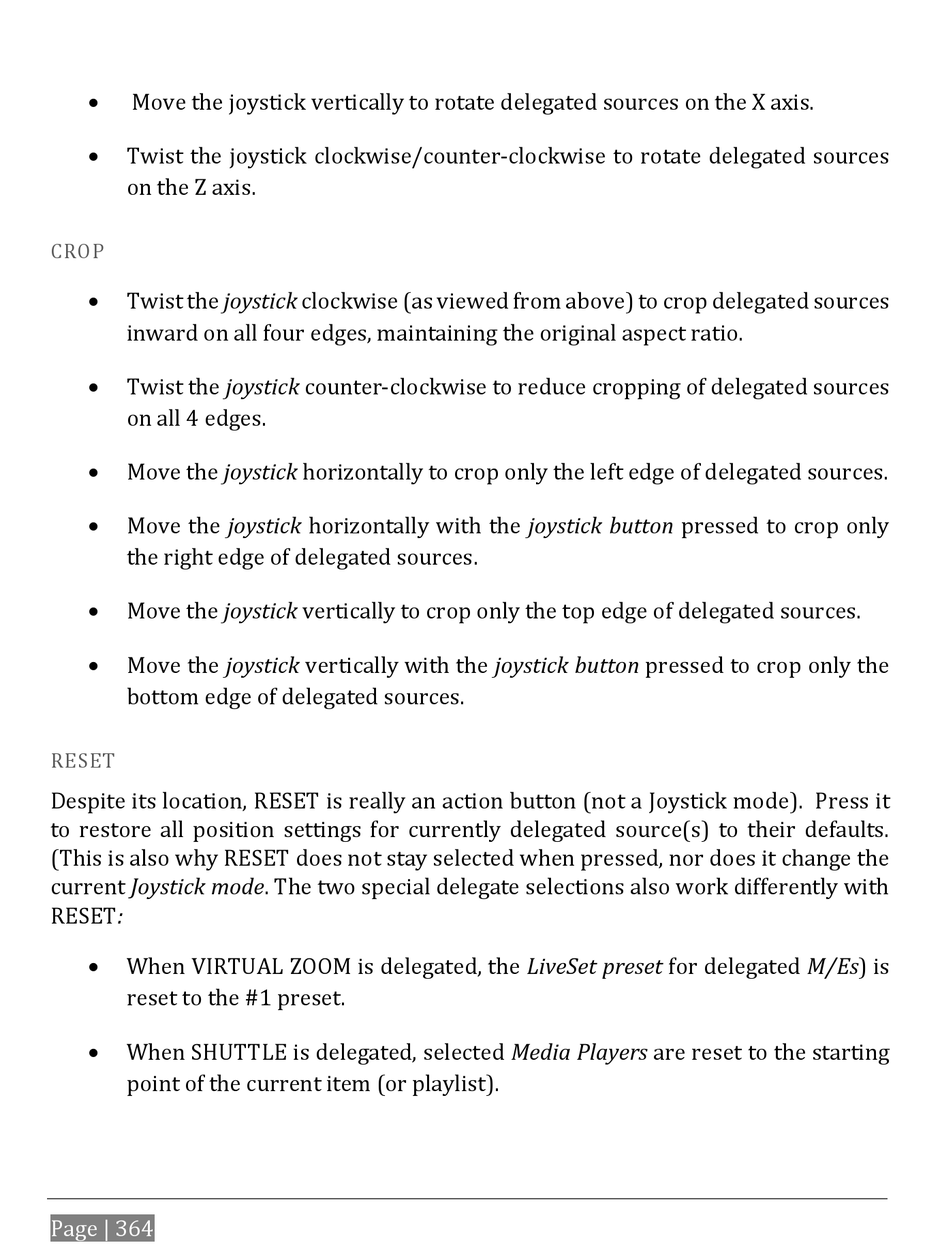

Move the joystick vertically to rotate delegated sources on the X axis.

Twist the joystick clockwise/counter-clockwise to rotate delegated sources
on the Z axis.
CROP

Twist the joystick clockwise (as viewed from above) to crop delegated sources
inward on all four edges, maintaining the original aspect ratio.

Twist the joystick counter-clockwise to reduce cropping of delegated sources
on all 4 edges.

Move the joystick horizontally to crop only the left edge of delegated sources.

Move the joystick horizontally with the joystick button pressed to crop only
the right edge of delegated sources.

Move the joystick vertically to crop only the top edge of delegated sources.

Move the joystick vertically with the joystick button pressed to crop only the
bottom edge of delegated sources.
RESET
Despite its location, RESET is really an action button (not a Joystick mode). Press it
to restore all position settings for currently delegated source(s) to their defaults.
(This is also why RESET does not stay selected when pressed, nor does it change the
current Joystick mode. The two special delegate selections also work differently with
RESET:

When VIRTUAL ZOOM is delegated, the LiveSet preset for delegated M/Es) is
reset to the #1 preset.

When SHUTTLE is delegated, selected Media Players are reset to the starting
point of the current item (or playlist).
