Focus: When Auto is off, and with SHIFT + CTRL both pressed, twist the
joystick clockwise or counter-clockwise.
o Auto Focus toggle: With SHIFT + CTRL held down, press the joystick
button.

Preset selection:
o Use CTRL + LIVESET SHOT (1-4); add SHIFT to the above for presets
(5-8).

Press CTRL + LIVESET ZOOM RATE to adjust the camera's Animation Speed.

Hold down SHIFT and press the top joystick button to update the current PTZ
preset (position, zoom and thumbnail icon).
SECTION 22.5 TRICASTER™ 40 CS & TRICASTER MINI CS

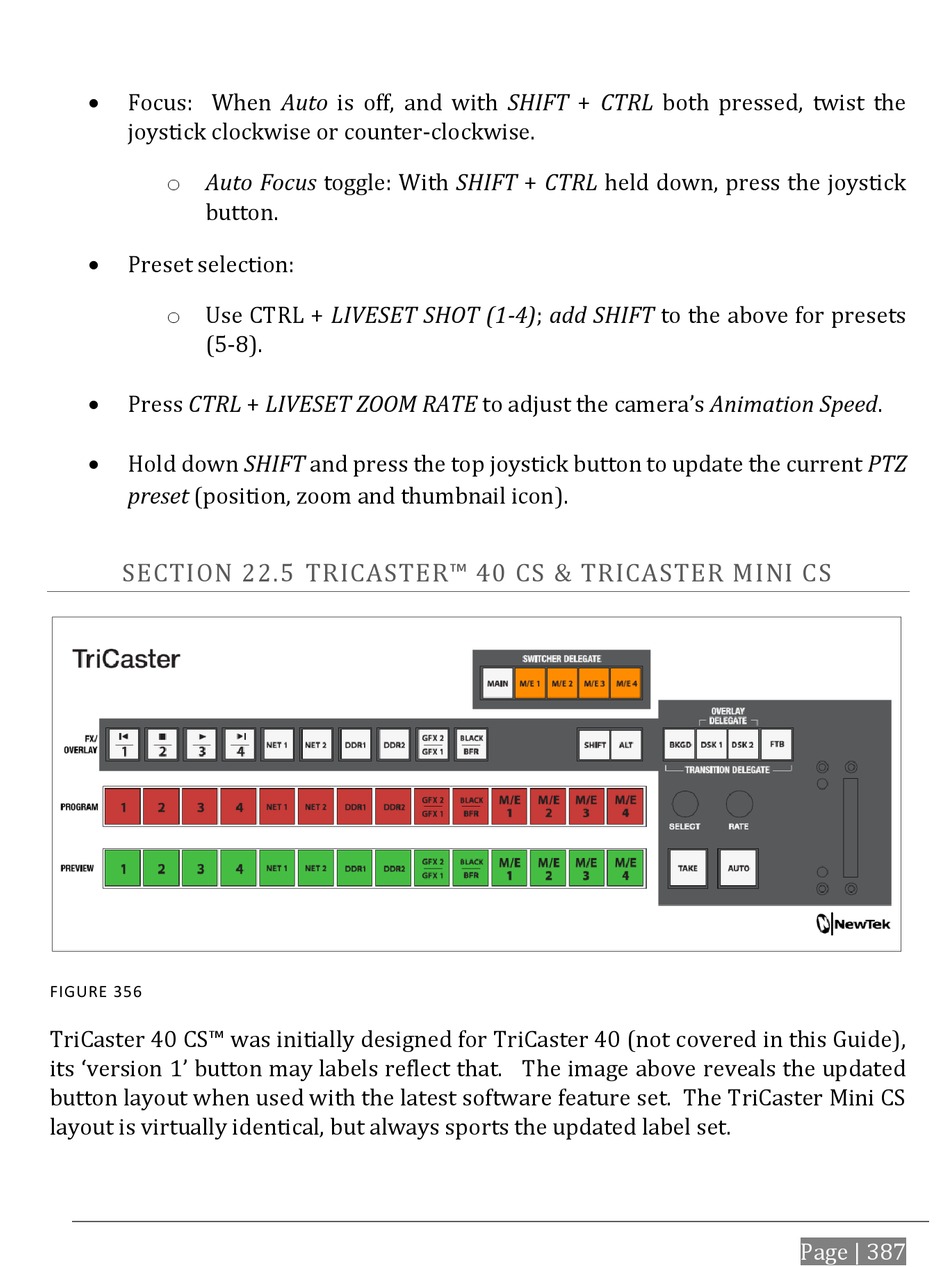

FIGURE 356
TriCaster 40 CS™ was initially designed for TriCaster 40 (not covered in this Guide),
its 'version 1' button may labels reflect that. The image above reveals the updated
button layout when used with the latest software feature set. The TriCaster Mini CS
layout is virtually identical, but always sports the updated label set.
Page | 387
