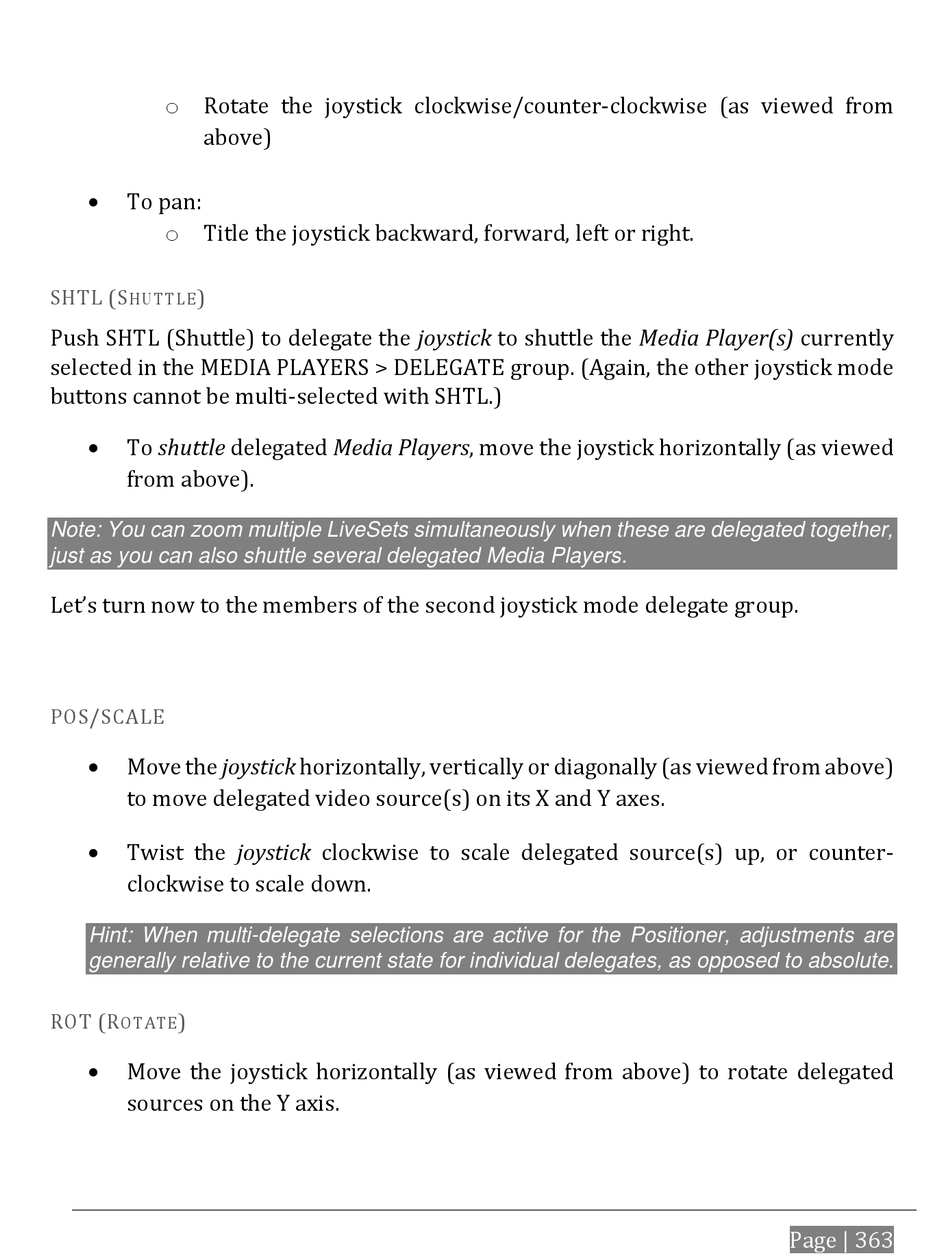

o Rotate the joystick clockwise/counter-clockwise (as viewed from
above)
To pan:
o Title the joystick backward, forward, left or right.
SHTL (S
)
HUTTLE
Push SHTL (Shuttle) to delegate the joystick to shuttle the Media Player(s) currently
selected in the MEDIA PLAYERS > DELEGATE group. (Again, the other joystick mode
buttons cannot be multi-selected with SHTL.)
To shuttle delegated Media Players, move the joystick horizontally (as viewed
from above).
Note: You can zoom multiple LiveSets simultaneously when these are delegated together,
just as you can also shuttle several delegated Media Players.
Let's turn now to the members of the second joystick mode delegate group.
POS/SCALE
Move the joystick horizontally, vertically or diagonally (as viewed from above)
to move delegated video source(s) on its X and Y axes.
Twist the joystick clockwise to scale delegated source(s) up, or counter-
clockwise to scale down.
Hint: When multi-delegate selections are active for the Positioner, adjustments are
generally relative to the current state for individual delegates, as opposed to absolute.
ROT (R
)
OTATE
Move the joystick horizontally (as viewed from above) to rotate delegated
sources on the Y axis.
Page | 363
