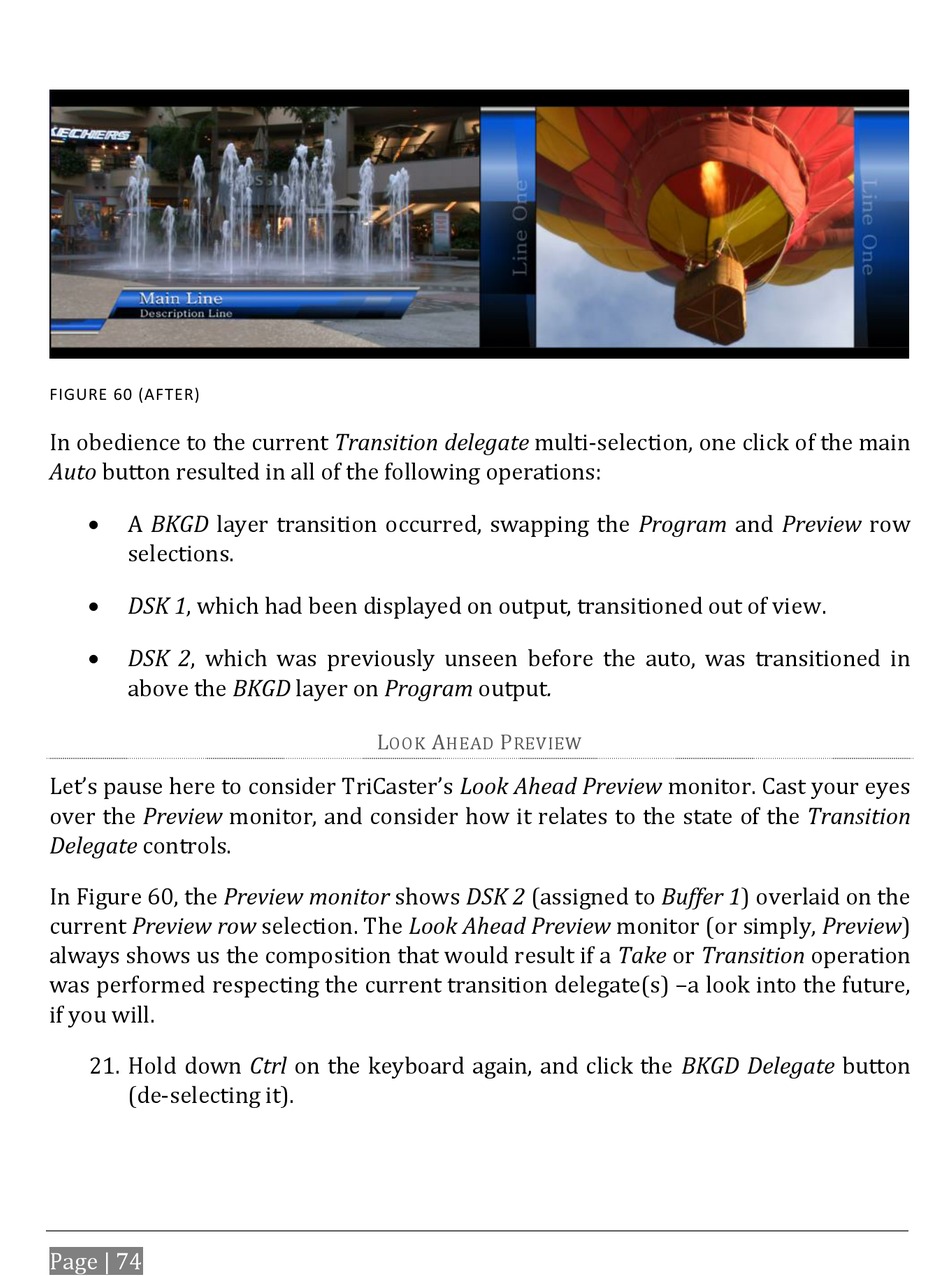

FIGURE 60 (AFTER)
In obedience to the current Transition delegate multi-selection, one click of the main
Auto button resulted in all of the following operations:
A BKGD layer transition occurred, swapping the Program and Preview row
selections.
DSK 1, which had been displayed on output, transitioned out of view.
DSK 2, which was previously unseen before the auto, was transitioned in
above the BKGD layer on Program output.
Let's pause here to consider TriCaster's Look Ahead Preview monitor. Cast your eyes
over the Preview monitor, and consider how it relates to the state of the Transition
Delegate controls.
In Figure 60, the Preview monitor shows DSK 2 (assigned to Buffer 1) overlaid on the
current Preview row selection. The Look Ahead Preview monitor (or simply, Preview)
always shows us the composition that would result if a Take or Transition operation
was performed respecting the current transition delegate(s) –a look into the future,
if you will.
21. Hold down Ctrl on the keyboard again, and click the BKGD Delegate button
(de-selecting it).
Page | 74
L
A
P
OOK
HEAD
REVIEW
