NewTek TriCaster Mini User Manual page 111

7. Select GFX 1 as the source for Key 1 in the M/E tab, and display the corresponding
overlay channel by clicking the Auto button below).

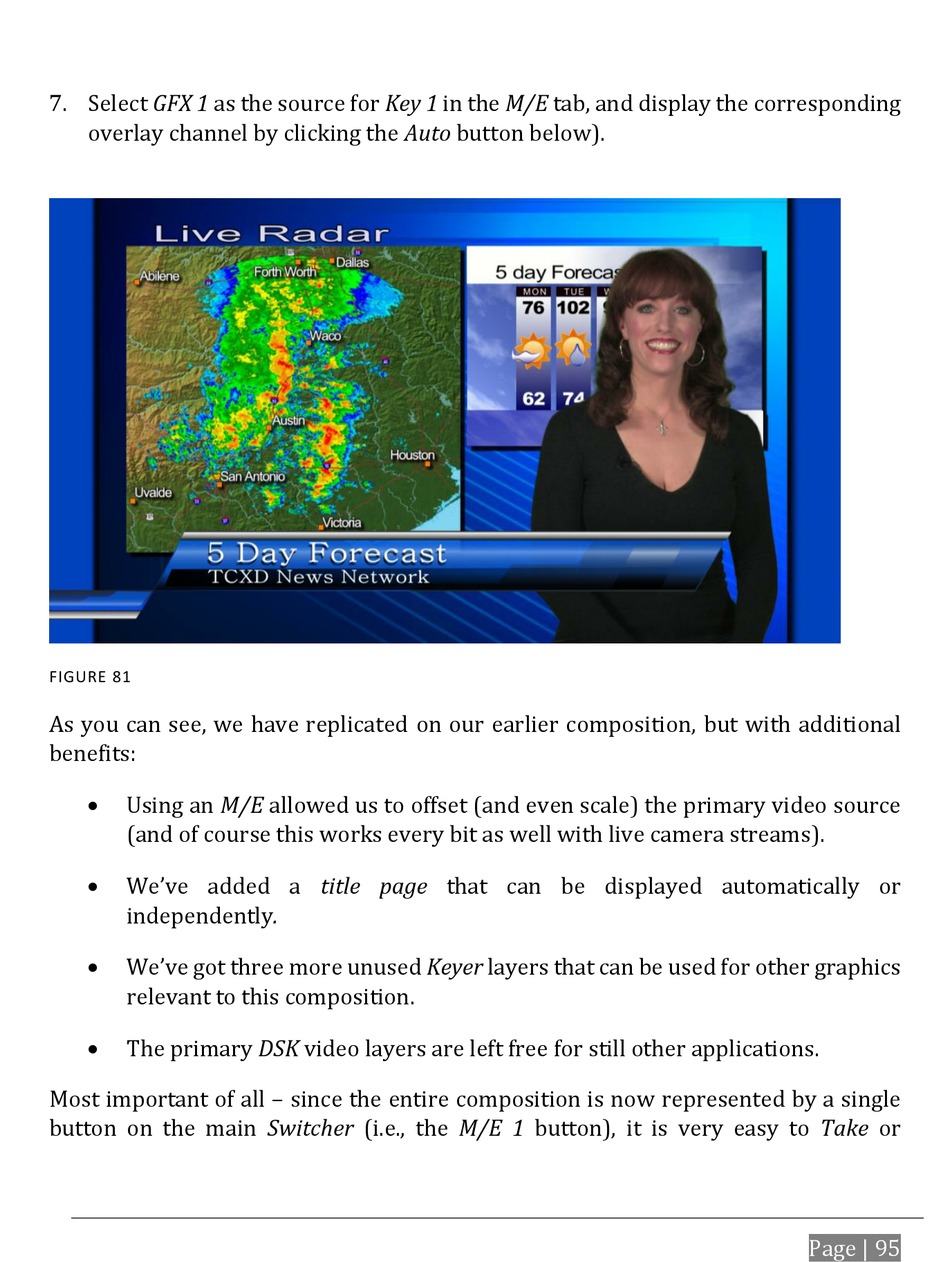

FIGURE 81
As you can see, we have replicated on our earlier composition, but with additional
benefits:

Using an M/E allowed us to offset (and even scale) the primary video source
(and of course this works every bit as well with live camera streams).

We've added a title page that can be displayed automatically or
independently.

We've got three more unused Keyer layers that can be used for other graphics
relevant to this composition.

The primary DSK video layers are left free for still other applications.
Most important of all – since the entire composition is now represented by a single
button on the main Switcher (i.e., the M/E 1 button), it is very easy to Take or
Page | 95
