576/25i (Y/C)
•
PAL (S-Video) analog format , standard definition, interlaced
• 720x576 pixels, 4:3 picture aspect or anamorphic 16:9 picture aspect
• Connected to TriCaster by Y and Pb input connectors
2
576/25i (Composite)
• PAL analog format , standard definition, interlaced
• 720x576 pixels, 4:3 picture aspect or anamorphic 16:9 picture aspect
• Connected to TriCaster by Y input connector
The 'telecine' option removes '2:3 pull-up' in output from cameras claiming 24PsF
1
but actually supplying video at 30 fps (to make it suitable for 24P use sessions).
Multi-standard TriCaster PAL connection type
2
TriCaster optionally allows one or more neighboring pairs of video inputs to be
combined as a single 'video + alpha' channel (sometimes also referred to as "fill and
matte").
The ability to configure one input as the alpha
channel source for another is absolutely
invaluable for installations employing video
feeds
from
high
chromakeying systems (such as Chyron® and
Ultimatte® ).

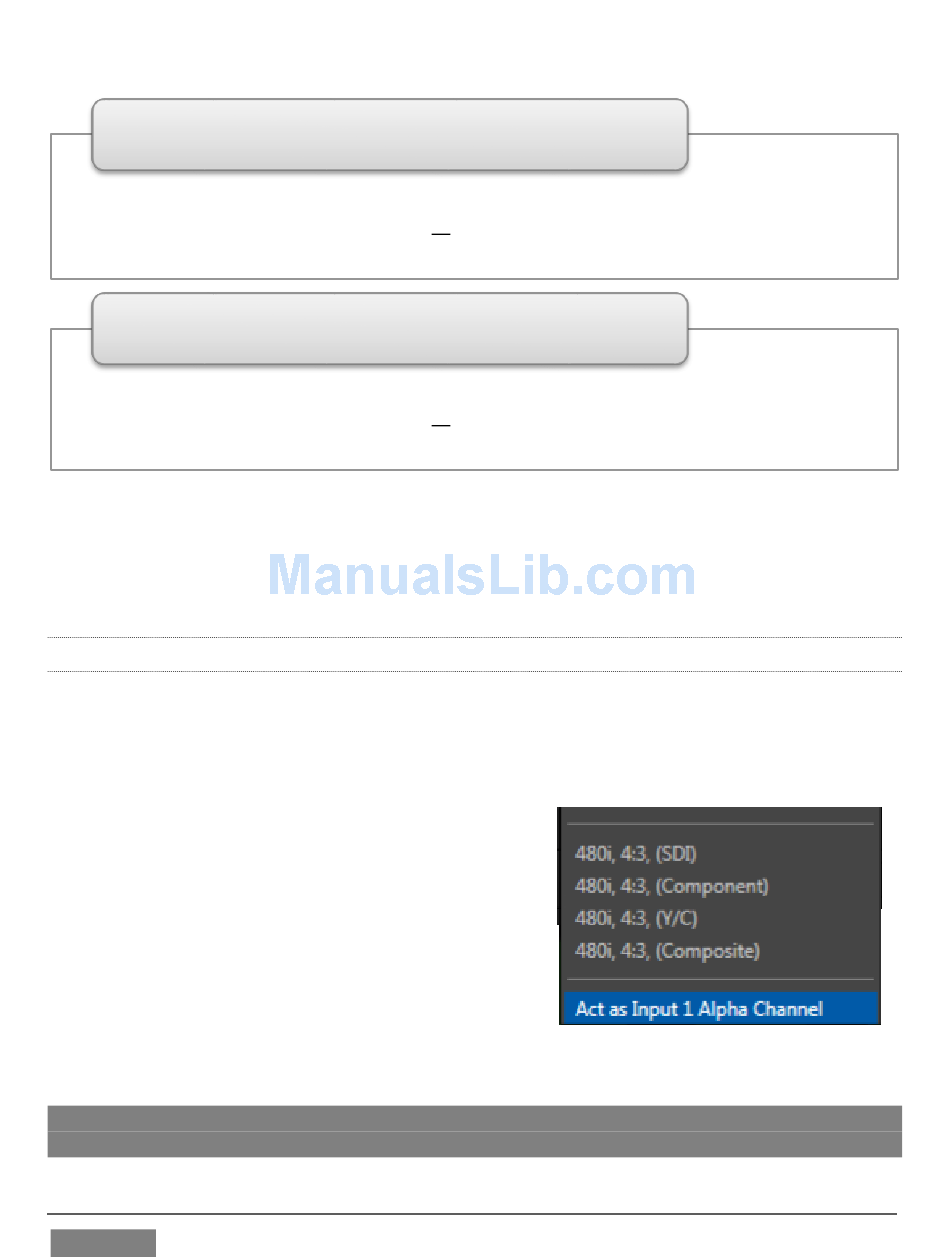

To use this feature, select Act as Alpha Channel
for Input (#) as the Connection Type in the Input
Configuration panel for an even-numbered input.
Note: The input configuration (video format and connection type) for the alpha input is
automatically configured to match the fill source it is paired with.
Page | 158
