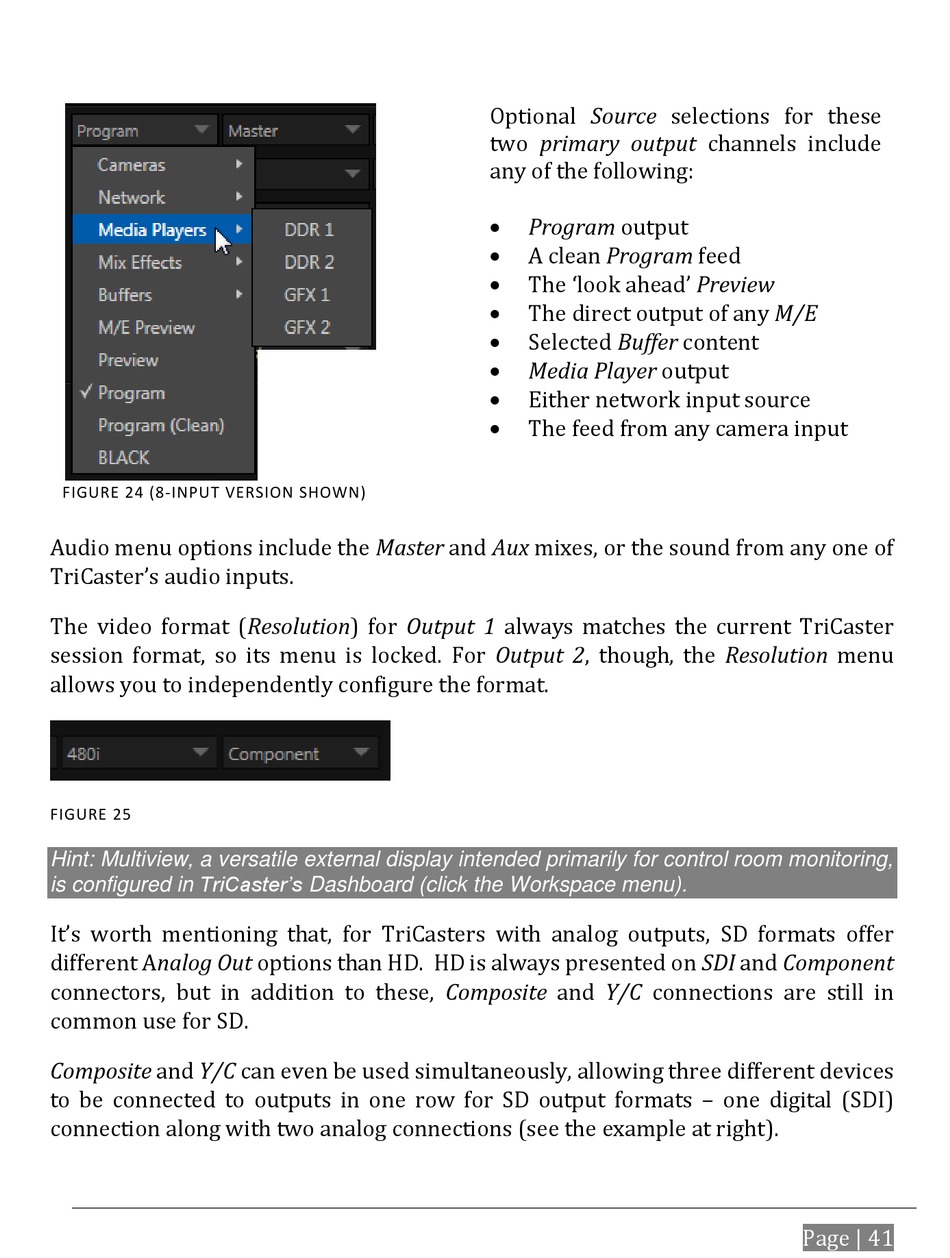

FIGURE 24 (8-INPUT VERSION SHOWN)
Audio menu options include the Master and Aux mixes, or the sound from any one of
TriCaster's audio inputs.
The video format (Resolution) for Output 1 always matches the current TriCaster
session format, so its menu is locked. For Output 2, though, the Resolution menu
allows you to independently configure the format.
FIGURE 25
Hint: Multiview, a versatile external display intended primarily for control room monitoring,
is configured in TriCaster's Dashboard (click the Workspace menu).
It's worth mentioning that, for TriCasters with analog outputs, SD formats offer
different Analog Out options than HD. HD is always presented on SDI and Component
connectors, but in addition to these, Composite and Y/C connections are still in
common use for SD.
Composite and Y/C can even be used simultaneously, allowing three different devices
to be connected to outputs in one row for SD output formats – one digital (SDI)
connection along with two analog connections (see the example at right).
Optional Source selections for these
two primary output channels include
any of the following:
Program output
A clean Program feed
The 'look ahead' Preview
The direct output of any M/E
Selected Buffer content
Media Player output
Either network input source
The feed from any camera input
Page | 41
