NewTek TriCaster Mini User Manual page 89

DSK 1 (which was displayed above the BKGD layer) is removed from view, and DSK 2
is displayed using its own transition.
Let's up the ante just slightly.
19. Press Ctrl on your keyboard while you click the BKGD delegate button.

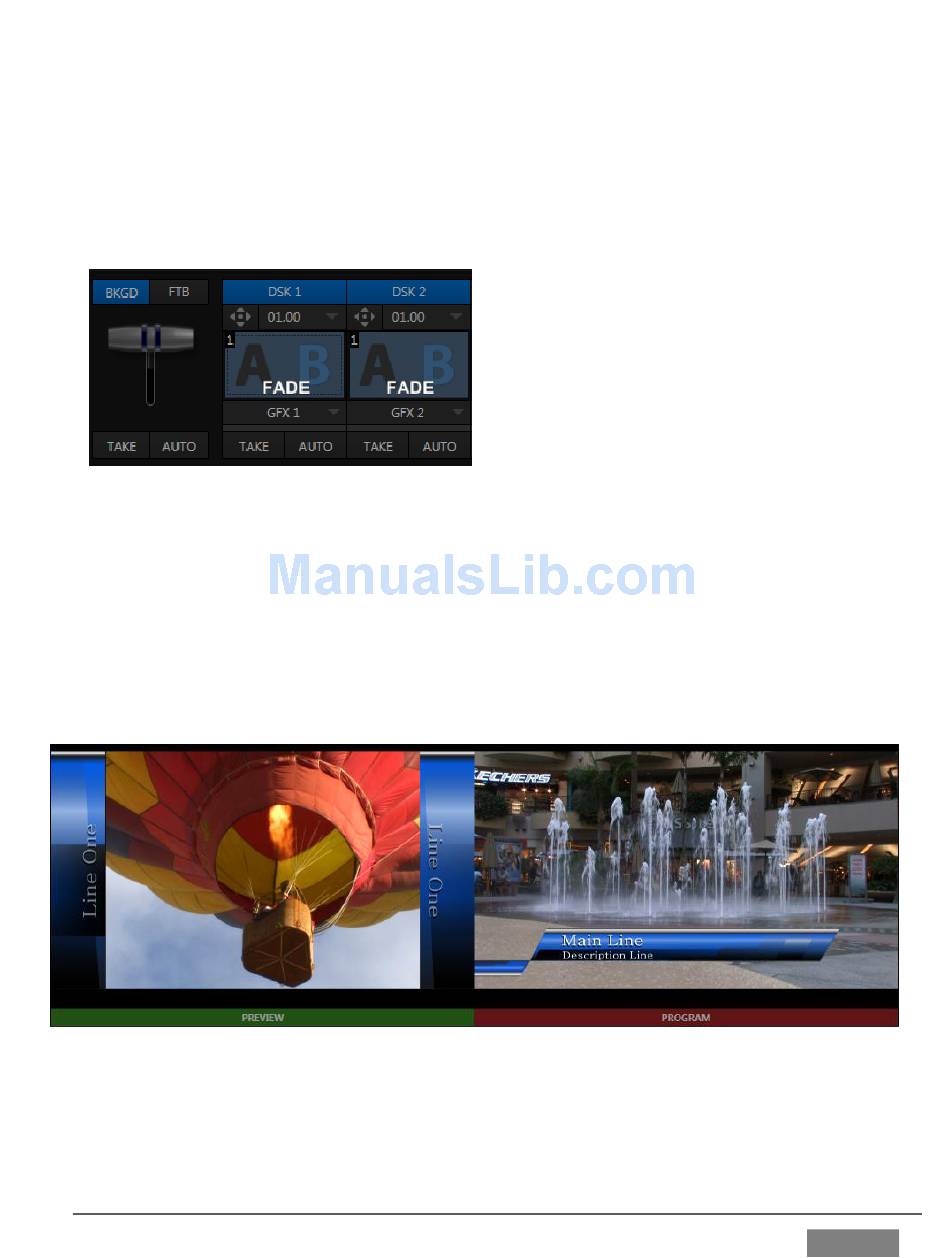

FIGURE 58
Your Transition Delegate buttons should now resemble Figure 58, showing that three
delegates are currently active.
20. Press the main Auto button again.
Let's analyze what happened using the images below, which show the before and after
displays on the Preview and Program monitors (from left to right).
FIGURE 59 (BEFORE)
In Figure 59, the Program monitor shows the composite result of DSK 1 over the BKGD
layer, the current Program row selection.
Page | 73
