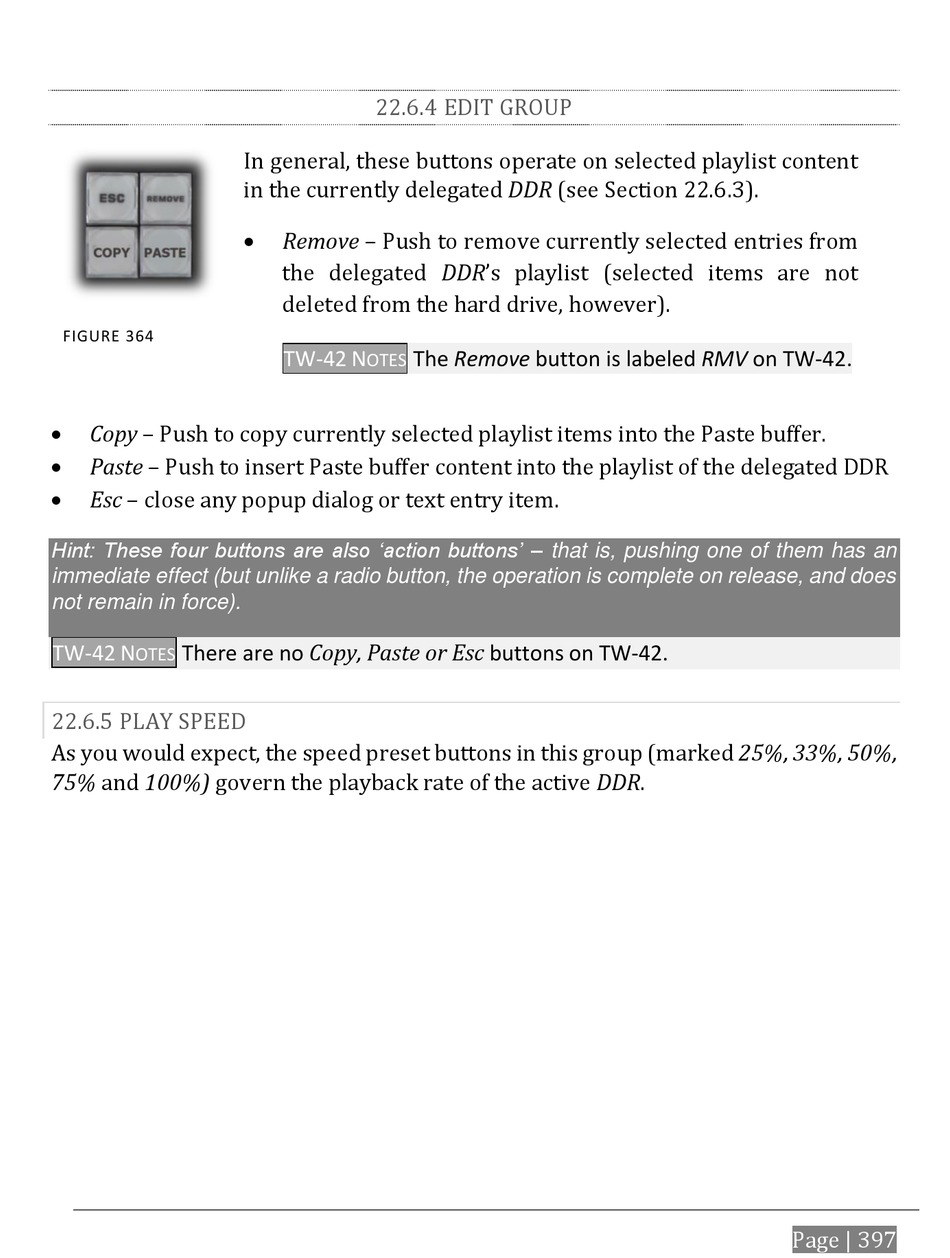

FIGURE 364
Copy – Push to copy currently selected playlist items into the Paste buffer.
Paste – Push to insert Paste buffer content into the playlist of the delegated DDR
Esc – close any popup dialog or text entry item.
Hint: These four buttons are also 'action buttons' – that is, pushing one of them has an
immediate effect (but unlike a radio button, the operation is complete on release, and does
not remain in force).
There are no Copy, Paste or Esc buttons on TW-42.
TW-42 N
OTES
22.6.5 PLAY SPEED
As you would expect, the speed preset buttons in this group (marked 25%, 33%, 50%,
75% and 100%) govern the playback rate of the active DDR.
22.6.4 EDIT GROUP
In general, these buttons operate on selected playlist content
in the currently delegated DDR (see Section 22.6.3).
Remove – Push to remove currently selected entries from
the delegated DDR's playlist (selected items are not
deleted from the hard drive, however).
TW-42 N
The Remove button is labeled RMV on TW-42.
OTES
Page | 397
