MIB support

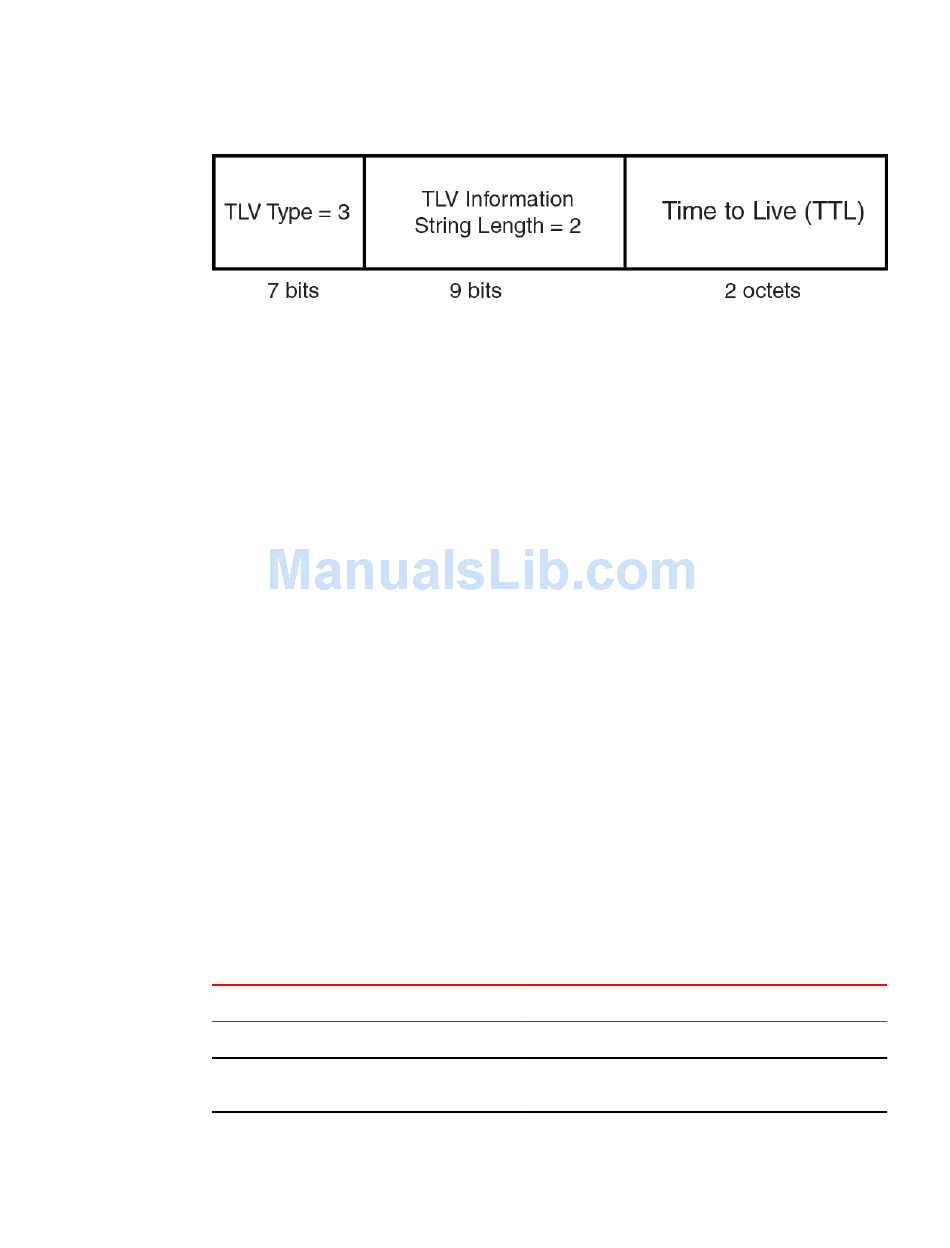

FIGURE 7 TTL TLV packet format
MIB support
Brocade devices support the following standard management information base (MIB) modules:
• LLDP-MIB
• LLDP-EXT-DOT1-MIB
• LLDP-EXT-DOT3-MIB
• LLDP-EXT-MED-MIB
Syslog messages
Syslog messages for LLDP provide management applications with information related to MIB data
consistency and general status. These Syslog messages correspond to the lldpRemTablesChange
SNMP notifications. Refer to
Syslog messages for LLDP-MED provide management applications with information related to
topology changes. These Syslog messages correspond to the lldpXMedTopologyChangeDetected
SNMP notifications. Refer to
topology changes
LLDP configuration
This section describes how to enable and configure LLDP.
The following table lists the LLDP global-level tasks and the default behavior/value for each task.
TABLE 23
Global task
Enabling LLDP on a global basis
Specifying the maximum number of LLDP
neighbors per device
182
Enabling LLDP SNMP notifications and Syslog messages
Enabling SNMP notifications and Syslog messagesfor LLDP-MED
on page 197.
LLDP global configuration tasks and default behavior /value
Default behavior / value when LLDP is enabled
Disabled
Automatically set to 392 neighbors per device
FastIron Ethernet Switch Administration Guide
on page 187.
53-1003625-01
