Basic Software Features

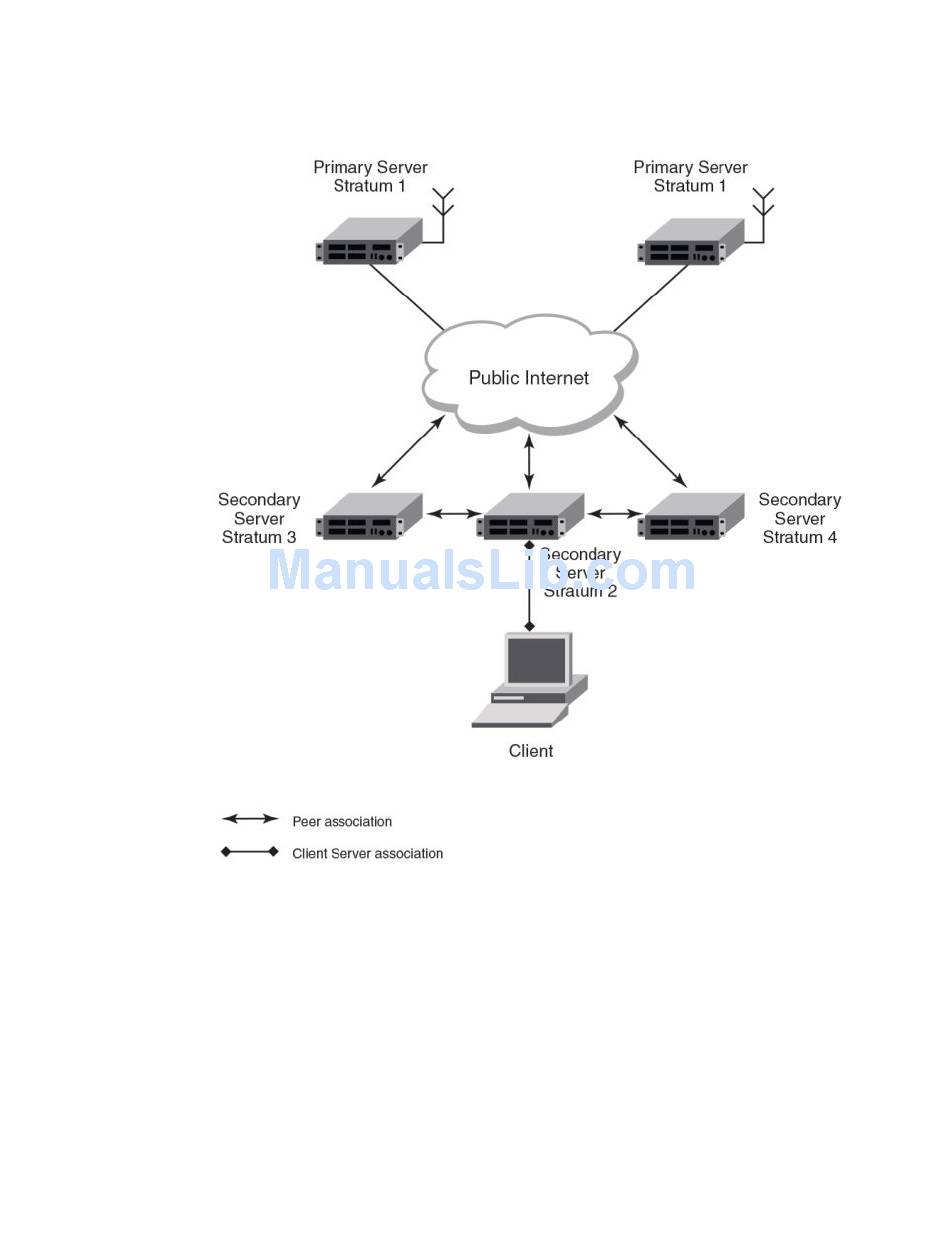

FIGURE 1 NTP Hierarchy
• NTP implementation conforms to RFC 5905.
• NTP can be enabled in server and client mode simultaneously.
• The NTP uses UDP port 123 for communicating with NTP servers/peers.
• NTP server and client can communicate using IPv4 or IPv6 address
• NTP implementation supports below association modes.
‐
‐
‐
‐
‐
• NTP supports maximum of 8 servers and 8 peers. The 8 peers includes statically configured and
dynamically learned.
36
Client
Server
Symmetric active/passive
Broadcast server
Broadcast client
