5. Press ENTER to output the signal.
When you select the output signal from No.01 to No.12, No.21 to No.76, the output signal will begin.
When you select the output signal from No.13 to No.20, the black and white ratio can be changed.
Select the desired ratio of the white and black and then press ENTER.
To stop outputting the tonal signal, press STOP.
6. To select another tonal signal, repeat steps 1-5.
Otherwise, proceed to step 7.
7. Press STOP to return to standby.

3.13.3 DTMF Output Test

The DTMF output test permits the unit's DTMF tones to be monitored.
Note: To monitor the tones, an external monitoring device must be connected to the telephone line jack.

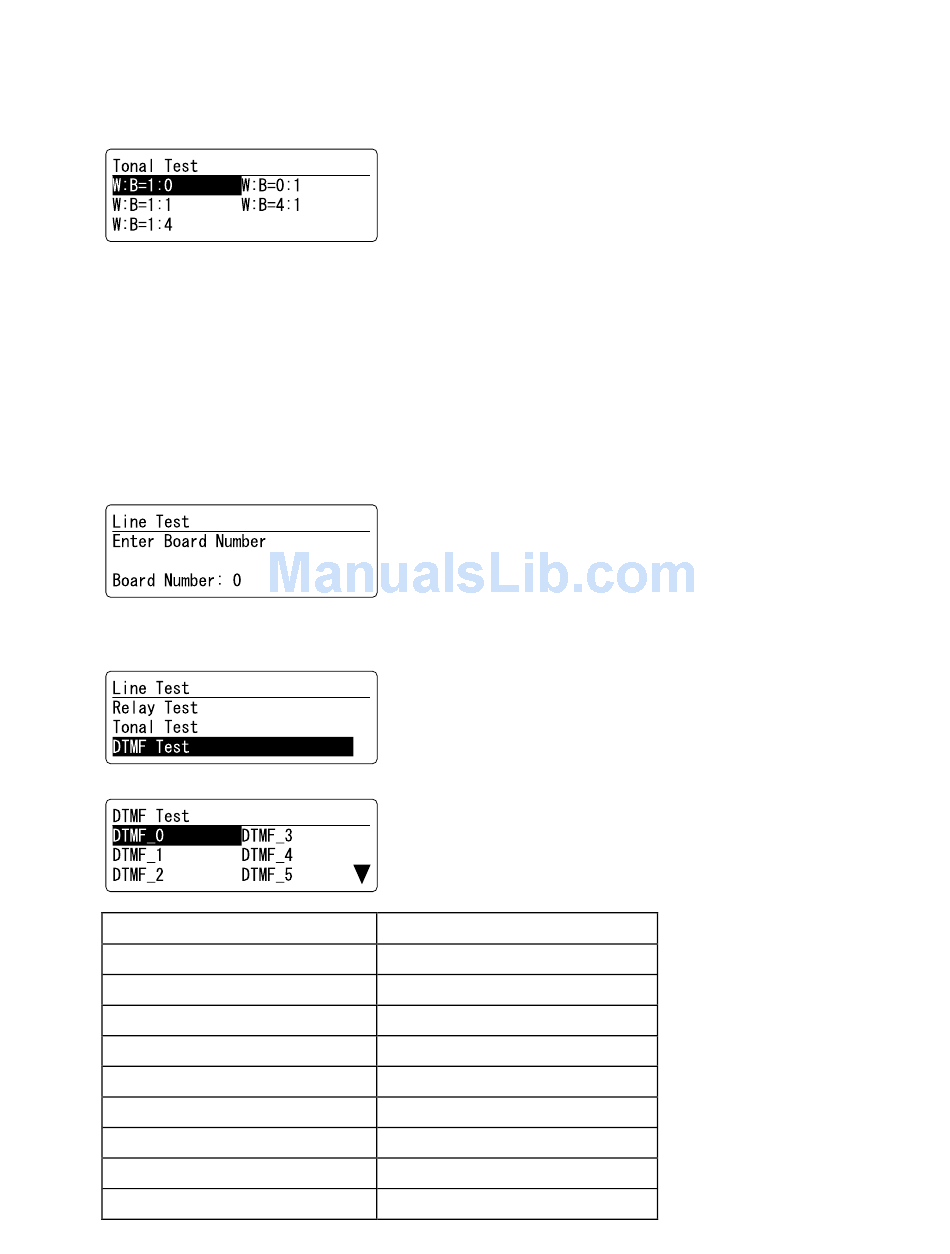

1. Press MENU, *, 1, 2.
2. Press the numeric keypad 0 (zero) to select the main board.
To select the optional board number for the second phone line, press 1 (one).
Then press ENTER.
3. Select "DTMF Test", then press ENTER.
Signal
DTMF 0: (941 Hz + 1336 Hz)
DTMF 1: (697 Hz + 1209 Hz)
DTMF 2: (697 Hz + 1336 Hz)
DTMF 3: (697 Hz + 1477 Hz)
DTMF 4: (770 Hz + 1209 Hz)
DTMF 5: (770 Hz + 1336 Hz)
DTMF 6: (770 Hz + 1477 Hz)
DTMF 7: (852 Hz + 1209 Hz)
DTMF 8: (852 Hz + 1336 Hz)
Signal
ROW 1: (697 Hz)
ROW 2: (770 Hz)
ROW 3: (852 Hz)
ROW 4: (941 Hz)
COL 1: (1209 Hz)
COL 2: (1336 Hz)
COL 3: (1477 Hz)
COL 4: (1633 Hz)
3-116
