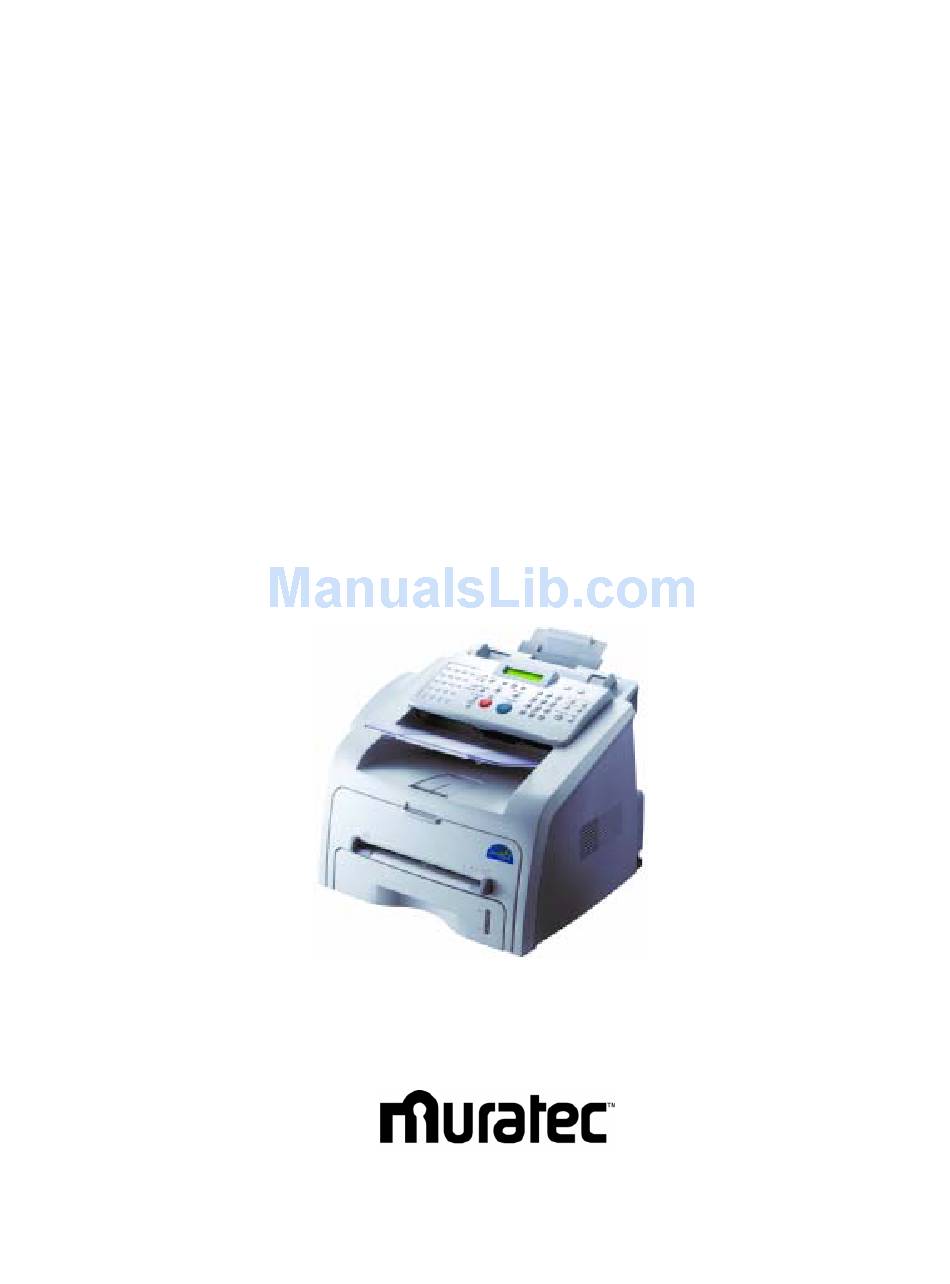

Page 1 Muratec F-114 Series User Guide English...
Page 2 AnyPage. This manual is provided for information purposes only. All information included herein is subject to change without notice. Muratec is not responsible for any direct or indirect damages, arising from or related to use of this manual.
Page 3: Table Of Contents
ONTENTS Chapter 1: Chapter 1: Unpacking ... 1.2 Understanding the Component Location ... 1.5 Attaching Accessories ... 1.8 Installing the Toner Cartridge ... 1.10 Loading Paper ... 1.12 Making Connections ... 1.15 Turning the Machine On ... 1.18 About the Software ... Installing Software in Windows ...
Page 4 Loading Paper in the Paper Tray ... 2.7 Using the Manual Feeder ... 2.8 Setting the Paper Type and Size for the Manual Feeder 2.10 RINTING Chapter 3: Printing a Document in Windows ... 3.2 Canceling a Print Job ... 3.5 Using a Favorite Setting ...
Page 5 Loading a Document ... 6.5 Adjusting the Document Resolution ... 6.6 Sending a Fax Automatically ... 6.7 Sending a Fax Manually ... 6.8 Redialing the Last Number ... 6.8 Confirming Transmission ... 6.9 Automatic Redialing ... 6.9 About Receiving Modes ... 6.10 Loading Paper for Receiving Faxes ...
Page 6 Scanners Configuration ... 7.8 MFP Ports Configuration ... 7.9 Configuring Printer Properties ... 7.10 Printing a Document ... 7.11 Printing from Applications ... 7.11 Printing Files ... 7.12 Scanning a Document ... 7.13 Using the Image Editor ... 7.17 AINTENANCE Chapter 8: Clearing the Memory ...
Page 7 Paper Specifications ... A.6 Overview ... A.6 Supported Sizes of Paper ... A.6 Guidelines for Using Paper ... A.7 Paper Specifications ... A.8 Paper Output Capacity ... A.8 Paper Storage Environment ... A.9 Envelopes ... A.9 Labels ... A.11 Transparencies ... A.11 viii...
Page 8 Safety and Regulatory Information Important Precautions and Safety Information When using this machine, these basic safety precautions should always be followed to reduce risk of fire, electric shock and injury to people: Read and understand all instructions. Use common sense whenever operating electrical appliances. Follow all warnings and instructions marked on the machine and in the literature accompanying the machine.
Page 9: Laser Safety Statement
17 Use only No.26 AWG or larger telephone line cord. 18 SAVE THESE INSTRUCTIONS. Laser Safety Statement The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 825.
Page 10: Power Saver
Power Saver This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use. When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.gov Recycling Please recycle or dispose of the packaging material for this product in an environmentally...
Page 11: Ringer Equivalence Number
• Consult the dealer or experienced radio TV technician for help. Caution: Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian Radio Interference Regulations This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.
Page 12 You should also know that: • Your machine is not designed to be connected to a digital PBX system. • If you intend to use a computer modem or fax modem on the same phone line as your machine, you may experience transmission and reception problems with all the equipment.
Page 14: Chapter 1: Getting Started
ETTING TARTED Thank you for purchasing this multifunctional product. Your machine provides you with printing, copying, scanning, and faxing functions! This chapter gives you step-by-step instructions for setting up your machine. This chapter includes: • Unpacking • Understanding the Component Location •...
Page 15: Unpacking
Unpacking Remove the machine and all accessories from the packing carton. Make sure that the machine has been packed with the following items. If there is a missing item, contact the retailer where you bought the machine: Starter Toner Cartridge AC Power Cord Telephone Line Cord CD-ROM...
Page 16 * The appearance of the power cord and the telephone line cord may differ according to your country’s specifications. ** The CD-ROM contains the MFP driver, SmarThru software, the user’s guides and the Adobe Acrobat Reader program. OTES • You should use the telephone line cord which is supplied with your machine.
Page 17: Selecting A Location
Selecting a Location Select a level, stable place with adequate space for air circulation. Allow extra space for opening covers and trays. The area should be well-ventilated and away from direct sunlight or sources of heat, cold and humidity. Do not set the machine close to the edge of your desk or table.
Page 18: Understanding The Component Location
Understanding the Component Location These are the main components of your machine: Front View Document Input Support Automatic Document Feeder Control Panel (See page 1.6) Document Guides Handset Manual Feeder Guides Rear View Power Switch AC Power Cord Connector Document Output Tray Front Output Tray (Face down) Front Cover...
Page 19: Control Panel Functions
Control Panel Functions ETTING TARTED Use to store frequently-dialed fax number and dial them with a touch of the buttons. Adjusts the brightness of the documents for the current copy job. Selects the document type for the current copy job. Makes a copy smaller or larger than the original document.
Page 20 Sends you back to the upper menu level. Stops an operation at any time. In Standby mode, clears/cancels the copy options, such as the darkness, the document type setting, the copy size and the number of copies. Starts a job. Dials a number or enters alphanumeric characters.
Page 21: Attaching Accessories
Attaching Accessories Document Output Support Insert the two tabs on the supplied document output support into the slots on both sides of the paper output tray. Fold out the extender, if necessary. OTES • When you want to use the paper output extension, first slightly lift the document output support up, then fold out the extension.
Page 22: Handset And Handset Cradle
Handset and Handset Cradle Plug the end of the coiled cord of the handset into the jack on the left side of your machine. Holding the cradle as shown, attach the handset cradle to the machine. ➀ Insert the two tabs of the cradle into the slots on the left side of the machine as shown.
Page 23: Installing The Toner Cartridge
Installing the Toner Cartridge Open the front cover. Remove the starter toner cartridge from its bag. Gently roll the cartridge 5 or 6 times to distribute the toner evenly inside the cartridge. Thoroughly rolling the cartridge will assure the maximum copies per cartridge.
Page 24 Slide the toner cartridge into the machine until it locks into place completely. Close the front cover. Make sure that the cover is securely closed. 1.11 ETTING TARTED...
Page 25: Loading Paper
Loading Paper You can load approximately 250 sheets. To load a stack of Letter-sized paper: Pull open the paper tray and remove it from the machine. Push down on the pressure plate until it locks into place. Fan the edges of the paper stack to separate the pages. Then tap the stack on a flat surface to even it up.
Page 26 Insert the paper stack into the paper tray with the side you want to print on facing up. : If you want to load a different size of paper, you need to adjust the paper guides. For details, see page 1.14. Pay attention to the paper limit mark on the left inside wall of the tray.
Page 27 Changing the Paper Size in the Paper Tray To load longer sizes of paper, such as Legal-sized paper, you need to adjust the paper guides to extend the paper tray. After pressing and unlatching the guide lock, slide the paper length guide out completely to extend the paper tray to its full length.
Page 28: Making Connections
Pinching the paper width guide as shown, move it toward the stack of paper until it lightly touches the side of the stack. OTES • Do not push the paper width guide far enough to cause the materials to warp. •...
Page 29 To connect a telephone and/or answering machine to your machine, plug the cord of your extension phone or answering machine into the EXT jack. UK users should plug the cord of the extension phone into the supplied TAM lead and plug the cord of the TAM lead into the EXT jack on the back of your machine.
Page 30 Connect a USB cable to the USB connector on your machine. You must purchase a USB 1.1 compliant cable that is no more than 3 m in length. OTES • If you are using a USB cable, you must be running Windows 2000/XP/Vista.
Page 31: Turning The Machine On
Turning the Machine On Plug one end of the supplied three-pronged electrical type cord into the AC socket on the machine and the other end into a properly grounded AC outlet. Press the power switch to turn the machine on. “Warming Up Please Wait”...
Page 32: About The Software
Installing Software About The Software You must install software using the supplied CD-ROM after you have set up your machine and connected it to your computer. The CD-ROM includes: • Software • User’s Guides • Adobe Acrobat Reader The CD-ROM provides you with the following software: Windows MFP Driver To use your machine as a printer and scanner in Windows, you must install the MFP driver.
Page 33: Printer Driver Features
OCR Software AnyPage Lite, the OCR (Optical Character Recognition) program, is Windows-based software that has the ability to recognize most character formats so that a scanned document can be read and edited with word processing software. OTES • Chinese is not supported with the OCR function. •...
Page 34: Installing Software In Windows
Installing Software in Windows System Requirements Before you begin, ensure that your system meets the minimum requirements. Item Operating System Windows 2000/XP/Vista Windows 2000 Windows XP/ Vista Windows 2000 Windows XP Windows Vista Windows 2000 Free disk space Windows XP Windows Vista Windows 2000/ XP...
Page 35: Installing Software
Installing Software OTES computer boots up. Insert the supplied CD-ROM into your CD-ROM drive. The CD-ROM should automatically run and an installation window appears. If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter of your drive and click OK.
Page 36 Choose the installation type. •Typical: Installs the common software for your printer, such as printer driver, Twain driver, Remote Control Panel. This is recommend for most users. •Custom: Allows you to choose the language of the software and the components you want to install. After selecting the language and the component(s), click Next.
Page 37: Installing Smarthru
When the test page prints out correctly, click Yes. If not, click No to reprint it. To register yourself as a user of Printers, select the check box and click Finish. You are now accessed to the Samsung web site. Otherwise, just click Finish.
Page 38 Follow the on-screen instructions and click Next. Click Next. Select the installation type and click Next. The software installation supports two types of setup: • Typical: Program will be installed with the most common options and is recommended for most users. •...
Page 39 Stand-alone configuration does not allow you to use any networking features, such as Remote Fax or Remote Scan service. When you select SmarThru networking, you can elect to install it as a Server, a Client or both. The Server option allows you to share a local fax modem and/or a scanner over a LAN.
Page 40: Repairing Software
Repairing Software Repairing is required if your installation fails or the software does not work properly. This Repairing procedure does not repair SmarThru software. You can select Start Programs → Series Maintenance. → Otherwise, Insert the supplied ‘D-ROM into your CD-ROM drive.
Page 41: Removing Software
Removing Software Uninstall is required if you are upgrading the software or if your installation fails. You can uninstall the item you want using the Windows uninstallShield. Uninstalling the MFP Driver You can select Start Series Otherwise, Insert the supplied ‘D-ROM into your CD-ROM drive.
Page 42: Uninstalling Smarthru
Uninstalling SmarThru : Before beginning uninstallation, ensure that all applications are closed on your computer. A system reboot is required after the software is uninstalled. From the Start menu, select Programs. Select Samsung SmarThru, and then select SmarThru 3 Uninstall. When your computer asks you to confirm your selection, click Ok.
Page 43: Changing The Display Language
Setting Up the Machine System Changing the Display Language To change the language that displays on the display of the control panel, follow these steps: Press Menu until “Machine Setup” appears on the top line of the display. Press the scroll button ( on the bottom line of the display.
Page 44: Setting The Machine Id
Setting the Machine ID In some countries, you are required by law to indicate your fax number on any fax you send. The Machine ID, containing your telephone number and name or company name, will be printed at the top of each page sent from your machine. Press Menu until “Machine Setup”...
Page 45: Entering Characters Using The Number Keypad
Entering Characters Using the Number Keypad As you perform various tasks, you need to enter names and numbers. For example, when you set up your machine, you enter your name or your company’s name and telephone number. When you store one or two digit speed dial or group dial numbers, you may also enter the corresponding names.
Page 46: Keypad Letters And Numbers
Keypad Letters and Numbers Assigned numbers, letters or characters Space ’ Changing Numbers or Names If you make a mistake while entering a number or name, press button to delete the last digit or character. Then enter the correct numbers or characters. Inserting a Pause With some telephone systems, you must dial an access code (9, for example) and listen for a second dial tone.
Page 47: Setting The Date And Time
Setting the Date and Time The current date and time are shown on the display when your machine is on and ready to work. All of your faxes will have the date and time printed on them. correct time and date once the power is restored. Press Menu until “Machine Setup”...
Page 48: Changing The Clock Mode
Press Enter when the time and date on the display is correct. When you enter a wrong number, the machine beeps and does not proceed to the next step. If this happens, just reenter the correct number. Changing the Clock Mode You can set your machine to display the current time using either 12-hour or 24-hour format.
Page 49: Setting The Paper Type And Size
Setting the Paper Type and Size After loading paper in the paper tray, you need to set the paper type and size using the control panel buttons. These settings will apply to Fax and Copy modes. For PC-printing, you need to select the paper type and size in the application program you use.
Page 50: Setting Sounds
Setting Sounds You can control the following sounds: • Ringer: You can adjust the ringer volume. • Key Sound: With this option set to “On,” a key tone sounds each time any key is pressed. • Alarm Sound: You can turn the alarm sound on or off. With this option set to “On,”...
Page 51: Speaker Volume
Speaker Volume To adjust the volume using the On Hook Dial button: Press On Hook Dial. A dial tone sounds from the speaker. Press the scroll button ( you want. The display shows the current volume level. Press Stop/Clear to save the change and return to Standby mode.
Page 52: Toll Save Mode
Toll Save Mode Using the Toll Save button on the control panel, you can quickly set your machine to send the document(s) stored in the memory during the preset time slot, when the call charge is lowered. This Toll Save mode helps you to take advantage of lower long distance rates at night, for example.
Page 53: Power Save Mode
Power Save Mode Power Save mode allows your machine to reduce power consumption when it is not in actual use. You can turn this mode on by selecting the length of time for which the machine waits after a job is printed before it switches to a reduced power state. Press Menu until “Machine Setup”...
Page 54: Chapter 2: Paper Handling
APER ANDLING This chapter introduces you to the basics of selecting print materials and loading them into your machine. This chapter includes: • Selecting Print Materials • Selecting an Output Location • Loading Paper in the Paper Tray • Using the Manual Feeder...
Page 55: Selecting Print Materials
Selecting Print Materials You can print on a variety of print materials, such as plain paper, envelopes, labels, transparencies and so on. Always use print materials that meet the guidelines for use with this machine. See “Paper Specifications” on page A.6. To get the best possible print quality, use only high-quality copier-grade paper.
Page 56: Guidelines For Paper And Special Materials
Guidelines for Paper and Special Materials When selecting or loading paper, envelopes, or other special material, keep these guidelines in mind: • Always use paper and other materials that conform with the specifications listed under “Paper Specifications” on page A.6. •...
Page 57: Selecting An Output Location
- To avoid smudging caused by fingerprints, handle them and coated paper carefully. - To avoid fading, do not expose the printed transparencies to prolonged sunlight. • For labels: - Verify that their adhesive material can tolerate fusing temperature of 200 - Make sure that there is no exposed adhesive material between them.
Page 58: Printing To The Front Output Tray (Face Down)
Printing to the Front Output Tray (Face down) The front output tray collects printed paper face-down in correct order. The tray should be used for most print jobs. Printing to the Rear Output Slot (Face up) Using the rear output slot, paper comes out of the machine face Printing from the manual feeder to the rear output slot provides the straight paper path.
Page 59 To use the rear output slot: Open the rear cover by pulling it upward. AUTION becomes hot once the machine is turned on. Be careful when you access this area. If you do not want to use the rear output slot, close the rear cover.
Page 60: Loading Paper In The Paper Tray
Loading Paper in the Paper Tray The paper tray can hold a maximum of 250 sheets of 20 lb(75g/ ) plain paper. For faxing and copying, you can use A4-, Letter- or Legal-sized paper only. For PC-printing, you can use many different sizes of paper;...
Page 61: Using The Manual Feeder
Using the Manual Feeder Use the manual feeder to print transparencies, labels, envelopes or postcards in addition to making quick runs of paper types or sizes that are not currently loaded in the paper tray. Postcards, 3.5 by 5.83 in.(index) cards and other custom-sized materials can be printed with this printer.
Page 62 Adjust the paper guide to the width of the print material. : When printing on previously printed paper from the manual feeder, the printed side should be facing down with an uncurled edge to the machine. If you experience problems with paper feed, turn the paper around.
Page 63: Setting The Paper Type And Size For The Manual Feeder
Setting the Paper Type and Size for the Manual Feeder After loading paper in the manual feeder, you need to set the correct paper type and size using the control panel buttons. These settings will apply to Copy mode. For PC-printing, you need to select the paper size in the application program you use.
Page 64: Chapter 3: Printing
RINTING This chapter explains how to print your documents in Windows and how to use the print settings. This chapter includes: • Printing a Document in Windows • Setting Paper Properties • Setting Graphic Properties • Printing Multiple Pages on One Sheet of the Paper •...
Page 65: Printing A Document In Windows
Printing a Document in Windows The following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program you are using. Refer to your software application’s user’s guide for the exact printing procedure.
Page 66 Now you see the Samsung MFP 560 Series Properties window, which allows you to access all of information you need when using your machine. The Layout tab first displays. The preview image shows the sample page with the settings you specified.
Page 67 If necessary, you can set the sequence for the pages to print from the Extra tab. Select the print order you want to use from the P Order drop-down list. • Normal: Your machine prints from the first page to the •...
Page 68: Canceling A Print Job
Canceling a Print Job There are two ways to cancel a print job: To stop a print job from the control panel: Press the button. Stop/Clear Your machine finishes printing the page that is moving through the machine and deletes the rest of the print job.
Page 69: Using A Favorite Setting
Using a Favorite Setting The Favorites option, which is visible on each tab, allows you to save the current properties settings for future use. To save a Favorites item: Change the settings on each tab, as needed. Enter a name for the item in the Favorites input box. Click Save.
Page 70: Setting Paper Properties
Setting Paper Properties Use the following options for paper handling. See page 3.2 for more information about accessing printer’s Properties. Click the Paper tab to access many paper properties. Property Copies allows you to choose the number of Copies copies to be printed. You can enter up to 999. Size allows you to choose the size of the paper Size loaded in the tray.
Page 71: Setting Graphic Properties
Property Source Type Setting Graphic Properties Use the following graphic options to adjust the print quality for your specific printing needs. See page 3.2 for more information about accessing printer properties. Click the Graphics tab to display the properties shown below. RINTING Make sure that Source is set to the corresponding paper tray.
Page 72 Property You can select the printing resolution by Resolution choosing from 600 dpi (Normal) or 300 dpi (Draft). The higher the setting, the sharper the printed characters and graphics. Higher settings may increase the time it takes to print a document. Selecting this option extends the life of your Toner Save toner cartridge and reduces your cost per page...
Page 73: Printing Multiple Pages On One Sheet Of The Paper
Property Printing Multiple Pages on One Sheet of the Paper You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages are smaller and arranged in the order you specified on the sheet. You can print up to 16 pages on one sheet.
Page 74 Select the number of pages you want to print per sheet (1, 2, 4, 9 or 16) on the Pages per Side drop-down list. Select the page order on the Page Order drop-down list, if necessary. Down, Then Right, Then Right Down Check Print Page Border to print a border around each...
Page 75: Printing A Reduced Or Enlarged Document
Printing a Reduced or Enlarged Document You can scale your print job on a page. When you change the print settings from your software application, access the printer’s Properties. See page 3.2. From the Layout tab, select Reduce/Enlarge on the Type drop-down list.
Page 76: Fitting Your Document To A Selected Paper Size
Fitting Your Document to a Selected Paper Size You can scale your print job to any paper size regardless of the digital document size. This can be useful when you want to check the fine details on a small document. When you change the print settings from your software application, access the printer’s Properties.
Page 77: Printing Posters
Printing Posters You can print a single-page document onto 4, 9 or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-sized document. When you change the print settings from your software application, access the printer’s Properties. See page 3.2. From the Layout tab, select Poster on the Type drop- down list.
Page 78: Using Watermarks
Click the Paper tab and select the paper source, size and type. Click OK and print the document. You can complete the poster by posting the sheets together. Using Watermarks The Watermark option allows you to print text over an existing document.
Page 79: Creating A Watermark
Creating a Watermark When you change the print settings from your software application, access the printer’s Properties. See page 3.2. Click the Extras tab and click Edit in the Watermark section. The Edit Watermarks window appears. Enter text message you want to print in the Watermark Message box.
Page 80: Editing A Watermark
Editing a Watermark When you change the print settings from your software application, access the printer properties. See page 3.2. Click the Extras tab and click Edit in the Watermark section. The Edit Watermarks window appears. Select the watermark you want to edit on the Current Watermarks list, to change the watermark message and the options.
Page 81: Using Overlays
Using Overlays What is an Overlay? An overlay is text and/or images stored on the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of Dear ABC preprinted forms and letterhead paper.
Page 82 In the Edit Overlays window, click Create Overlay. In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover). Click Save. The name appears on the Overlay List. Click Ok or Yes to finish creating.
Page 83: Using A Page Overlay
Using a Page Overlay After an overlay has been created, it is ready to be printed with your document. To print an overlay with a document: Create or open the document you want to print. When you change the print settings from your software application, access the printer’s Properties.
Page 84: Deleting A Page Overlay
If necessary, click Confirm Page Overlay When Printing. When this box is checked, a message window appears each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document. Answering Yes to the window means that the selected overlay prints with your document.
Page 85: Setting Up The Locally Shared Printer
Setting Up the Locally Shared Printer You can connect the machine directly to a selected computer, which is called “host computer,” on the network. Your machine can be shared by other users on the network through a Windows 2000, XP or Vista. connected, you need to install the printer software on each computer that will print documents to the printer.
Page 86 Setting Up the Client Computer Right-click Start and select Explorer. Open your network folder in the left column. Click the shared name. For Windows 2000, from the Start menu, select Settings and Printers. For Windows XP, from the Start menu, select Printers and Faxes.
Page 87 3.24 RINTING...
Page 88: Chapter 4: Copying
OPYING This chapter gives you step-by-step instructions for copying documents. This chapter includes: • Loading Paper for Copying • Preparing a Document • Making a Copy • Setting Copy Options • Changing the Default Settings • Setting the Time Out Option •...
Page 89: Loading Paper For Copying
Loading Paper for Copying The instructions for loading print materials are the same whether you are printing, faxing or copying. For coping, you can use Letter-, A4-, Legal-sized print materials. For further details, see page 1.12 for loading in the paper tray and page 2.8 for loading in the manual feeder.
Page 90: Making A Copy
Making a Copy Pull the document support all the way out. Fold out the extender, if necessary. Load the documents up to 20 pages face down into the ADF. Adjust the document guides to the document size. Customize the copy settings including number of copies, copy size, darkness and original type by using the control panel buttons.
Page 91: Setting Copy Options
Press Start Copy/Fax. Setting Copy Options The buttons on the control panel let you make all the basic copy options; darkness, document type, copy size and number of copies. Set the following options for the current copy job before pressing Start Copy/Fax to make copies. Stop/Clear while you set the copy options, : If you press all of the options you have set for the current copy job will be...
Page 92: Original Type
Original Type The Original Type setting is used to improve the copy quality by selecting the document for the current copy job. To select the document type, press Original Type. Each time you press the button, the LED labeled with the selected mode turns on.
Page 93: Reduced/Enlarged Copying
Reduced/Enlarged Copying Using the Reduce/Enlarge button, you can reduce or enlarge the size of a copied image from 50% to 150%. To select from the predefined copy sizes: Press Reduce/Enlarge. The default setting appears on the bottom line of the display.
Page 94: Changing The Default Settings
Changing the Default Settings Copy options, including darkness, original type, copy size and number of copies, can be set to the most frequently used modes. When you copy a document, the default settings are used unless they are changed by using the corresponding buttons on the control panel.
Page 95: Setting The Time Out Option
Setting the Time Out Option You can set the time the machine waits before it restores the default copy settings, if you do not start copying after changing them on the control panel. Press Menu on the control panel until “Copy Setup” appears on the top line of the display.
Page 96: Chapter 5: Scanning
CANNING Scanning with your machine lets you turn pictures and text into digital files on your computer. Then you can fax or e-mail the files, display them on your web site or use them to create projects that you can print using SmarThru software.
Page 97: Scanning Basics
Scanning Basics Your machine offers two ways to scan: • From the SmarThru software: Launch SmarThru and open the Scan Wizard to begin scanning. See below. • From TWAIN-compliant software: You can use other software including Adobe PhotoDeluxe and Adobe Photoshop. See page 5.6.
Page 98 Load the document(s) to be scanned face down into the ADF (Automatic Document Feeder) and adjust the document guides. For detailed guidelines for preparing an original document, see page 4.2. Once you have installed software, you see the SmarThru icon on the desktop. Double-click the SmarThru 3 icon. The SmarThru 3 window opens.
Page 99 To open the Scan Wizard, click the Scan Wizard icon in the plug-in bar on the left of the SmarThru 3 window. Scan Wizard icon. The Scan Wizard lets you use the following services: • Scan • Copy • Scan to Email •...
Page 100 • Scan to WEB Lets you scan the original documents for further publishing to the Web. • Scan to OCR Lets you scan the original documents and pass them to the OCR program. OCR (Optical Character Recognition) is the process of converting a scanned image into text that you can edit in a word processing program.
Page 101: Scanning Process With Twain-Enabled Software
Scanning Process with TWAIN- enabled Software If you want to scan documents using other software, you will need to use TWAIN-compliant software, such as Adobe PhotoDeluxe or Adobe Photoshop. The first time you scan with your machine, select it as your TWAIN source in the application you use.
Page 102: Chapter 6: Faxing
AXING This chapter gives you information about using your machine as a fax machine. This chapter includes: • Setting Up the Fax System • Sending a Fax • Receiving a Fax • Automatic Dialing • Other Ways to Fax • Additional Features...
Page 103: Changing The Fax Setup Options
Setting Up the Fax System Changing the Fax Setup options Press Menu until “Fax Setup” appears on the top line of the display. The first available menu item, “Ring To Answer,” displays on the bottom line. Press the scroll button ( want on the bottom line and press Enter.
Page 104: Available Fax Setup Options
• Normal works well with standard typed or printed documents. • Dark works well with light print or faint pencil markings. Redial Term Your machine can automatically redial a remote fax machine when the line is busy. Intervals from 1 to 15 minutes can be entered. Redials You can specify the number of redial attempts, 0 to 13.
Page 105 Option Auto Reduction When receiving a document as long as or longer than the paper loaded in the paper tray, the machine can reduce the size of the document to fit the size of paper loaded in the machine. Select On if you want to automatically reduce an incoming page.
Page 106: Loading A Document
Sending a Fax Loading a Document Pull the document input support all the way out. Fold out the extender, if necessary. Load the documents up to 30 pages face down into the ADF and adjust the document guides to the document size. For detailed guidelines for preparing an original document, see page 4.2.
Page 107: Adjusting The Document Resolution
The resolution setting is automatically changed to Fine. • When your machine is set to Super Fine resolution and the remote fax machine does not support the Super Fine resolution, the machine transmits using the highest resolution mode supported by the remote fax machine.
Page 108: Sending A Fax Automatically
Sending a Fax Automatically Load the document(s) face down into the ADF. For details about loading a document, see page 6.5. Adjust the document resolution to suit your fax needs. See page 6.6. If you need to change the darkness, see page 6.3. Enter the remote fax phone number using the number keypad.
Page 109: Sending A Fax Manually
If you need to change the darkness, see page 6.3. Press On Hook Dial or lift the handset. You hear a dial tone. Enter the remote fax machine’s fax number using the number keypad. You can use the one-touch keypad or speed or group dial numbers.
Page 110: Confirming Transmission
Confirming Transmission When the last page of your document has been sent successfully, the machine beeps and returns to Standby Mode. When something goes wrong while sending your fax, an error message appears on the display. For a listing of error messages and their meanings, see page 9.8.
Page 111: About Receiving Modes
• In Ans/Fax mode, the answering machine answers an incoming call, and the caller can leave a message on the answering machine. If the fax machine senses a fax tone on the line, the call automatically switches to Fax mode.
Page 112: Loading Paper For Receiving Faxes
Loading Paper for Receiving Faxes The instructions for loading paper in the paper tray are the same whether you are printing, faxing, or copying, except that faxes can only be printed on Letter-, A4- or Legal-sized plain paper. For details about loading paper and setting the paper size in the tray, see page 1.12 and page 1.36.
Page 113: Receiving Automatically In Ans/Fax Mode
Press Start Copy/Fax to receive the fax. The machine begins receiving a fax and returns to Standby Mode when the reception is completed. Receiving Automatically in Ans/Fax Mode For using this mode, you must attach an answering machine to the EXT jack on the back of your machine. See page 1.16. Press Receive Mode.
Page 114: Receiving Manually Using An Extension Telephone
Using the Distinctive Ring Pattern Detection feature, your fax machine can “learn” the ring pattern you designate to be answered by the FAX machine. Unless you change it, this ringing pattern will continue to be recognised and answered as a FAX...
Page 115: Receiving Faxes In The Memory
The LCD displays ‘[Waiting Ring].” Call your fax number from another telephone. It is not necessary to place the call from a fax machine. When your machine begins to ring, do not answer the call. The machine requires several rings to learn the pattern.
Page 116: One-Touch Dialing
Automatic Dialing One-touch Dialing The 20 one-touch buttons on the control panel lets you store frequently-used fax numbers and dial a number automatically with a touch of a button. Storing a Number for One-touch Dialing Press and hold one of the one-touch dial buttons for about 2 seconds.
Page 117: Sending A Fax Using A One-Touch Number
Sending a Fax using a One-touch Number Load the document(s) face down into the ADF. For details about loading a document, see page 6.5. Adjust the document resolution to suit your fax needs. See page 6.6. If you need to change the darkness, see page 6.3. Press the one-touch button where you stored a number.
Page 118: Sending A Fax Using A Speed Number
The corresponding entry’s name briefly displays. The document scans into the memory. The fax number stored in the speed dial location is automatically dialed. The document is sent when the remote fax machine answers. 6.17 AXING...
Page 119: Group Dialing
Group Dialing If you frequently send the same document to several destinations, you can create a group of these destinations and set them under a one or two-digit group dial location. This enables you to use a group dial number setting to send the same document to all the destinations in the group.
Page 120: Editing Group Dial Numbers
To assign a name to the group, enter the name. If you do not want to assign a name, skip this step. Press Enter when the name appears correctly or without entering a name. If you want to assign another group, press Enter and repeat from step 5.
Page 121: Sending A Fax Using Group Dialing (Multi-Address Transmission)
Enter a new group name and press Enter. If you want to edit another group, press Enter and repeat from step 5. To return to Standby mode, press Stop/Clear. Sending a Fax Using Group Dialing (Multi-address Transmission) You can use group dialing for Broadcasting or Delayed transmissions.
Page 122: Searching With A Particular First Letter
Press the scroll button ( memory until the name and number you want to dial display. You can search upwards or downwards through the entire memory in alphabetical order, from A to Z. While searching through the machine’s memory, you can see that each entry is preceded by one of three letters;...
Page 123: Sending Broadcasting Faxes
Other Ways to Fax Sending Broadcasting Faxes Using the Broadcasting button on the control panel, you can use the broadcasting fax feature, which allows you to send a document to multiple locations. Documents are automatically stored in the memory and sent to a remote station. After transmission, the documents are automatically erased from the memory.
Page 124: Sending A Delayed Fax
When you finish entering fax numbers, press 2 to select “No” at a Another No. prompt. The document is scanned into the memory before transmission. The display shows the memory capacity and the number of pages being stored in the memory. The machine begins sending the document in order of the numbers you entered.
Page 125 To enter more fax numbers, press 1 to select “Yes” and repeat steps 4 and 5. You can add up to 10 destinations. Note that you cannot use group dial numbers for another fax number. When you finish entering fax numbers, press 2 to select “No The display asks you to enter a name.
Page 126: Sending A Priority Fax
Sending a Priority Fax Using the Priority Fax feature, a high priority document can be sent ahead of reserved operations. The document is scanned into the memory and transmitted when the current operation is finished. In addition, the priority transmission interrupts a broadcast operation between stations (i.e., when the transmission to station A ends, before transmission to station B begins) or between redial attempts.
Page 127: Polling A Remote Machine
Polling a Remote Machine Polling is used when one fax machine requests another to send a document. This is useful when the person with the original document to be sent is not in the office. The person who wants to receive the document calls the machine holding it and requests that the document be sent.
Page 128: Adding Documents To A Scheduled Fax
To select “AM” or “PM” for 12-hour format, press the button or any number button. If you set a time earlier than the current time, your machine will poll at that time on the following day. When the remote machine is secured with a 4-digit poll code, enter the correct code and press Enter.
Page 129: Canceling A Scheduled Fax
Press the scroll button ( which you want to add documents and press Enter. The machine automatically stores the documents in the memory, and the display shows the memory capacity and the number of pages. After storing, the machine displays the numbers of total pages and added pages and then returns to Standby mode.
Page 130: Using Secure Receiving Mode
Additional Features Using Secure Receiving Mode You may need to prevent your received faxes from being accessed by unauthorized people. You can turn on Secure Receiving mode to restrict printing out all of the received faxes when the machine is unattended. In Secure Receiving mode, all of the incoming faxes go into the memory.
Page 131 To print received documents: Access the Secure Receive menu by following steps 1 and 2 on page 6.29. Press the scroll button ( bottom line and press Enter. Enter the four-digit passcode and press Enter. The machine prints all of the faxes stored in the memory. To turn Secure Receiving mode off: Access the Secure Receive menu by following steps 1 and 2 on page 6.29.
Page 132: Printing Reports
Printing Reports Your machine can print reports containing useful information. The following reports are available: Phonebook List This list shows all of the numbers currently stored in the machine’s memory as speed dial and group dial numbers. You can print this Phonebook list using the Phone Book button; see page 6.21.
Page 133: Power Failure Report
When the Junk Fax Barrier feature is turned on, incoming faxes from those numbers are blocked. This feature recognize the last 6 digits of the fax number set as a remote fax machine’s ID. Multi-communication Report This report is printed automatically after sending documents from more than one location.
Page 134: Using Advanced Fax Settings
Using Advanced Fax Settings Your machine has various user-selectable setting options for sending or receiving faxes. These options are preset at the factory, but you may need to change them. To find out how the options are currently set, print the System Data list. For details about printing the list, see page 6.31 Changing Setting Options Press Menu until “Advanced Fax”...
Page 135: Advanced Fax Setting Options
Select Off to turn this feature off. Select On to turn this feature on. You can set the number of the remote fax machine to which faxes are forwarded. You can set your machine to forward incoming faxes to another fax number during a specified period of time.
Page 136 Error Correction Mode helps with poor line quality and Correction Mode) makes sure any fax you send are sent smoothly to any other ECM-equipped fax machine. If the line quality is poor, it takes more time to send a fax when you are using the ECM mode.
Page 137: Using The Remote Control Panel
Using the Remote Control Panel Using the Remote Control Panel, you can create and edit Phonebook entries or update the firmware program of your machine on the desktop of your computer. When you install the software, the Remote Control Panel program is automatically installed. For information about installing the software, see page 1.19.
Page 138 The Phonebook Tab Click the Phone Book tab to create and edit Phonebook entries. Allows you to edit the selected Phonebook entry in a separate Edit window. Deletes the selected Phonebook entry. When you click Group Dial, the following window opens. Enter a name for the group.
Page 139 The Firmware Update Tab Click the Firmware Update tab to update the firmware of your machine. This feature should be used by an authorized technician. 6.38 AXING...
Page 140: Chapter 7: Using Your Printer In Linux
SING INUX This chapter gives you information about how to use your machine in the Linux system. This chapter includes: • Getting Started • Installing the MFP Driver • Using the MFP Configurator • Configuring Printer Properties • Printing a Document •...
Page 141: Getting Started
Getting Started The supplied CD-ROM provides you with MFP driver package for using your machine with a Linux computer. The MFP driver package contains printer and scanner drivers, providing the ability to print documents and scan images. The package also delivers powerful applications for configuring your machine and further processing of the scanned documents.
Page 142: Installing The Mfp Driver
Installing the MFP Driver System Requirements Supported OS • Redhat 7.1 and above • Linux Mandrake 8.0 and above • SuSE 7.1 and above • Caldera OpenLinux 3.1 and above • Turbo Linux 7.0 and above • Slackware 8.1 and above Recommended Hardware Requirements •...
Page 143: Installing The Mfp Driver
Installing the MFP Driver Make sure that you connect your machine to your computer. Turn both the computer and the machine on. When the Administrator Login window appears, type in root in the Login field and enter the system password. software.
Page 144: Uninstalling The Mfp Driver
When the installation is completed, click Finish. The installation program has added the MFP Configurator desktop icon and the MFP group to the system menu for your convenience. If you have any difficulties, consult the on-line help that is available through your system menu or can otherwise be called from the driver package windows applications, such as MFP Configurator or Image Editor.
Page 145: Using The Mfp Configurator
Using the MFP Configurator MFP Configurator is a tool primarily intended for configuring MFP devices. Since an MFP device combines the printer and scanner, the MFP Configurator provides options logically grouped for printer and scanner functions. There is also a special MFP port option responsible for the regulation of access to an MFP printer and scanner via a single I/O channel.
Page 146: Printers Configuration
Printers Configuration Printers Configuration has the two tabs; Printers and Classes. Printers Tab You can see the current system’s printer configuration by clicking on the printer icon button on the left side of MFP Configurator window. Switches to Printer configuration. Shows the status, model name and URI of your printer.
Page 147: Scanners Configuration
Classes Tab The Classes tab shows the list of the available printer classes. Shows all of the printer classes. Scanners Configuration In this window, you can monitor activity of scanner devices, view the list of installed MFP devices, change device properties, and scan images.
Page 148: Mfp Ports Configuration
MFP Ports Configuration In this window, you can view the list of available MFP ports, check the status of each port and release a port that is stalled in busy state when its owner is terminated for any reason. Switches to MPF ports configuration.
Page 149: Configuring Printer Properties
Configuring Printer Properties Using the properties window provided by the Printers configuration, you can change the various properties for your machine as a printer. Open the MFP Configurator. If necessary, switch to Printers configuration. Select your machine on the available printers list and click Properties.
Page 150: Printing A Document
Printing a Document Printing from Applications There are a lot of Linux applications that you are allowed to print from using Common UNIX Printing System(CUPS). You can print on your machine from any such application. From the application you are using, select Print from the File menu.
Page 151: Printing Files
The following four tabs display at the top of the window. • General - allows you to change the paper size, the paper • Text - allows you to specify the page margins and set the • Graphics - allows you to set image options that are used •...
Page 152: Scanning A Document
Scanning a Document You can scan a document using the MFP Configurator window. Double-click the MFP Configurator on your desktop. Click the button to switch to Scanners Configuration. Select the scanner on the list. Click your scanner. When you have only one MFP device and it is connected to the computer and turned on, your scanner appears on the list and is automatically selected.
Page 153 Load the document(s) to be scanned face down into the ADF (Automatic Document Feeder) and adjust the document guides. For detailed guidelines for preparing an original document, see page 4.2. Click Preview in the Scanner Properties window. The document is scanned and the image preview appears in the Preview Pane 7.14 SING...
Page 154 Change the scan options in the Image Quality and Scan Area sections. • Image Quality: allows you to select the color composition and the scan resolution for the image. • Scan Area: allows you to select the page size. The Advanced button enables you to set the page size manually.
Page 155 Using Preset Job Type Settings You can save your scan option settings to retrieve for future scanning. To save a new Job Type setting: Change the options from the Scanner Properties window. Click Save As. Enter the name for your setting. Click OK.
Page 156: Using The Image Editor
Using the Image Editor The Image Editor window provides you with menu commands and tools to edit your scanned image. Use these tools to edit the image. You can use the following tools to edit the image: Tools Saves the image. Cancels your last action.
Page 157 Tools For further details about the Image Editor program, refer to the on-line help. 7.18 SING RINTER IN Allows you to scale the image size; you can enter the size manually, or set the rate to scale porportionally, vertically or horizontally. Allows you to rotate the image;...
Page 158: Chapter 8: Maintenance
AINTENANCE This chapter provides information for maintaining your machine and the toner cartridge. This chapter includes: • Clearing the Memory • Adjusting Shading • Cleaning Your Machine • Maintaining the Toner Cartridge • Consumables and Replacement Parts • Replacing the ADF Rubber Pad...
Page 159: Clearing The Memory
Clearing the Memory You can selectively clear information stored in your machine’s memory. Press Menu on the control panel until “Maintenance” appears on the top line of the display. Press the scroll button ( Memory” on the bottom line and press Enter The first available menu item, “Clear All Mem.”...
Page 160: Adjusting Shading
Adjusting Shading When the scan unit becomes dirty, it can alter the shading value. If your copy has black lines or is blurred, adjust the shading setting. Load a sheet of white paper into the ADF. Press Menu on the control panel until “Maintenance” appears on the top line of the display.
Page 161: Cleaning The Inside
Cleaning the Inside During the printing process, paper, toner and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears or reduces these problems. Turn the machine off and unplug the power cord.
Page 162: Cleaning The Scan Unit
Cleaning the Scan Unit Keeping the scan unit clean helps ensure the best possible copies. We suggest that you clean the scan unit at the start of each day and during the day, as needed. Slightly dampen a soft lint-free cloth or paper towel with water.
Page 163 Wipe the roller surface with a soft cloth dampened with water. Carefully wipe the scanning glass with a soft dry cloth. If the glass is very dirty, first wipe it with a slightly dampened cloth, and then with a dry cloth. Be very careful not to scratch the glass surface.
Page 164: Maintaining The Toner Cartridge
Maintaining the Toner Cartridge Toner Cartridge Storage To get the most from the toner cartridge, keep the following guidelines in mind: • Do not remove the toner cartridge from its package until ready for use. • Do not refill the toner cartridge. The machine warranty does not cover damage caused by using a refilled cartridge.
Page 165: Redistributing Toner
Redistributing Toner When the toner cartridge is near the end of its life, white streaks or light print occurs. The LCD displays the warning message, “Toner Low.” You can temporarily reestablish the print quality by redistributing the remaining toner in the cartridge. Open the front cover.
Page 166: Replacing The Toner Cartridge
Replacing the Toner Cartridge When the toner eventually runs out, only blank pages print when a print job is sent or when a fax is received. At this stage, the toner cartridge needs to be replaced. The display on the control panel shows the warning message, “Toner Empty”...
Page 167: Setting The Notify Toner Option
Setting the Notify Toner Option If you have set the Notify Toner menu option to “On”, your machine automatically sends a fax to your service company or the dealer to notify them that your machine requires a new toner cartridge when the toner cartridge needs to be replaced. The fax number is preset by your dealer when you bought your machine.
Page 168: Cleaning The Drum
Cleaning the Drum If there are streaks or spots on your print, the OPC drum of the cartridge may require cleaning. Before setting the cleaning procedure, make sure that paper is loaded in the machine. Press Menu on the control panel until “Maintenance” appears on the top line of the display.
Page 169: Consumables And Replacement Parts
Consumables and Replacement Parts From time to time, you needs to replace the toner cartridge, roller, and fuser unit to maintain top performance and to avoid print quality problems and paper feed problems resulting from worn parts. The following items should be replaced after you have printed a specified number of pages: ADF rubber pad ADF roller...
Page 170: Replacing The Adf Rubber Pad
Replacing the ADF Rubber Pad You can purchase a ADF rubber assembly from a Muratec dealer or the retailer where you bought your machine. Open the control panel by gripping it on the bottom edge and pulling it. Disconnect the support on the left side of the machine from the control panel and lift the control panel up to the complete open position.
Page 171 Using a screw driver, press the slots on the ADF rubber plate to unlatch the plate and the ADF rubber. Align the holes on the new ADF rubber and the plate, and insert the tabs on the plate into the slot on the machine. Press them until they are lached.
Page 172: Chapter 9: Troubleshooting
ROUBLESHOOTING This chapter gives helpful information for what to do if you encounter an error. This chapter includes: • Clearing Document Jams • Clearing Paper Jams • Clearing LCD Error Messages • Solving Problems...
Page 173: Clearing Document Jams
Clearing Document Jams When a document jams while it passes through the ADF (Automatic Document Feeder), “Document Jam” appears on the display. Input Misfeed Remove the remaining documents from the ADF. Pull the jammed document gently out of the ADF. Load the documents back into the ADF.
Page 174: Clearing Paper Jams
Pull the document gently out of the ADF. Close the control panel. Then load the documents back into the ADF. Clearing Paper Jams When a paper jam occurs, “Paper Jam” appears on the display. Refer to the table below to locate and clear the paper jam. Message Location of Jam [Paper Jam 0]...
Page 175: In The Paper Tray
In the Paper Tray Open and close the front cover. The jammed paper automatically exits the machine. If the paper does not exit, continue to step 2. Pull the paper tray open. Remove the jammed paper by gently pulling it straight out. If there is any resistance and the paper does not move when you pull or if you cannot see the paper in this area, skip to the fuser area around the toner cartridge.
Page 176: In The Paper Exit Area
In the Paper Exit Area Open and close the front cover. The jammed paper automatically exits the machine. If the paper does not exit, continue to step 2. Gently pull the paper out of the front output tray. Skip to step 6. If there is any resistance and the paper does not move when you pull or if you cannot see the paper in the front output tray, continue to step 3.
Page 177: In The Fuser Area Or Around The Toner Cartridge
In the Fuser Area or Around the Toner Cartridge the machine. Open the front cover and pull the toner cartridge out, lightly pushing it down. Remove the jammed paper by gently pulling it straight out. Replace the toner cartridge and close the front cover. Printing automatically resumes.
Page 178: Tips For Avoiding Paper Jams
Tips for Avoiding Paper Jams By selecting the correct paper types, most paper jams can be avoided. When a paper jam occurs, follow the steps outlined in page 9.3. • Follow the procedures on page 1.12 when you load paper. Ensure that the adjustable guides are positioned correctly.
Page 179: Clearing Lcd Error Messages
Clearing LCD Error Messages Messages appears on the display to indicate the control panel to indicate the machine’s status or errors. Refer to the following table to understand the message’s meaning and correct the problem, if necessary. Messages and their meanings are listed in alphabetical order.
Page 180 There is a problem in the fuser unit. Open Heat Error [Over Heat] The memory is full. Memory Full The remote fax machine has not answered after several [No Answer] redial attempts. The one-touch or speed dial location you tried to use has no number assigned to it.
Page 181 Display The paper tray has run out [No Paper] Add Paper of paper. You are doing in the Add/ Cancel operation, but there Operation Not is no jobs waiting. Assigned Paper has jammed in the [Paper Jam 0] feeding area of the paper Open/Close Door tray.
Page 182: Solving Problems
Solving Problems The following chart lists some conditions that may occur and the recommended solutions. Follow the suggested solutions until the problem is corrected. If the problem persists, please call for service. Paper Feeding Problems Condition Paper is jammed during Clear the paper jam.
Page 183: Printing Problems
Printing Problems Condition Possible cause The machine The machine is not does not print. receiving power. The machine is not selected as the default printer. Check the machine for the following: • The front or rear cover is not closed. •...
Page 184 Condition Possible cause The machine The paper source selects print selection in the printer materials from properties may be the wrong incorrect. paper source. A print job is The job may be very extremely complex. slow. Half the page The page orientation is blank.
Page 185 Condition Possible cause Pages print, The toner cartridge is but are blank. defective or out of toner. The file may have blank pages. Some parts, such as the controller or the board, may be defective. The setting in the illustrations software application is print wrong.
Page 186: Printing Quality Problems
Printing Quality Problems Dirt inside of the machine or improper paper loading may reduce the print quality. See the table below to clear the problem. Condition Light or faded If a vertical white streak or faded area appears on the page: print •...
Page 187 Condition Vertical lines AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc Gray background AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc Toner smear Vertical repetitive defects AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc 9.16 ROUBLESHOOTING Suggested solutions If black vertical streaks appear on the page: •...
Page 188 Condition Background Background scatter results from bits of toner distributed on scatter the printed page. • The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.
Page 189 Condition Wrinkles or creases Back of printouts are dirty Black pages Loose toner 9.18 ROUBLESHOOTING Suggested solutions • Ensure that the paper is loaded properly. • Check the paper type and quality. See “Paper Specifications” on page A.6. • Turn the stack of paper over in the paper tray. Also try rotating the paper 180°...
Page 190: Copying Problems
Condition Character Voids Character voids are white areas within the parts of characters that should be solid black: • If you are using transparencies, try another type of transparency. Due to the composition of the transparency, some character voids are normal. •...
Page 191: Scanning Problems
Condition Image rubs off the copy easily. Frequent copy paper jams occurs. Fewer copies from the toner cartridge than expected prints out. Scanning Problems Condition The scanner does not work. 9.20 ROUBLESHOOTING Suggested solutions • Replace the paper in the paper tray with paper from a new package.
Page 192: Faxing Problems
Condition The unit scans very slowly. Message appears on your computer screen: • “Device can't be set to the H/W mode you want.” • “Port is being used by another program.” • “Port is Disabled.” • “Scanner is busy receiving or printing data.
Page 193 • Make sure that the document is loaded in the ADF. • “TX” should show up on the display. • Check the other fax machine you are sending to, to see if it can receive your fax. • The fax machine sending you the fax may be faulty.
Page 194: Common Linux Problems
Common Linux Problems Problem The machine doesn't print The machine does not appear on the scanners list Possible Cause and Solution • Check if the printer driver is installed in your system. Open MFP configurator and switch to the Printers tab in Printers configuration window to look at the list of available printers.
Page 195 Problem The machine does not appear on the scanners list (continued) The machine doesn't scan 9.24 ROUBLESHOOTING Possible Cause and Solution • Check if the MFP port is not busy. Since functional components of MFP (printer and scanner) share the same I/O interface (MFP port), the situation of simultaneous access of different "consumer"...
Page 196 Problem I can't print when I • Since both Linux Printer Package and MFP driver make installed both Linux Print Package (LPP) and MFP driver on the same machine • If you still want to use both packages simultaneously, simultaneously. •...
Page 197 9.26 ROUBLESHOOTING...
Page 198: Appendix A: Specifications
PECIFICATIONS This chapter includes: • General Specifications • Scanner and Copier Specifications • Printer Specifications • Facsimile Specifications • Paper Specifications...
Page 199: General Specifications
General Specifications Item Automatic document feeder (ADF) ADF Document size Paper input capacity Paper output capacity Paper type Consumables Power requirements Power consumption Noise Warm-up Time Operating conditions Toner cartridge life SET dimension (W x D x H) Description Up to 30 sheets (weight: 75 g/m Width: 142 to 216 mm (5.6 to 8.5 inches) Length: 148 to 356 mm (5.8 to 14 inches) Paper tray: 250 sheets (weight: 75 g/m...
Page 200: Scanner And Copier Specifications
Item Weight Package Weight *Declared yield value in accordance with ISO/IEC 19752 Scanner and Copier Specifications Item Compatibility Scan method Scan resolution Scan length Scan width Mono bit depth Copy speed Copy resolution Zoom rate Multiple copies Halftone Description Net: 9.7Kg (including consumables) Gross: 11.7Kg (including consumables, accessories and package) Paper: 2.7 Kg...
Page 201: Printer Specifications
Printer Specifications Item Print method Print speed Paper size Print resolution Emulation PC Interface Compatibility Memory First printing time Description Laser Beam Printing Letter: 17 pages per minute A4: 16 pages per minute Paper tray: Letter, A4, Legal, Folio, A5, A6, B5 Manual feeder: Letter, Legal, A4, Folio, Executive, A5, B5, A6, A6 card, Post Card 4x6, Hagaki, Envelope 7-3/ 4, Envelope 9, Envelope 10, Envelope DL, Envelope C5,...
Page 202: Facsimile Specifications
Facsimile Specifications Item Compatibility Applicable line Data coding Modem speed Transmission speed Scan speed Paper size Resolution User Memory Halftone Auto dialer Description ITU-T Group 3 Public Switched Telephone Network (PSTN) or behind PABX MH/MR/MMR (ECM Mode) 33600/31200/28800/26400/24000/21600/19200/ 16800/14400/12000/9600/7200/4800/2400 bps with fall back Approx.
Page 203: Paper Specifications
Paper Specifications Overview Your machine accepts a variety of print materials, such as cut-sheet paper, including up to 100% recycled fiber content paper, envelopes, labels, transparencies and custom-size paper. Properties, such as weight, composition, grain and moisture content, are important factors affecting the machine’s performance and the output quality.
Page 204: Guidelines For Using Paper
Size (mm/in.) Labels Letter (215.9 x 279/8.5 x 11) A4 (210 x 297/8.27 x 11.69) Transparency films Letter (215.9 x 279/8.5 x 11) A4 (210 x 297/8.27 x 11.69) Card stocks A6 card (105 x 148/4.13 x 5.88) Post Card (101.6 x 152.4/4 x 6) Hagaki (100 x 148/3.94 x 5.83) Minimum size (custom) Maximum size (Legal)
Page 205: Paper Specifications
Symptom Jamming, damage to machine Problems with feeding OTES • Do not use letterhead paper printed with low-temperature inks, such as those used in some types of thermography. • Do not use raised or embossed letterhead. • The machine uses heat and pressure to fuse toner to the paper. Insure that any colored paper or preprinted forms use inks that are compatible with this fusing temperature (200 °C or 392 °F for 0.1 second).
Page 206: Paper Storage Environment
Paper Storage Environment Paper storage environmental conditions directly affect the feed operation. Ideally, the machine and paper storage environment should be at or near room temperature, and not too dry or humid. Remember that paper is hygroscopic; it absorbs and loses moisture rapidly. Heat works with humidity to damage paper.
Page 207 • Temperature: You should use envelopes that are compatible with the heat and pressure of the machine. • Size: You should only use envelopes within the following size ranges OTES • Use only the manual feeder to print envelopes. • You may experience some paper jams when using any media with a length less than ( 5.5 in.).
Page 208: Labels
OTES • For the best print quality, position margins no closer than 15 mm (0.6 in.) from the edges of the envelope. • Avoid printing over the area where the envelope’s seams meet. Envelope Storage Proper storage of envelopes helps contribute to print quality. Envelopes should be stored flat.
Page 209 NDEX adding documents 6.27 ADF (Automatic Document Feeder), load 4.3 ADF rubber pad, replace 8.13 automatic dialing group 6.18 one-touch 6.15 speed 6.16 automatic redialing 6.9 broadcasting faxes 6.22 canceling fax 6.8 print 3.5 scan 5.5 scheduled faxes 6.28 characters, enter 1.32 cleaning drum 8.11 inside 8.4...
Page 210 document 9.2 paper 9.3 Linux common problems 9.23 driver, install 7.4 printing 7.11 scanning 7.13 machine ID, set 1.31 memory, clear 8.2 MFP driver, install Linux 7.4 Windows 1.21 network printer, set 3.22 notifying toner low 8.10 one-touch dial dialing 6.16 storing 6.15 orientation, print 3.3, 7.12 output location, select 2.4...
Page 211 rear output slot, use 2.5 receiving a fax in Ans/Fax mode 6.12 in Fax mode 6.11 in Secure Receiving mode 6.29 in Tel mode 6.11 in the memory 6.14 redialing automaically 6.8 manually 6.9 reduced/enlarged copy 4.6 print 3.12 Remote Control Panel 6.36 reports, print 6.31 resolution fax 6.6...
