where network tools can be used to capture and monitor your network data. The Management/Network port
provides access to the web UI and CLI, from where system and module settings can be managed.

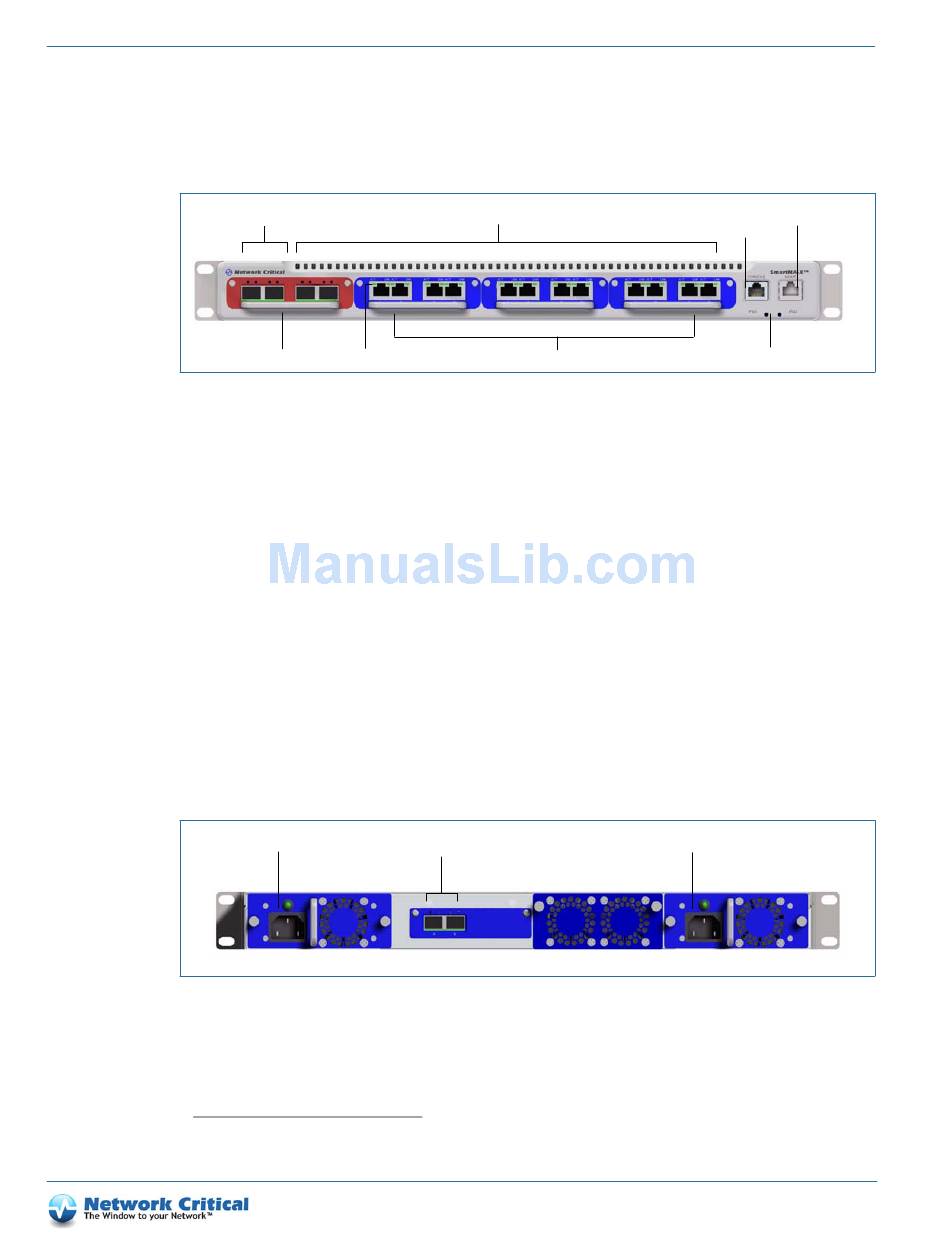

Figure 1-1 SmartNA-X front view
TAP modules – Hot-swappable and fully configurable TAP modules available with Copper, Single mode Fiber,
Multi-mode Fiber, or SFP/SFP+ cage ports.
10G /1G/100M/10M Ports – 10 Gbit/s (two front, two rear), 1 Gbit/s, 100 Mbit/s and 10 Mbit/s interfaces to
access data flowing across a computer network and to connect network tools running packet analysis software or a
dedicated capturing appliance. These ports do not have IP or MAC addresses and are transparent to other network
appliances
mode.
Management/Network Port – Provides network access to the web UI and CLI management interfaces. Default IP
address is 192.168.254.100.
Console/Serial Port – Provides local access to the commnad line interface via a serial cable.
Port status LEDs – Indicates link state and activity.
Power LEDs – Indicate operational PSUs.
Power supply units (PSUs) – Optional dual independent PSUs (AC 100V–240V or DC -48V). PSU-1 only
present if a single PSU is installed in the chassis. Removable power supplies are to be used in the SmartNA-X
system only
Figure 1-2 SmartNA-X rear view
1.Flow control and error packets are dropped by the TAP ports.
10 GBIT/S PORTS
10G/1G TAP MODULE PORT STATUS LEDS
1
. Copper port pairs support 'TAP' mode for integrated failsafe and Link Failure Propagation (LFP)
.
PSU-2
S NA™ 10G N
MART
1 GBIT/S PORTS
1G TAP MODULES
10 GBIT/S PORTS
DRAFT
A (S NA-X)
ETWORK CCESS MART
MANAGEMENT/NETWORK T PORT
CONSOLE/SERIAL PORT
POWER LEDS
PSU-1
