This appendix provides specification details for the SmartNA-X chassis and each of the TAP modules that are
available for use with the SmartNA-X system. It contains the following sections:
• SmartNA-X chassis, page 209
• 10 Gbit/s TAP module (SFP+ & SFP), page 210
• 1 Gbit/s TAP module (RJ45 & RJ45), page 211
• 1 Gbit/s TAP module (LC & RJ45), page 212
• 1 Gbit/s TAP module (RJ45 & SFP), page 212
• 1 Gbit/s TAP module (LC & SFP), page 213

SmartNA-X chassis

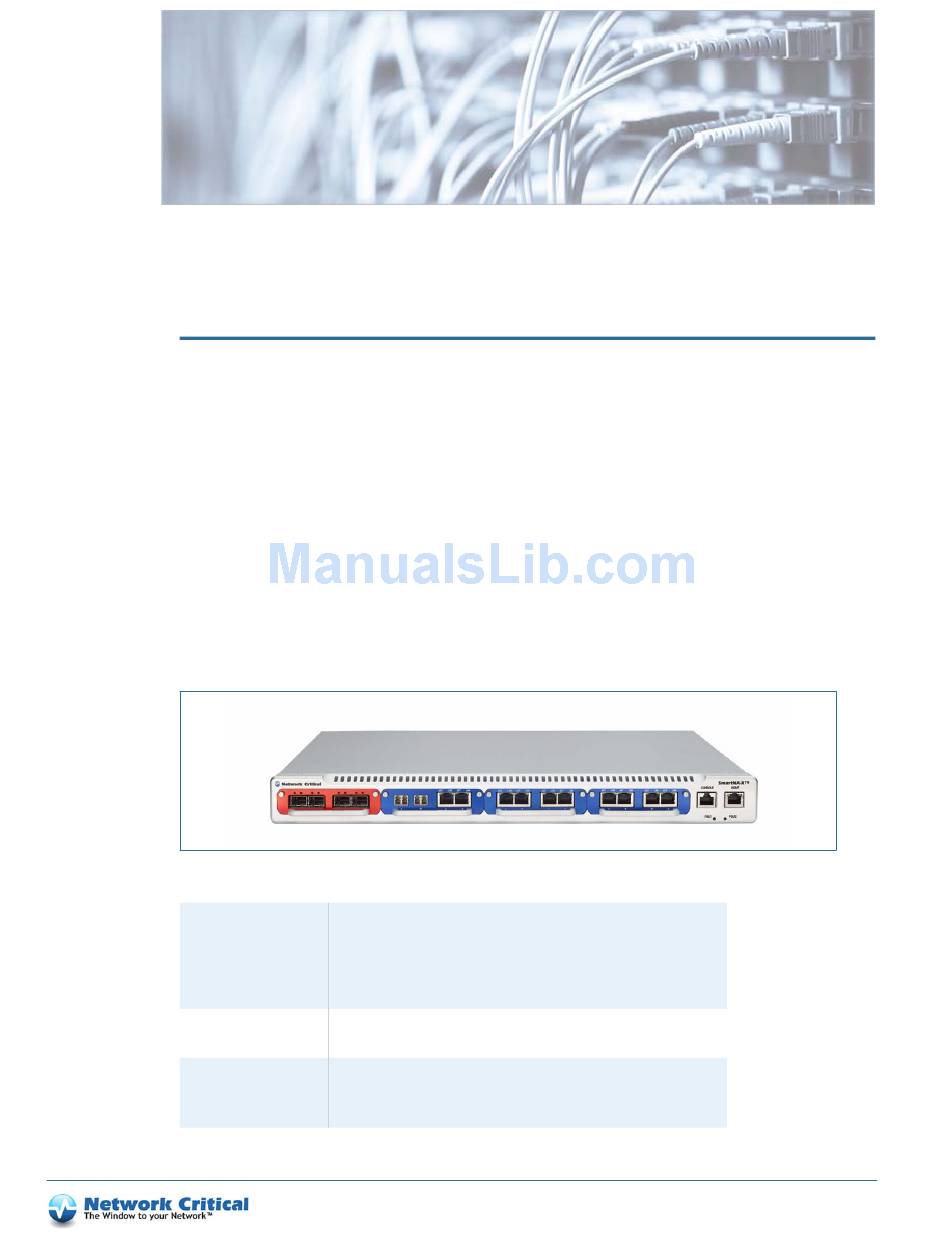

Figure C-1 SmartNA-X chassis
Ports
Slots
Power
Management ports: 1 Ethernet, 1 serial
User definable: (copper, single-mode fiber, multi-mode fiber, SFP/SFP+ cage
ports available)
Max. 16 x 1Gb
Max. 4 x 10Gb
1 x 10G/1G module
3 x 1G module
AC: 100V-240V
DC: -42V to -63V
30W (no modules present)
