Table B-1 System identity tab options (continued)
Option
System IPv6 address
System MAC address
System link local
address
IPv6 prefix length
IPv6 gateway

Mapping tab

The Mapping tab
adding and removing filters. Maps are created by dragging from the source to destination port. Selecting the edit
icon for a map is the same as clicking on the map on the diagram. If there are too many maps to draw them all, the
extra ones will still appear on, and therefore be accessible from, this list.

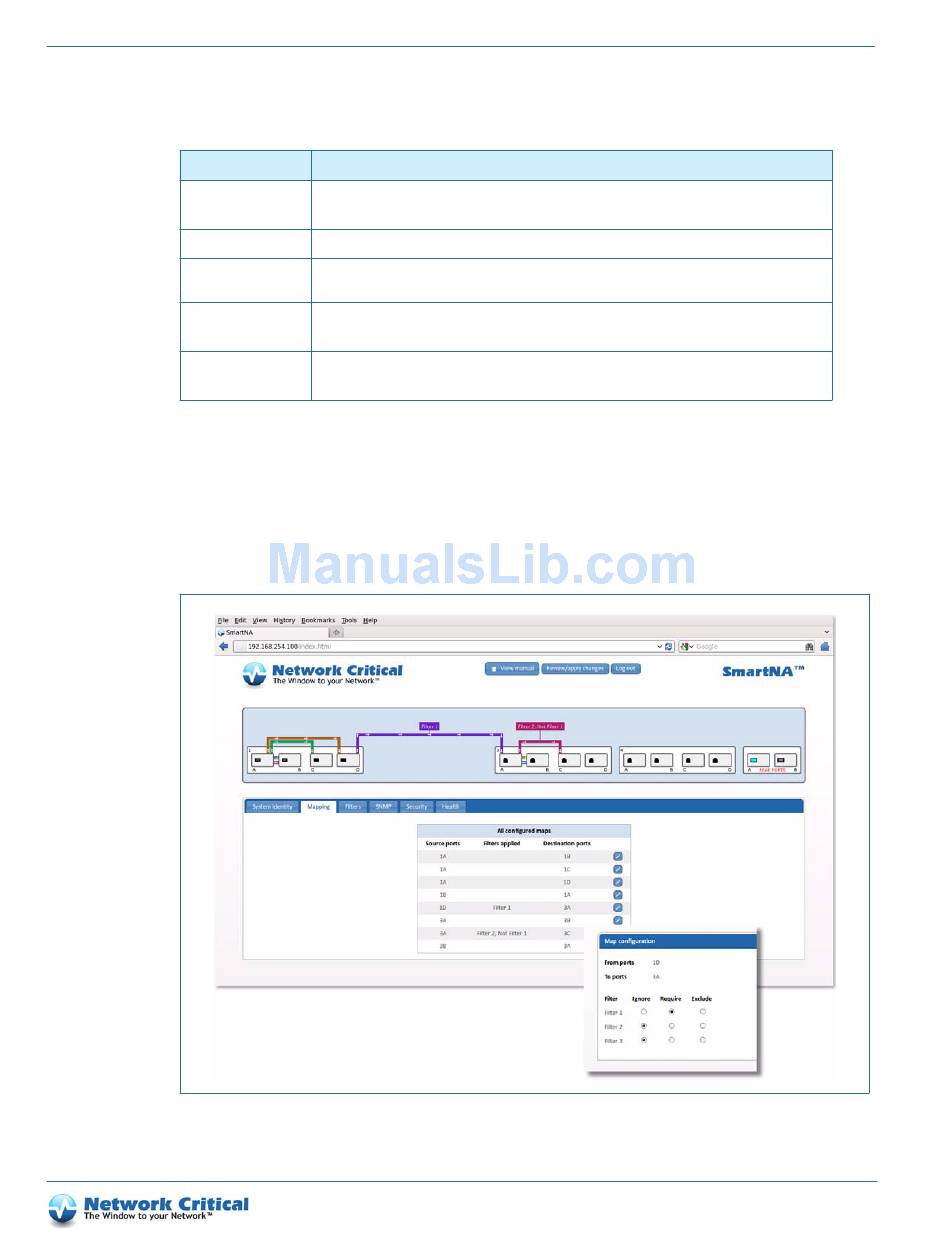

Figure B-2 The Mapping tab showing the Map configuration window
| M
APPING TAB
Description
Sets the device network interface IPv6 address. Default: None.
The current active gateway address is shown in the adjacent Active IPv6 address field.
Shows the SmartNA-X MAC address.
Shows the IPv6 link local address.
Sets the IPv6 prefix length. Default: None.
The current active gateway address is shown in the adjacent Active IPv6 prefix length field.
Sets the IPv6 network gateway address.
The current active gateway address is shown in the adjacent Active IPv6 gateway field.
