More complex port maps can also be created using several TAPs. For example, Figure 7-3 shows two TAP pairs on
ports 1AB and 3AB aggregated to ports 1C and 1D.

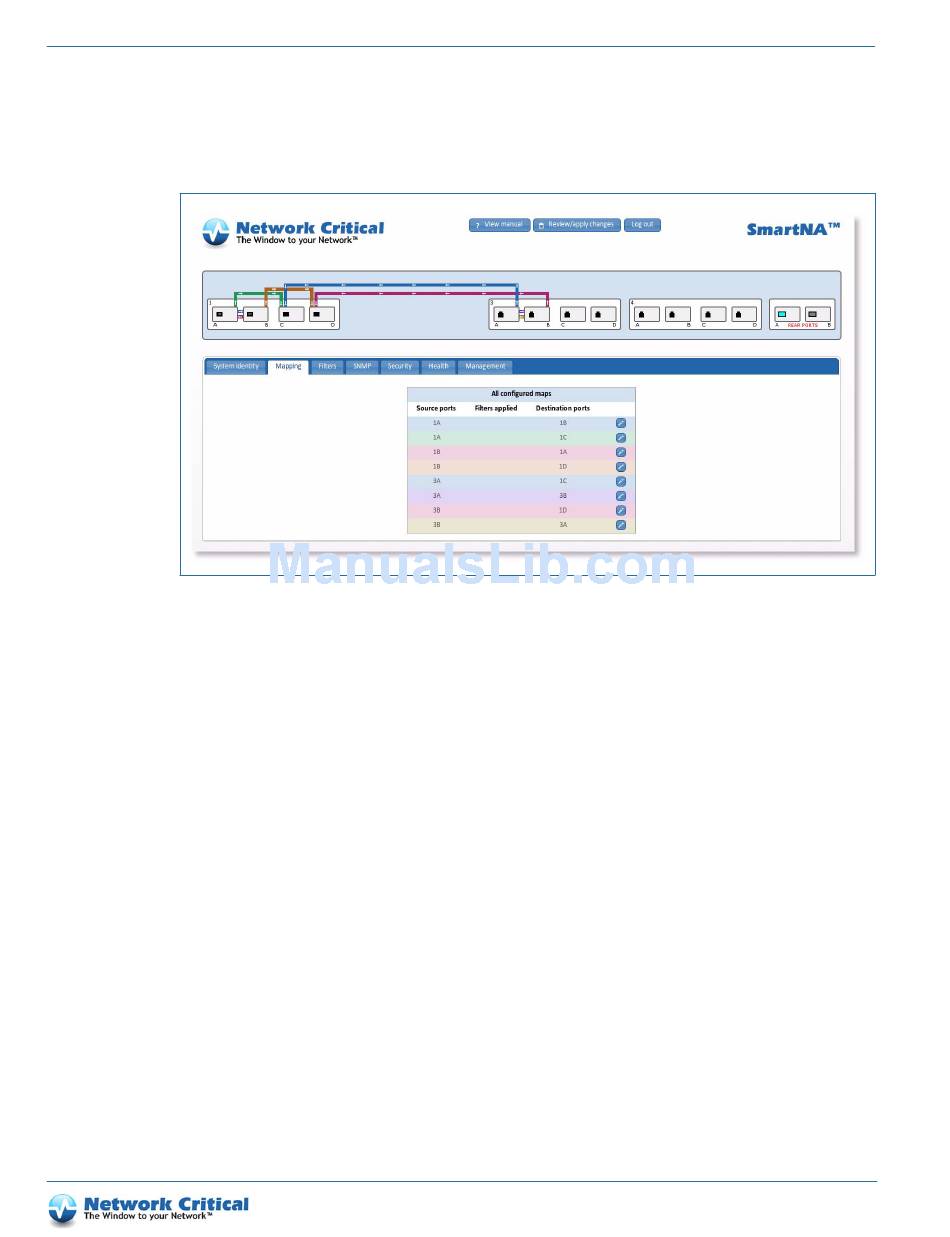

Figure 7-3 Multiple TAP aggregation map

Creating port maps

Port maps can be created in the web UI or CLI, depending on your working preference. Users may find it easier to
create maps in a browser, as you can simply click and drag between source and destination port(s) to create maps.
On the other hand, creating maps in the CLI allows you to use a series of simple commands that can be scripted if
required.
