Logging in to the CLI locally
If you need to configure SmartNA-X locally (without connecting to a wired LAN), you can connect a PC to the
SmartNA-X Console/Serial port using a DE-9 female to 8P8C (RJ45) serial management cable (supplied). To
open the CLI by connecting to the SmartNA-X Console/Serial port, follow these steps:
Connect the supplied DE-9 female to 8P8C serial management cable to the Console/Serial port on SmartNA-X
1.
and to the COM port on a computer.
Set up a terminal emulator to communicate with SmartNA-X. Use the following settings for the terminal
2.
emulator connection: 9600 baud, 8 data bits, no parity, 1 stop bit (8N1).
Log in to the CLI using your SmartNA-X username and password:
3.
Username : admin
Password : ******
Login over serial connection
Command Line Parser
Built on Sep 25 2012 at 15:29:17 from svn revision 263M
Running at Authorisation level 3
User admin logged in from serial-connection
CONTROLLER>
When you have finished entering commands in the CLI exit to allow access to other users:
4.
CONTROLLER>exit
Exiting CLI
Connection to 192.168.254.100 closed.
user@example.com ~#
NOTE: If the Console cable is disconnected before the session is terminated, the session over the Console/Serial
port will stay active and prevent any login to the Management/Network port via web UI or CLI. If this happens,
re-connect to the system using the Console/Serial port and shut down the session properly by logging out.

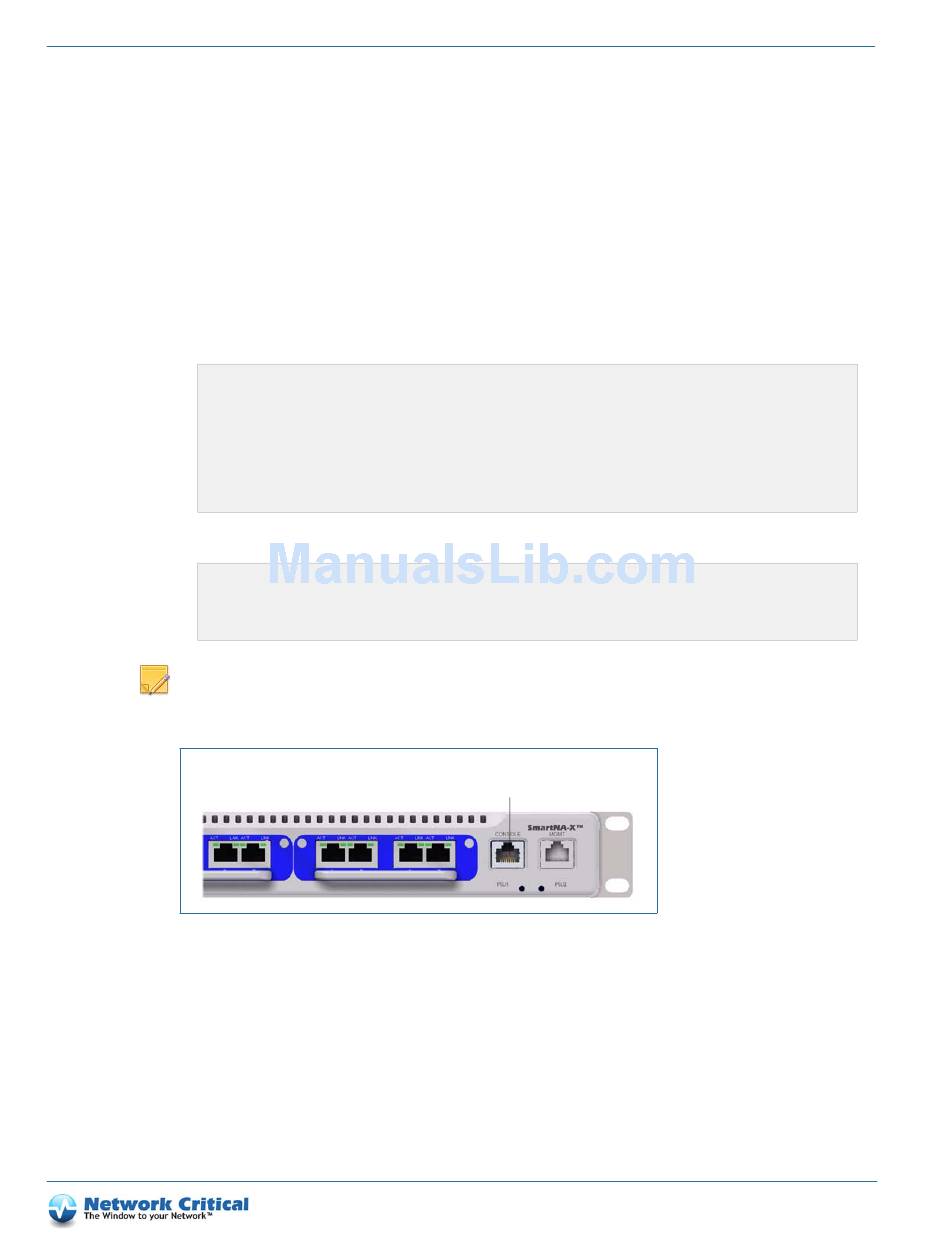

Figure 4-2 SmartNA-X Console/Serial port

Configuring SmartNA-X for the first time

To secure your SmartNA-X against unauthorized access and to prepare it for attaching to your live data networks,
an Administrator may wish to make the following initial configuration changes:
• Restore the system to a known state of configuration, as described in the
configurations" section on page 31
S NA-X
ONFIGURING MART FOR THE FIRST TIME
S NA™ 10G N
MART
Figure 4-2 shows the location of the Console/Serial port.
CONSOLE//SERIAL PORT
DRAFT
A (S
ETWORK CCESS MART
"Restoring default settings and custom
NA-X)
23
