EPSON AcuLaser CX11/CX11F

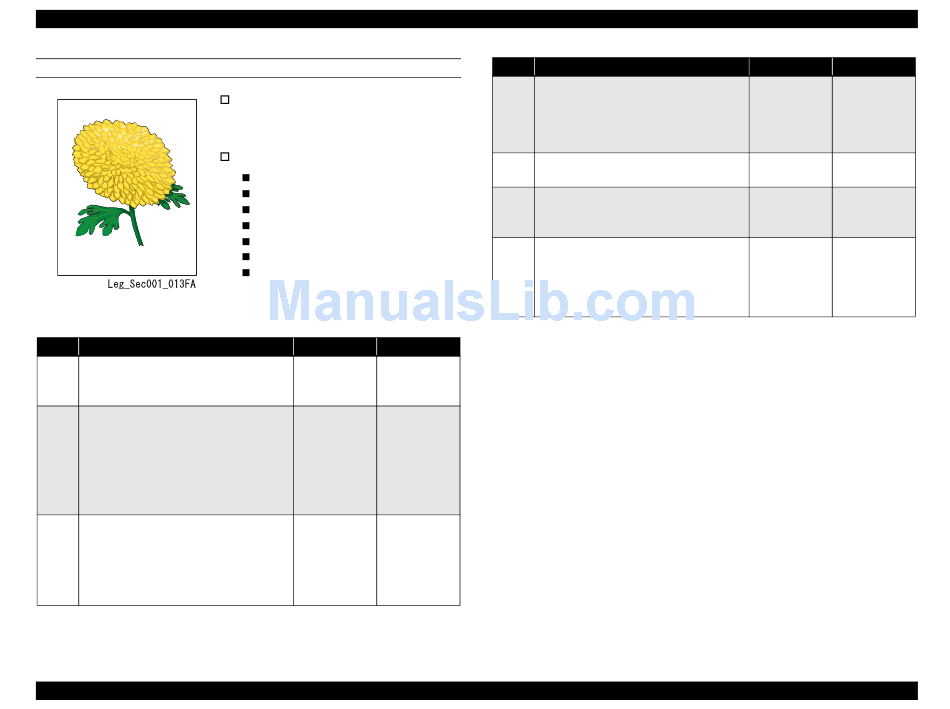

FIP-P12 Skew Print

Before starting troubleshooting, inspect the feed path of the printer paper. Check the
paper feed path for metal staples, paper clips, paper scraps, and other foreign matter.
Step Check
Check of printer installation surface
1
Is the printer installed on level surface?
Also, are the printer's feet attached correctly?
Check of paper feed
2
Remove the Paper Cassette, and load paper
correctly.
Attach the Paper Cassette correctly into the
printer.
Make a test print of the problem image.
Is the image printed normally?
Operation check of PLATE ASSY
3
BOTTOM 500 in the Paper Cassette
Remove the Paper Cassette.
Does the PLATE ASSY BOTTOM 500 in the
Paper Cassette rise up correctly without any
inclination on the left or right sides?
TROUBLESHOOTING
Problems
The printed image is not parallel to both sides
of the paper.
ESS and possible parts that caused the error
500 PAPER CASSETTE ASSY
PLATE ASSY BOTTOM 500
Photoconductor Unit
2ND BTR ASSY
FUSER ASSY
PWBA ESS
500 FEEDER ASSY OPTION
Yes No
Go to Step [2]. Correct the
inappropriate
installation.
End of procedure Go to Step [3].
Go to Step [4]. Re-attach
PLATE ASSY
BOTTOM.
(p.444)
Step Check
Check the Rollers on the paper feed path for
4
damage and wear, and check attachment.
Are Rollers on the paper feed path normal
without any dirt, damage or wear?
Also, are those Rollers attached correctly?
Check of Photoconductor Unit attachment
5
Is Photoconductor Unit attached correctly?
Execution of a test print
6
Make a test print of the problem image.
Is the image printed normally?
Check after replacement of Photoconductor
7
Unit
Replace Photoconductor Unit.
Make a test print of the problem image.
Is the image printed normally?
Printer
Revision B
Yes No
Go to Step [5]. Clean and re-
attach, or replace
the Roller in
question, and go
to Step [5].
Go to Step [6]. Re-attach, and go
to step [6].
End of procedure Go to Step [7].
End of procedure Replace "ESS and
possible parts that
caused the error".
