Epson SureColor P800, Stylus Pro 9900 Manual

HCP Digital Lab

Equipment

The Digital Lab at HCP features 8 Apple Mac Mini workstations (all installed with a standard configuration) equipped with the following:

  • 24-inch wide-gamut, self-calibrating Eizo ColorEdge CG247X LCD monitors that accurately reproduce 99% of Adobe RGB color space.
  • Photoshop, Lightroom Classic, Premiere Pro, InDesign, Illustrator, and other Adobe Creative Cloud applications running on the latest macOS.
  • 17-inch Epson SureColor P800 printer for archival inkjet printing

In addition, the digital lab offers access to:

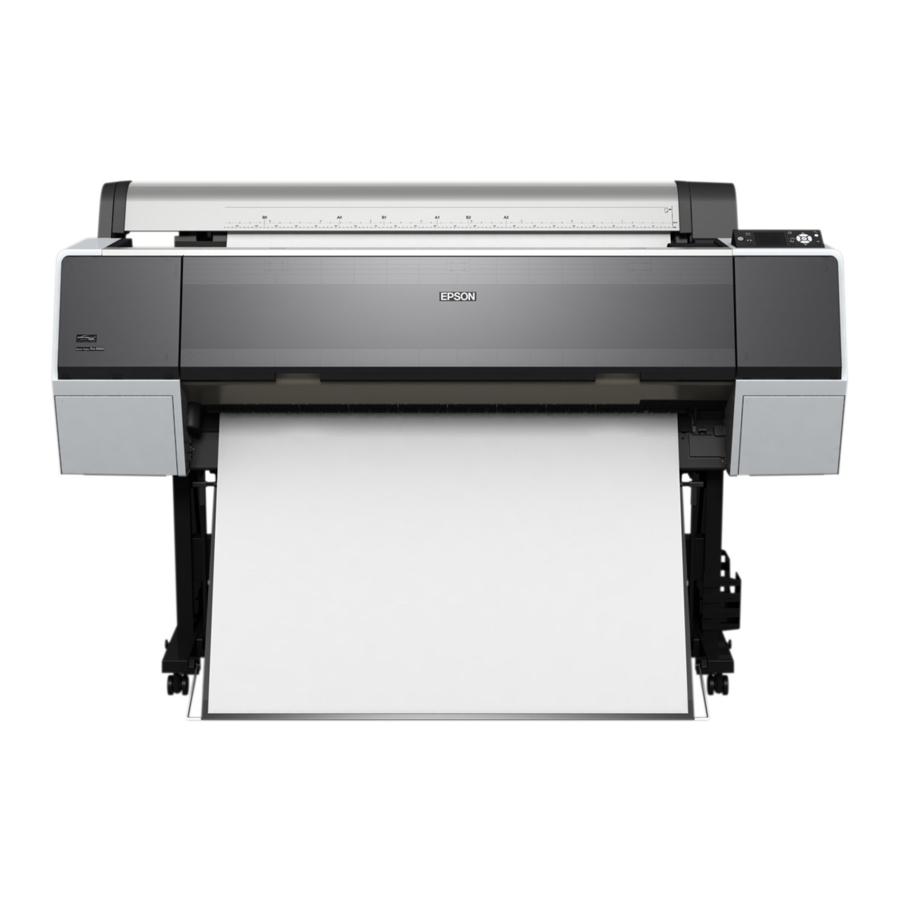

  • A 44-inch Epson Stylus Pro 9900 printer for large archival inkjet prints
  • An Epson V850 Pro flatbed scanner - 6400 dpi optical resolution

Supplies

Ink Cartridges:
HCP does its best to maintain an inventory of ink for all of the photo printers.
Ink Cartridges are replaced only by HCP staff members.
Digital Lab users should NOT attempt to replace ink by themselves.

Printing Paper:
All lab users need to supply their own paper for printing.
Printing paper stored in HCP's Digital Lab is reserved for usage in classes and/or HCP exhibitions.

Preparing the Device

Epson SureColor P800

  1. Turn on the printer using the power button.
  2. Check the ink levels indicated by the red circle. (fig. 1)
  3. Open up the printer to the 'ready' position. (fig. 2, 3)
    Preparing the Epson SureColor P800 - Step 1
  4. Load your desired paper in the paper feeder above the printer indicated by the red circle. (fig. 3)
    Do not load more than 1 sheet at a time as jamming can occur.
    Tip: Epson SureColor P800 can only for paper sheets up to 17"
  5. Move the gray guide to fit your paper size. (fig. 4)
    Preparing the Epson SureColor P800 - Step 2
  6. From the dialog screen, select your Paper Type and Paper Size. (fig. 5)
  7. Change the black inks to the appropriate setting matching your paper type using the button marked by a white circle. (fig. 1).
    Matte Black (MK) should be used for matte papers and Photo Black (PK) can be used for all other papers.
  8. The printer is now ready to print!

Epson Stylus Pro 9900

Roll Paper

  1. Turn on the printer indicated by the power button.
  2. Check the ink levels (fig. 1).
  3. Take out the black ends located on top of the printer and inset then into your paper roll on both sides (fig. 2, 3, 4).
    Preparing Stylus Pro 9900 Roll Paper - Step 1
  4. Insert your roll of paper into the paper roll section on the top of the printer and lock it into position (fig. 5).
  5. Select the roll paper icon (fig. 6). Insert your paper until it sticks out from the bottom (fig. 7).

    Preparing Stylus Pro 9900 Roll Paper - Step 2
  6. Press the paper lock button from step 5 to lock your paper into place. From the control panel, press the paper lock button to unlock the inner guide. A light will appear indicating it is unlocked (fig. 8).
  7. A dialog box will appear asking if your paper settings are correct. If they are not, Select NO and choose your paper type. (fig. 9, 10)
    Note: Be sure to choose the paper type you selected also while printing (See "Printing from Photoshop").
    Preparing Stylus Pro 9900 Roll Paper - Step 3
  8. You can find your best options by searching the paper's website and looking for their suggestions.
  9. The printer is now ready to print!

Tip
If you don't know your paper type, choosing Premium Luster 260 works for most semi-gloss papers, Premium Glossy 250 for most glossy papers, and Enhanced Matte for most matte papers.

Sheet Paper

  1. Turn on the printer indicated by the power button.
  2. Check the ink levels. (fig. 1)
  3. Make sure no roll paper is loaded to the printer.
  4. If the roll paper icon is shown, press the left arrow to switch to sheet feed. (fig. 2)

  5. Close the roll paper enclosure to show the measure guides for sheet paper. Insert your paper and be careful to align with the guide measurements. (fig. 3)
  6. Once the paper is in place, press the down arrow indicated by the white circle on the control panel to load it. (fig. 2)
  7. A dialog box will appear asking if your paper settings are correct. If they are not,
    Select NO and choose your Paper Type. (fig. 9, 10)
    Preparing the Stylus Pro 9900 Sheet Paper
    Note: Be sure to choose the paper type you selected also while printing (See "Printing from Photoshop").
  8. You can find your best options by searching the paper's website and looking for their suggestions.
  9. The printer is now ready to print!

Tip
If you don't know your paper type, choosing Premium Luster 260 works for most semi-gloss papers, Premium Glossy 250 for most glossy papers, and Enhanced Matte for most matte papers.

Selecting Your Paper Type

  1. Select the menu option from the control panel. Navigate to Paper Setup -> Paper Type. (fig. 1, 2, 3, 4)
    Selecting Your Paper Type
  2. Select the paper type for your paper. You can find your best options by searching the paper's website and looking for their suggestions.

Tip
If you don't know your paper type, choosing Premium Luster 260 works for most semi-gloss papers, Premium Glossy 250 for most glossy papers, and Enhanced Matte for most matte papers.

Printing from Photoshop

  1. Open Adobe Photoshop with your image edited and ready to print.
  2. Choose your desired output size by navigating to Image at the top-left (fig. 1) and choosing Image Size (fig. 2)
    Printing from Photoshop - Step 1
  3. Input your desired size in Width and Height. Input 240 or 300ppi and select OK. (fig. 3)
    Printing from Photoshop - Step 2

Tip
If you can't get your desired size to match up, try copping your image to the equivalent ratio and/or resize it making sure your picture can fit into the size of your printing paper.

  1. Navigate to File at top-left menu and choose Print (fig. 4)
    Printing from Photoshop - Step 3
  2. Under Color Handling, Select Photoshop Manages Colors indicated by the number 1 (fig. 5). This should allow access to Printer Profiles.
    Printing from Photoshop - Step 4
  3. Under Printer Profile indicated by number 2 (fig 5), select your desired profile for your paper.
  4. Go to Print Settings... indicated by the number 3.
  5. Select the correct printer you will be using at the very top. Choose the exact paper size you will be printing on (fig. 6).
    Printing from Photoshop - Step 5

Tip
If you choose Printer Manages Colors from the Printer Setup Dialog box in the beginning, Color Matching and Advanced Color Settings will become accessible.
This isn't recommended unless you have trouble with your paper profiles.

  1. Select Printer Options and then Printer Settings (fig. 6).
  2. Under Page Setup, select either Roll Paper or Sheet depending on what paper and printer you are using (fig. 7)
    Printing from Photoshop - Step 6

PLEASE NOTE:
All lab users need to supply their own paper for printing.
Printing paper stored in HCP's Digital Lab is reserved for educational courses and workshops and/or printing HCP Exhibitions purposes only.

  1. Under Media Type, select the Paper Type you specified when you set up the printer. You can find your best options by searching the paper brand's website and looking for their suggestions.
  2. Select SuperPhoto – 2880 dpi, Finest Detail, and High Speed (High Speed is optional).
  3. Press OK, Save, and Print!

Tip
High Speed* will allow the printer to print on each pass-through. This will double your print speed but might not be the best choice for experimental papers, very thin papers, or transparencies.

Printing from Lightroom

  1. Open Adobe Lightroom with your image edited and ready to print.
  2. Select the Print module in the upper right-hand corner. This will displace the Printing Interface in Adobe Lightroom, as seen to the right (fig. 1).
    Printing from Lightroom - Step 1
  3. Select Single Image/Contact Sheet. (fig. 2)
  4. Scroll down the Printing Interface until you see the Print Job section (fig. 3). Make sure you select the correct Media Type - either Matte or Glossy (fig. 3).
  5. Under Color Management, select Managed by Printer next to Profile and click Other.. . (fig. 4)
    This will allow you to select your preferred printing profile.
  6. Choose the printing profile that matches your paper type and printer model (fig. 5). After choosing the correct profile, press OK.
    Printing from Lightroom - Step 2

Tip
In some cases, you may not be able to find the exact printing profile for your paper type. If that happens, use the profile that seems to be closest to your paper type.

  1. Click the Printer button at the bottom of the Printing Interface (fig. 6). This will display the Print dialogue box (fig. 7).

    Printing from Lightroom - Step 3
  2. Make sure that you have the correct printer selected, indicated by the number 1 (fig. 7). After you've selected the correct printer, click the " " button next to Printer Settings indicated by the number 2 to select your preferred paper and ink settings (fig. 8).
    Printing from Lightroom - Step 4
  3. Select the paper type you will be using under Media Type, indicated by 3 (fig. 8).
  4. Next, change your Output Resolution (indicated by 4), to SuperPhoto – 2880dpi.
  5. Lastly, make sure that the High Speed and Mirror Image boxes are unchecked, and the Finest Detail box is checked, indicated by 5 (fig. 8).
  6. Once you're finished, click the OK button at the bottom right corner (fig. 8).
  7. You will return to the Print dialogue box. Now that you are ready, click Print at the bottom right corner.

Problem Solving

Your Unit is Out of Ink

HCP does its best to maintain and inventory of ink for all the printers in the lab. If the printer you are using runs out of ink, please ask an HCP staff member present in the lab or at the front desk to replace the ink cartridge for you.
Digital Lab users should NOT attempt to replace ink cartridges by themselves.

Lines Show Up in Your Prints

If your Epson printer is printing faint images, skipping lines, or is streaking your image with lines, chances are you have a clogged nozzle -- a common and easy to solve problem.

Clean the printer's nozzles according to the following steps:

  • Before doing anything else, make sure the printer isn't showing any errors on the LCD screen.
  • Insert a letter-size (8.5"x11") paper for test printing into the paper feeder.
  • Press the Home button and select Setup then select Maintenance.
  • Select Printhead Nozzle Check.
  • Your printer will produce a page with four colored grids designed to illustrate which nozzles are blocked (and which are not).
  • If no gaps are identifiable and all lines look solid, select Done.
  • If you do identify any gaps or some lines are faint, select Clean the printhead and repeat the process for another cleaning cycle.


Never turn off your printer during a cleaning cycle. Doing so can cause permanent damage to the unit!

Epson printer models feature an efficient cleaning cycle that will usually clean out the nozzles in 1-2 cycles.

Your Prints and the Pictures on Screen Look Different

HCP's screen and printers are calibrated on a regular basis, so the main reasons that might cause this problem are

  1. choosing Printer Manages Colors
  2. choosing the wrong Printer Profile that does not match your printer or printing paper (see "Printing from Photoshop" for both), or
  3. choosing the wrong black ink (see "Preparing the Device - Epson SureColor P800").

To fix this problem make sure to select Photoshop Manages Colors as well as the most accurate Printing Profile. Please note all Epson SureColor P800 profiles start with the letters SC (stands for SureColor).
In addition, please refer to "Preparing the Device - Epson SureColor P800" to check your black ink settings (Matte Black or Photo Black) and adjust them if needed.

Your Print is Coming Out Sideways

This problem is caused due to using incorrect Paper Size setup, and is common while printing from Adobe Photoshop on the Epson Stylus Pro 9900 printer.

How to fix if Print Comes Out Sideways - Step 1
To check your paper size setup, first open the main print module by navigating to File > Print menu, or pressing Command + P. Once the Print dialogue box comes up, press on Print Settings located at the top section (fig. 1)

How to fix if Print Comes Out Sideways - Step 2
The Print Settings dialogue box will pop up. In this new dialog box, click the " " button next to Paper Size and select Manage Custom Sizes... (fig. 2).

How to fix if Print Comes Out Sideways - Step 3
When inputting your paper size, set the Width: to the width of the paper (roll or sheet) in inches, regardless of your actual image width. Once making sure the Width is set correctly, press OK.

Tip
For example:
When printing a 24" x 16" image on a 36" roll, set your Width: to 36 inches

Your Print is Coming Out Crooked/Askew

Epson ColorSure P800: Reposition your paper sheet in the paper feeder and make sure the printer's gray paper guide is positioned properly (see "Preparing the Device - Epson SureColor P800").
Epson Stylus Pro 9900: Unlock your paper role, re-insert securely into the printer, and make sure to lock and secure it properly using the inner guide (see "Preparing the Device - Epson SureColor P800").

Your Preferred Printing Profile is Unavailable

In the event your preferred printing profile in not installed on the Digital Lab standard working station, please use the printing profile closest to your paper. In addition, you may email us at education@hcponline.org with a request to add this profile in the next software update. Print profiles may be added to the Digital Lab workstation's standard configuration at HCP's discrepancy. HCP cannot guarantee we will be able to add each and every printing profile to our computers.
