148 C 14: MSTP C
HAPTER
Basic MSTP
Terminologies
ONFIGURATION
MSTP supports mapping VLANs to MST instances by means of a
■
VLAN-to-instance mapping table. MSTP introduces "instance" (integrates
multiple VLANs into a set) and can bind multiple VLANs to an instance, thus
saving communication overhead and improving resource utilization.
MSTP divides a switched network into multiple regions, each containing
■
multiple spanning trees that are independent of one another.
MSTP prunes a ring network into a network with tree topology, preventing
■
packets from being duplicated and forwarded in a network endlessly.
Furthermore, it offers multiple redundant paths for forwarding data, and thus
achieves load balancing for forwarding VLAN data.
MSTP is compatible with STP and RSTP.
■
Figure 49 illustrates basic MSTP terms (assuming that MSTP is enabled on each
switch in this figure).

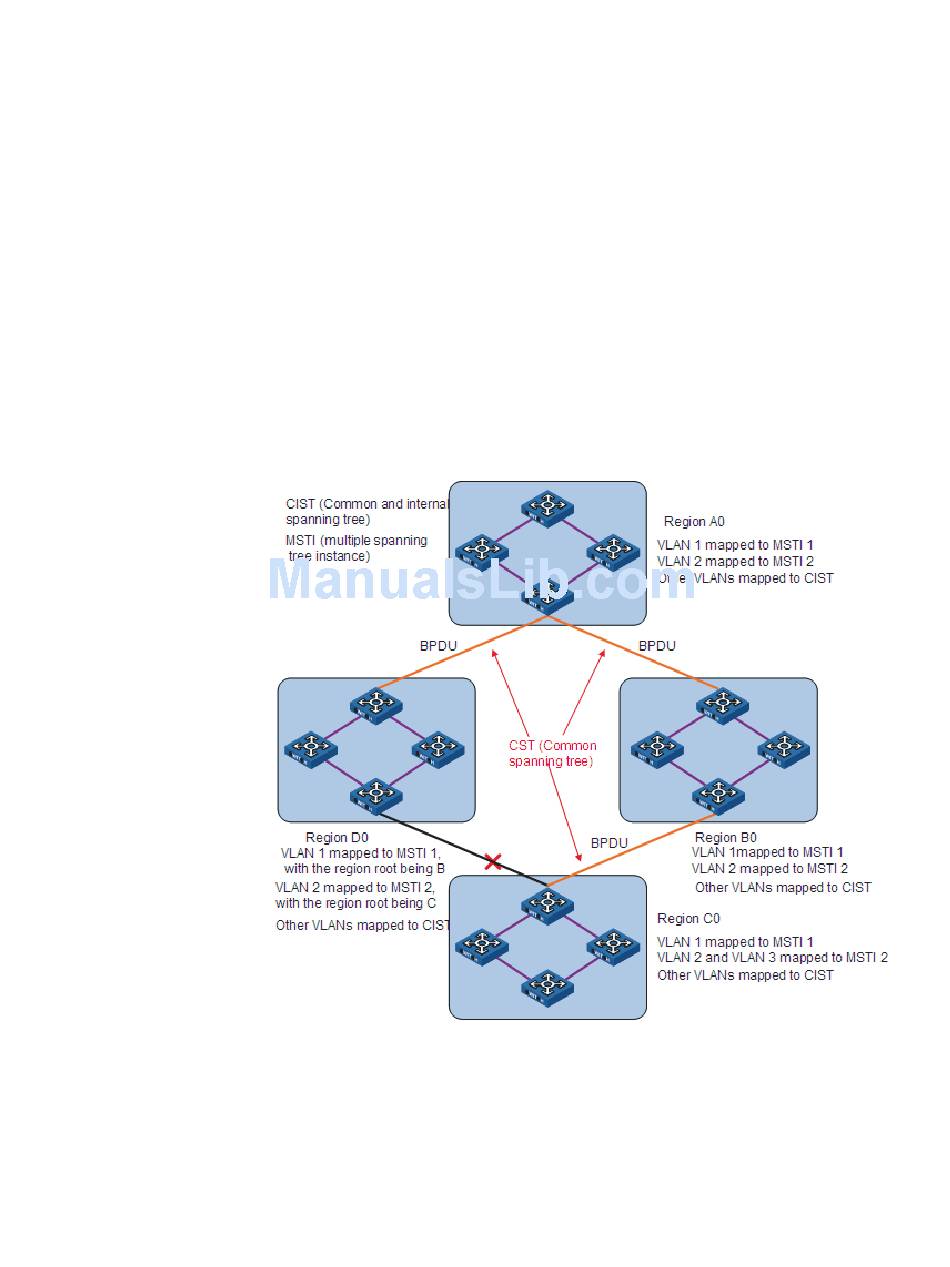

Figure 49 Basic MSTP terminologies
MST region
A multiple spanning tree region (MST region) comprises multiple
physically-interconnected MSTP-enabled switches and the corresponding network
segments connected to these switches. These switches have the same region
name, the same VLAN-to-MSTI mapping configuration and the same MSTP
revision level.
