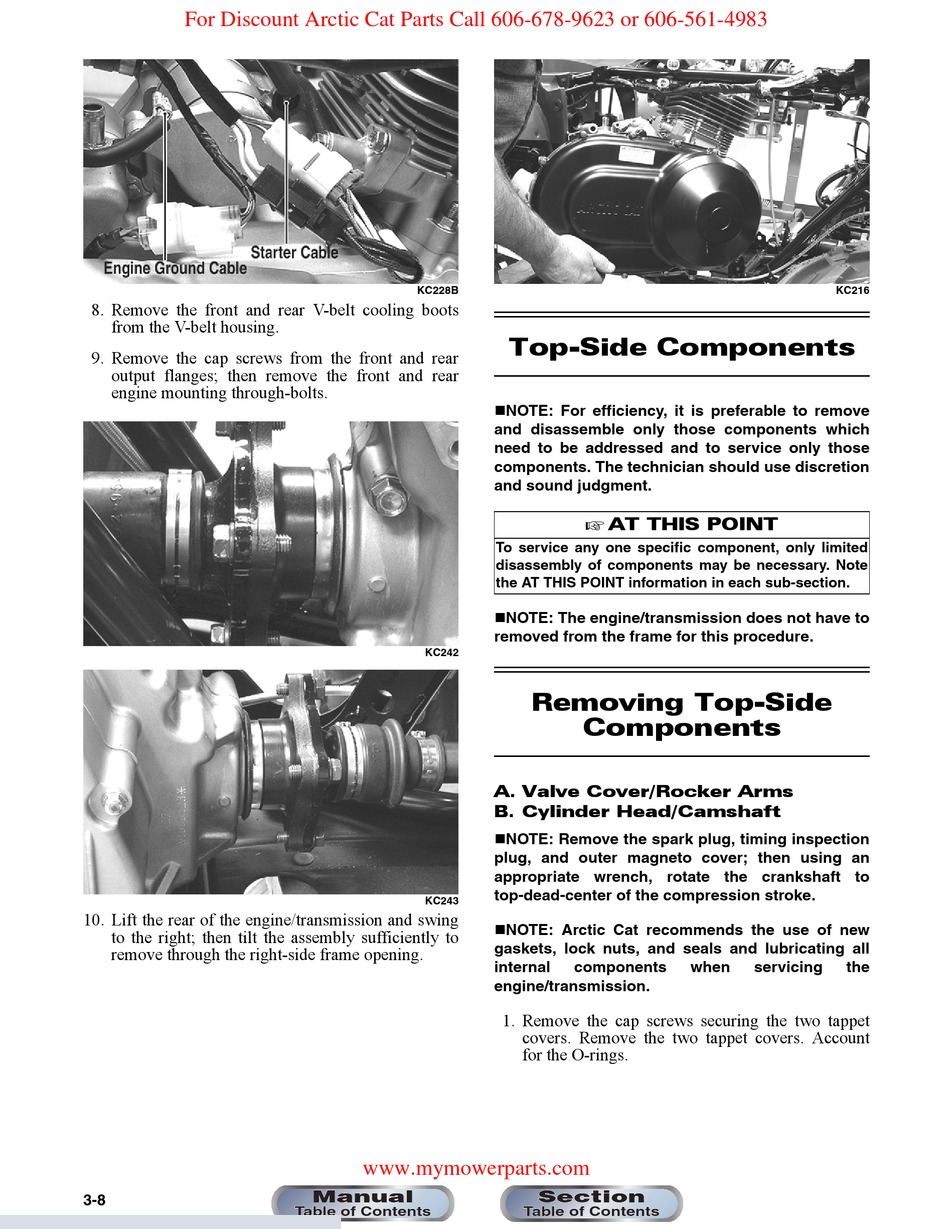

Top-Side Components; Removing Top-Side Components - Arctic Cat 350 2011 Service Manual

For Discount Arctic Cat Parts Call 606-678-9623 or 606-561-4983
8. Remove the front and rear V-belt cooling boots
from the V-belt housing.
9. Remove the cap screws from the front and rear
output flanges; then remove the front and rear
engine mounting through-bolts.
10. Lift the rear of the engine/transmission and swing
to the right; then tilt the assembly sufficiently to
remove through the right-side frame opening.
3-8
KC228B
KC242
KC243
www.mymowerparts.com
Manual
Table of Contents

Top-Side Components

NOTE: For efficiency, it is preferable to remove
and disassemble only those components which
need to be addressed and to service only those
components. The technician should use discretion
and sound judgment.
 AT THIS POINT
To service any one specific component, only limited
disassembly of components may be necessary. Note
the AT THIS POINT information in each sub-section.
NOTE: The engine/transmission does not have to
removed from the frame for this procedure.
Removing Top-Side
Components
A. Valve Cover/Rocker Arms
B. Cylinder Head/Camshaft
NOTE: Remove the spark plug, timing inspection
plug, and outer magneto cover; then using an
appropriate wrench, rotate the crankshaft to
top-dead-center of the compression stroke.
NOTE: Arctic Cat recommends the use of new
gaskets, lock nuts, and seals and lubricating all
internal components
engine/transmission.
1. Remove the cap screws securing the two tappet
covers. Remove the two tappet covers. Account
for the O-rings.
Section
Table of Contents
KC216
when servicing the
