 Bezel assembly and key
 RealPresence Collaboration Server 800s recovery DVD (included for recovery purposes; the
software is already installed on the server)
 A USB memory stick with hardware diagnostic utilities (to be used only under the direction of
Polycom® Global Services)
 A USB memory stick which contains the LAN Configuration Utility, support utilities and
documentation.
4 Examine the contents for damage. Again, if you find damage, file a claim with the delivery carrier.
5 Unpack your system and identify each item. Keep all shipping materials in case you need them later.

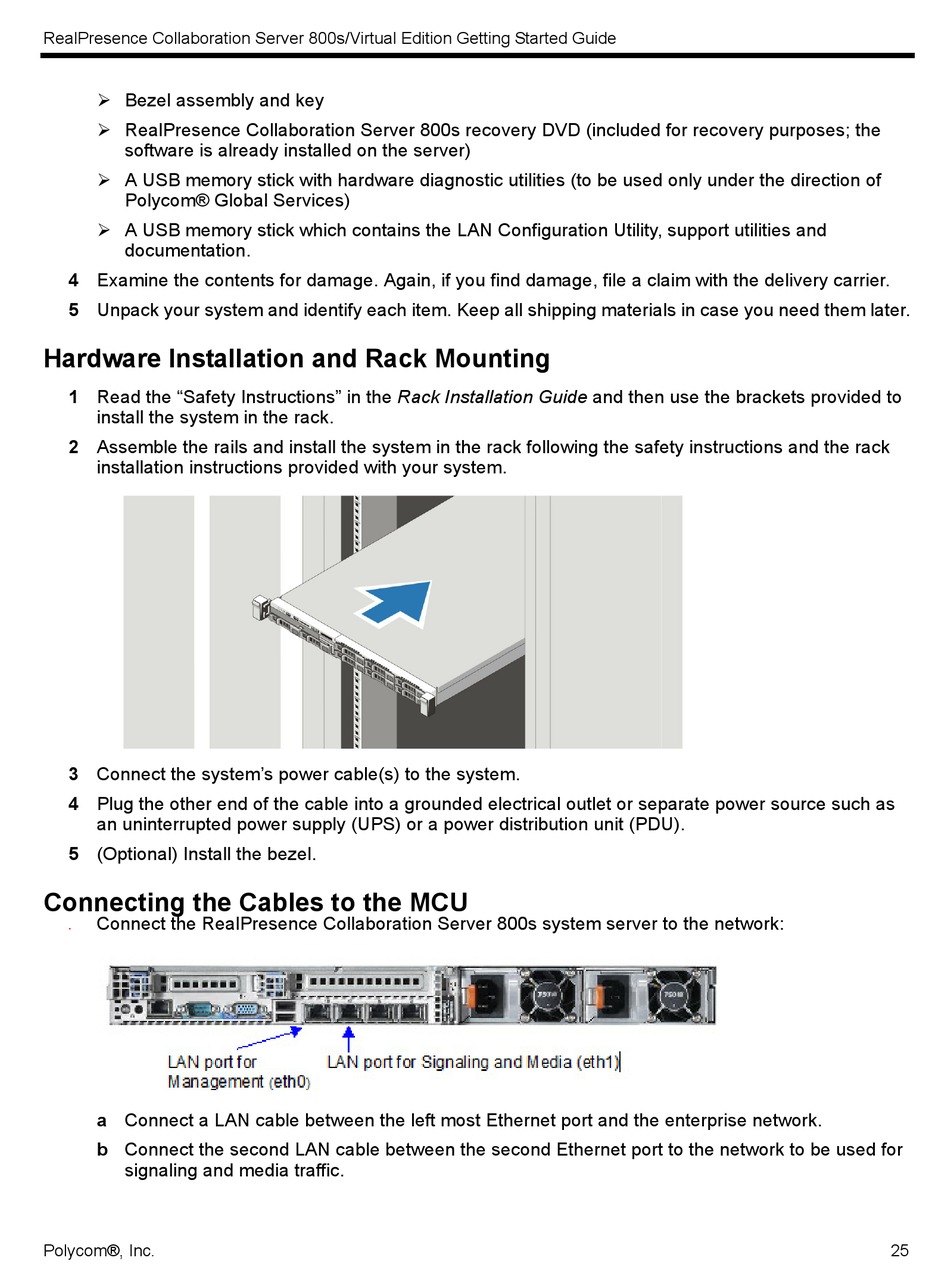

Hardware Installation and Rack Mounting

1 Read the "Safety Instructions" in the Rack Installation Guide and then use the brackets provided to
install the system in the rack.
2 Assemble the rails and install the system in the rack following the safety instructions and the rack
installation instructions provided with your system.
3 Connect the system's power cable(s) to the system.
4 Plug the other end of the cable into a grounded electrical outlet or separate power source such as
an uninterrupted power supply (UPS) or a power distribution unit (PDU).
5 (Optional) Install the bezel.

Connecting the Cables to the MCU

Connect the RealPresence Collaboration Server 800s system server to the network:
●
a Connect a LAN cable between the left most Ethernet port and the enterprise network.
b Connect the second LAN cable between the second Ethernet port to the network to be used for
signaling and media traffic.
