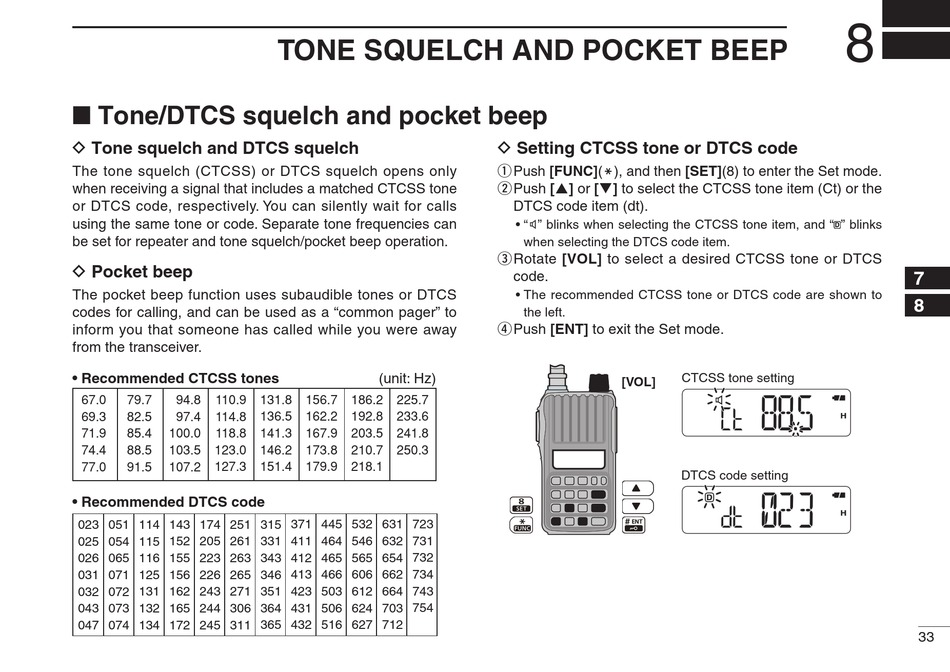

■ Tone/DTCS squelch and pocket beep

D Tone squelch and DTCS squelch
The tone squelch (CTCSS) or DTCS squelch opens only
when receiving a signal that includes a matched CTCSS tone
or DTCS code, respectively. You can silently wait for calls
using the same tone or code. Separate tone frequencies can
be set for repeater and tone squelch/pocket beep operation.
D Pocket beep
The pocket beep function uses subaudible tones or DTCS
codes for calling, and can be used as a "common pager" to
inform you that someone has called while you were away
from the transceiver.
• Recommended CTCSS tones
67.0 79.7 94.8 110.9
69.3 82.5 97.4 114.8
71.9 85.4 100.0 118.8
74.4 88.5 103.5 123.0
77.0 91.5 107.2 127.3
• Recommended DTCS code
023 051 114 143 174 251
025 054 115 152 205 261
026 065 116 155 223 263
031 071 125 156 226 265
032 072 131 162 243 271
043 073 132 165 244 306
047 074 134 172 245 311

TONE SQUELCH AND POCKET BEEP

(unit: Hz)
131.8 156.7 186.2 225.7
136.5 162.2 192.8 233.6
141.3 167.9 203.5 241.8
146.2 173.8 210.7 250.3
151.4 179.9 218.1
371 445 532 631 723
315
331 411 464 546 632 731
343 412 465 565 654 732
346 413 466 606 662 734
423 503 612 664 743
351
364 431 506 624 703 754
365 432 516 627 712
D Setting CTCSS tone or DTCS code
q Push [FUNC](M), and then [SET](8) to enter the Set mode.
w Push [p] or [q] to select the CTCSS tone item (Ct) or the
DTCS code item (dt).
• " " blinks when selecting the CTCSS tone item, and "
when selecting the DTCS code item.
e Rotate [VOL] to select a desired CTCSS tone or DTCS
code.
• The recommended CTCSS tone or DTCS code are shown to
the left.
r Push [ENT] to exit the Set mode.
[VOL]
8
" blinks
D
CTCSS tone setting
DTCS code setting
