Chapter 3
2. Remove the bezel from the front of the HP NetServer by swinging the
bezel open (past 90 degrees) until it releases from the three posts on the
bezel hinge.
The bezel has three clips that mount onto a hinge assembly, which is
secured to the HP NetServer chassis.

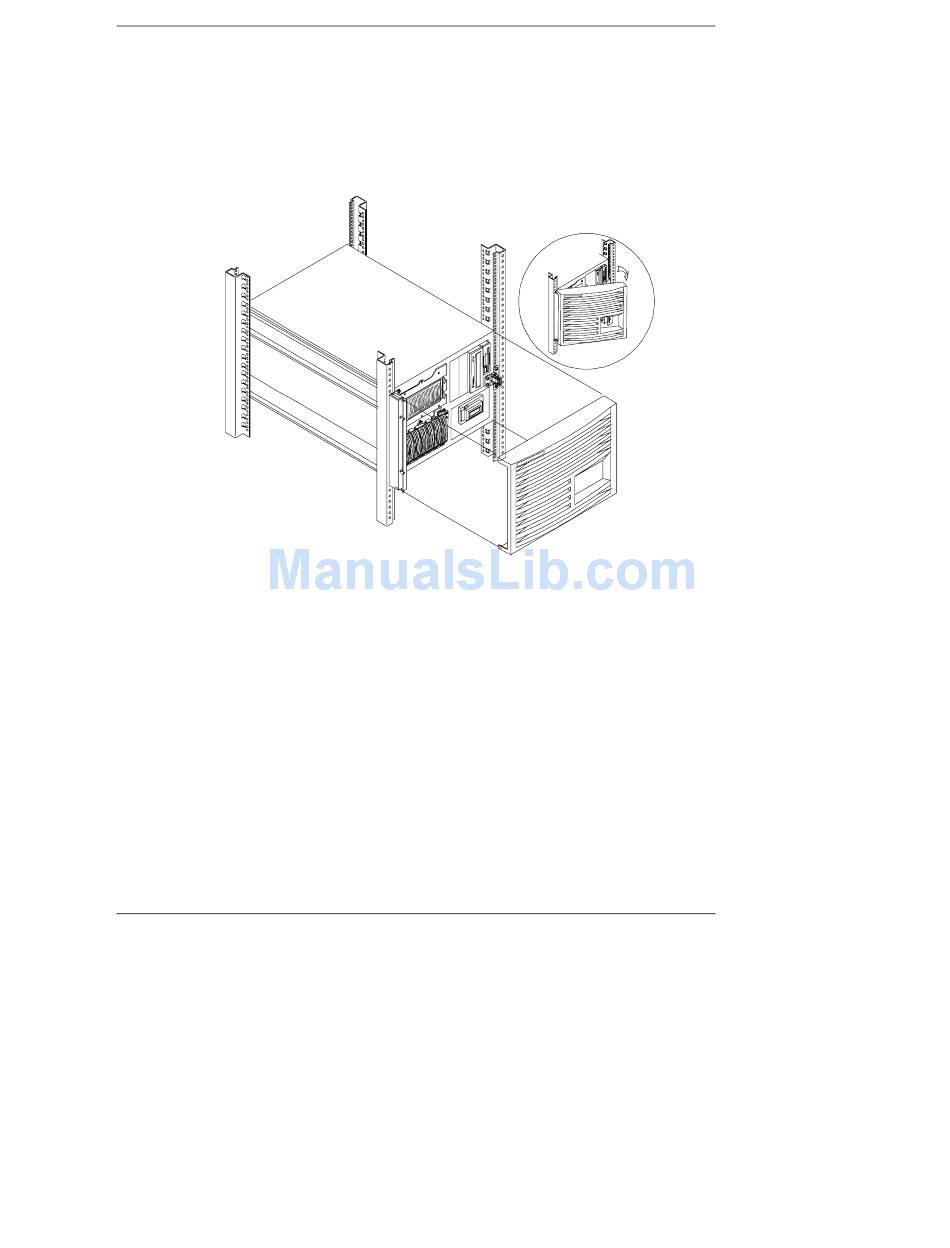

Figure 3-3. Removing the HP NetServer LH 3000r Bezel
3. Use a Torx 15 screwdriver to unscrew the four screws, as shown in Figure
4. Do not unscrew the entire hinge or bracket from the HP NetServer.
Remove only the outer screws so the hinge and the bracket remain attached
to the NetServer chassis.
Opening and Closing the HP NetServer
