Chapter 8
Installing the HP NetServer in the HP Rack System/E or Rack System/U
The bar nut is placed behind the outside face of the column, at the height
determined with the template, or by counting.
1. Insert two screws through the marked holes on the front columns.
2. Start (but do not tighten) two screws through the face of the bar nut. Install
the bar nuts on all four rack columns.
The slots in the mounting flange allow you to insert the flange in place behind the
outside face but in front of the bar nut.
The mounting flanges are then positioned behind the column face, but in front of
the bar nuts.
92
Place bar nut
behind outside
face of column.
Start two screws
in bar nut but do
not tighten.

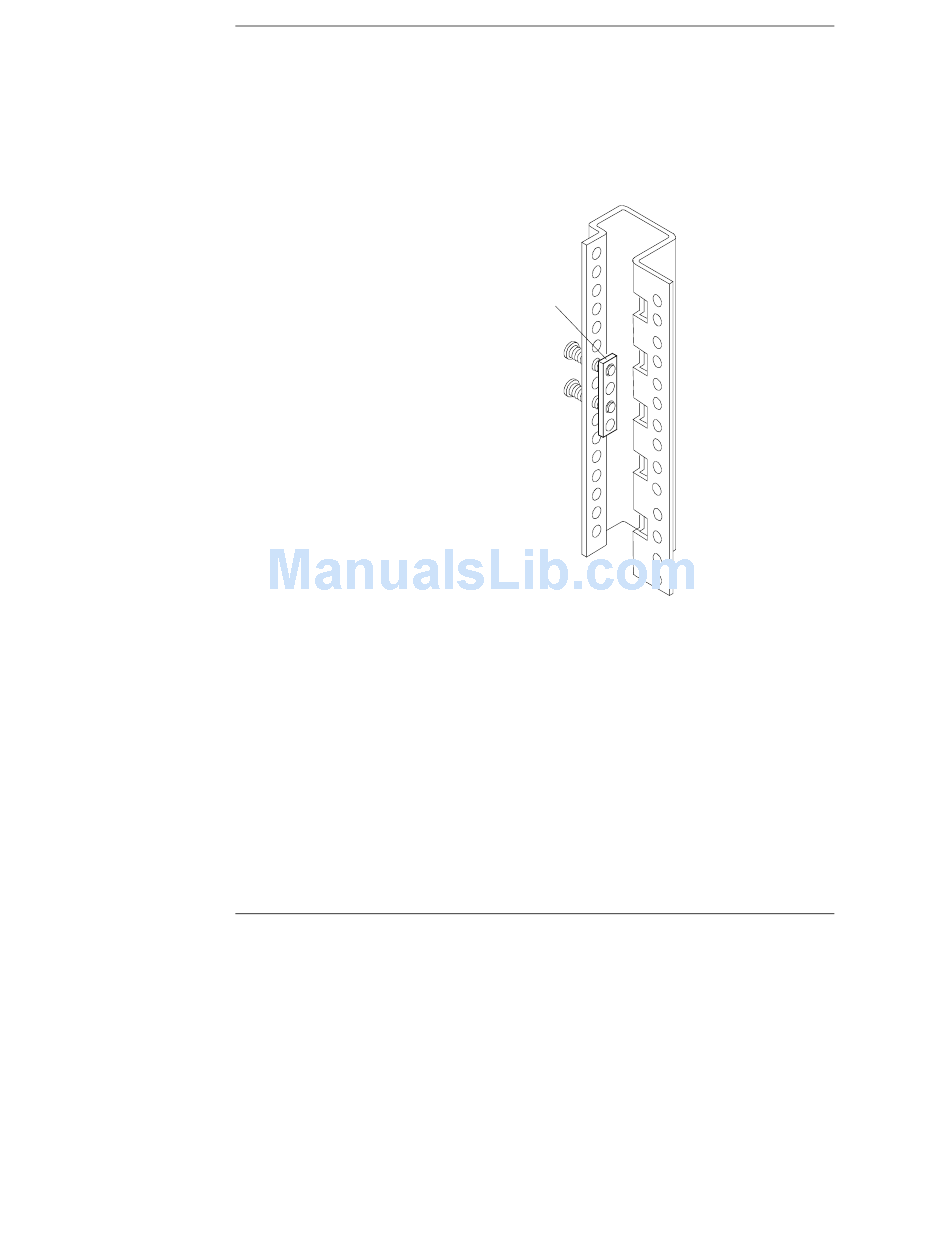

Figure 8-6. Attach Bar Nuts
