When you enable SDV, CFS distribution is also enabled; CFS distribution cannot be disabled for SDV.
Note
The following sections describe how to configure SDV:
•
•
•
•
•

Configuring a Virtual Device

A virtual device is identified by an alphanumeric name of up to 32 characters and defines all the real
devices (one primary and one or more secondary) that it represents. Upon the successful creation of a
virtual device, the virtual device name is internally registered as the device alias name with the device
alias database; the pWWN is automatically assigned by the system using Cisco Organizational Unique
Identifier (OUI). A virtual device appears as a real, physical device. You can enumerate up to 128 devices
for a virtual device. There is a limit of 4095 on the number of virtual devices that you can create in a
single VSAN.
As of Cisco MDS SAN-OS Release 3.1(2) and NX-OS Release 4.1(1a), SDV supports up to 1024 virtual
Note
devices per VSAN.
Figure 21-5
Figure 21-5
OL-18084-01, Cisco MDS NX-OS Release 4.x
Configuring a Virtual Device, page 21-5
Configuring a Zone for a Virtual Device, page 21-7
Linking a Virtual Device with a Physical Device, page 21-10
Configuring LUN Zone Members for SDV Devices, page 21-10
Resolving Fabric Merge Conflicts, page 21-11

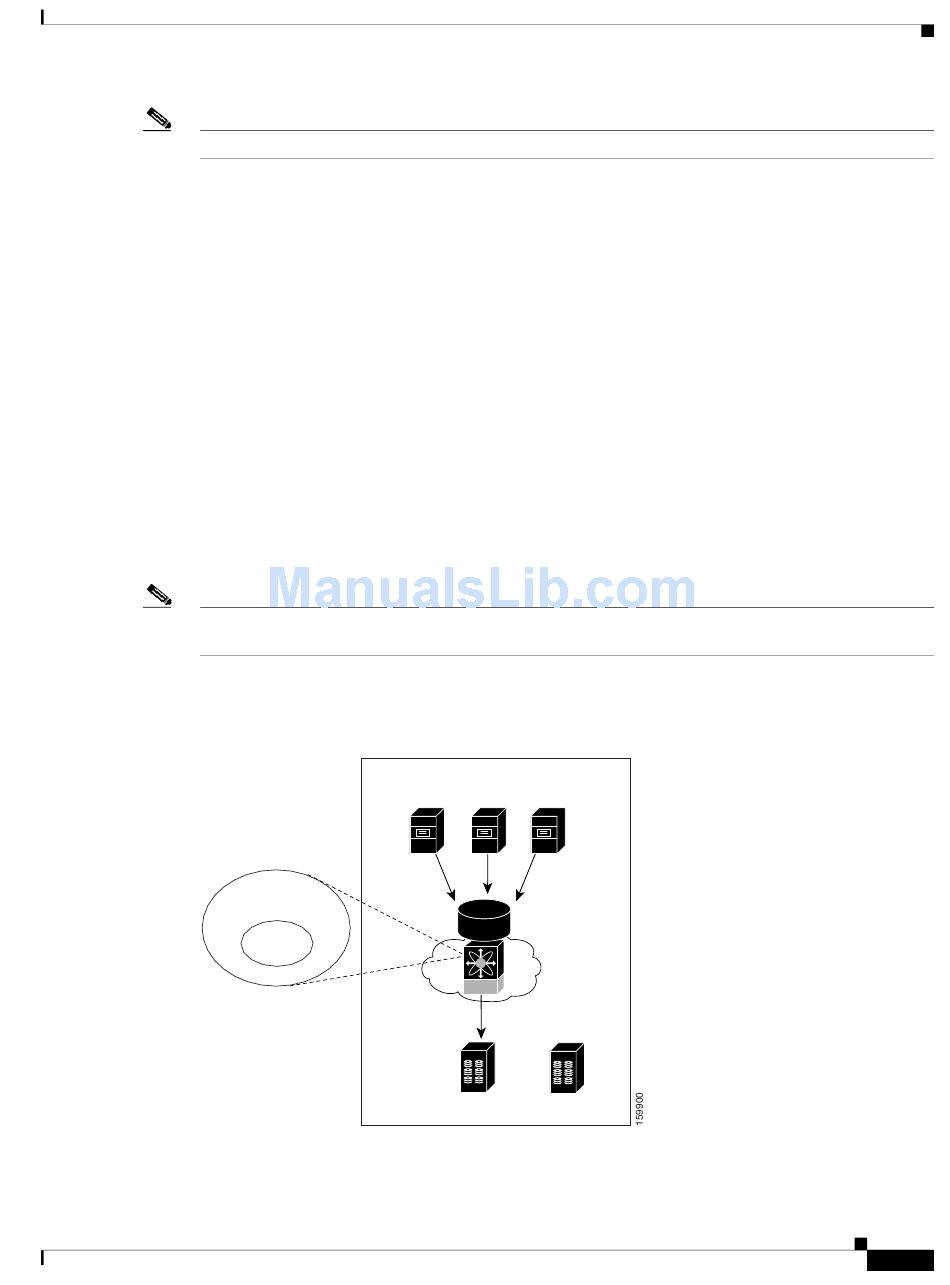

shows a configuration that includes a new virtual device, vt1.
Creating a Virtual Device
i1pwwn
SAN Device
Virtualization
vtpwwn
vt1
VT
i2pwwn i3pwwn
i1 i2 i3
Virtual
Device
t1pwwn t2pwwn
t1 t2
Primary
Secondary
