JUNOSe 11.1.x Policy Management Configuration Guide
For example, a value of 0000030000000090 in VSA 26-59 configures the following
fields in the mirror header, as shown in Figure 23 on page 252:

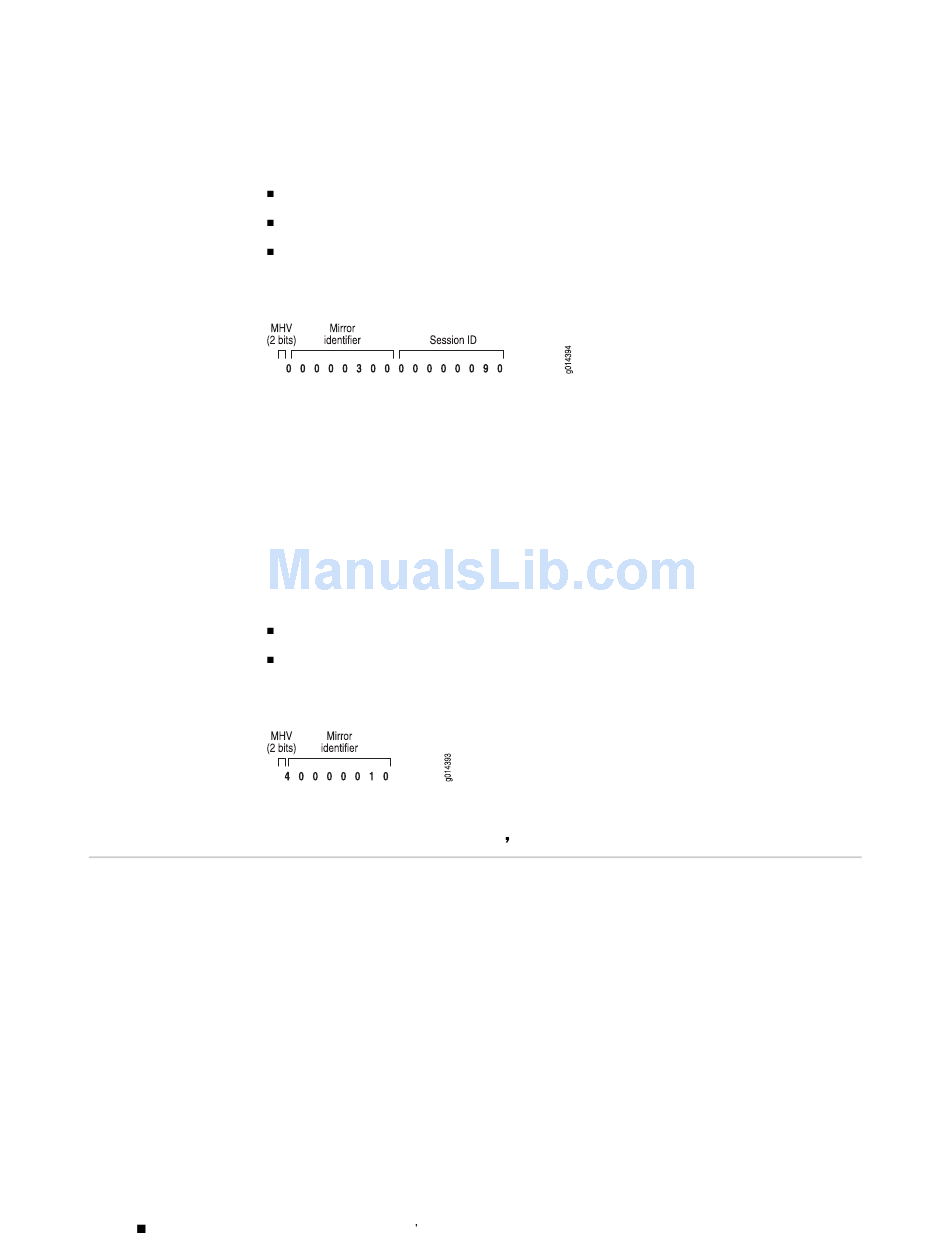

Figure 23: 8-Byte Format of VSA 26-59

4-Byte Format
To use the 4-byte format of VSA 26-59, you configure the first two most significant
bits of the VSA to a value of 1, which indicates a single word in the VSA. The
remaining 30 bits of the word form the Mirror Identifier value. The router then creates
the Session-ID value based on the least significant 32 bits of the Acct-Session-ID
(RADIUS attribute 44).
For example, a value of 40000010 for VSA 26-59 configures the following fields in
the mirror header, as shown in Figure 24 on page 252:

Figure 24: 4-Byte Format of VSA 26-59

Resolving and Tracking the Analyzer Device s Address
During the packet mirroring configuration process, you specify the IP address of the
analyzer device to which the mirrored traffic is sent. For CLI-based packet mirroring,
you use the mirror analyzer-ip-address command to specify the IP address. For
RADIUS-based packet mirroring, the RADIUS attribute Med-IP-Address [26-60] is the
address of the analyzer device.
After configuration is complete, the router performs a route lookup to resolve the
analyzer device's address and to ensure that traffic can be forwarded to the analyzer
device for analysis. However, the analyzer device is considered unreachable if the
router's analyzer interface is not in analyzer mode, is not yet created, or if the routes
to the analyzer device are absent
252
Resolving and Tracking the Analyzer Device s Address
MHV = 0
Mirror Identifier = 0x300
Session-ID = 0x90
MHV = 1
Mirror Identifier = 0x10
