Memory Operation; Programming Notes - Icom IC-A200 Instruction Manual

a 4
sl

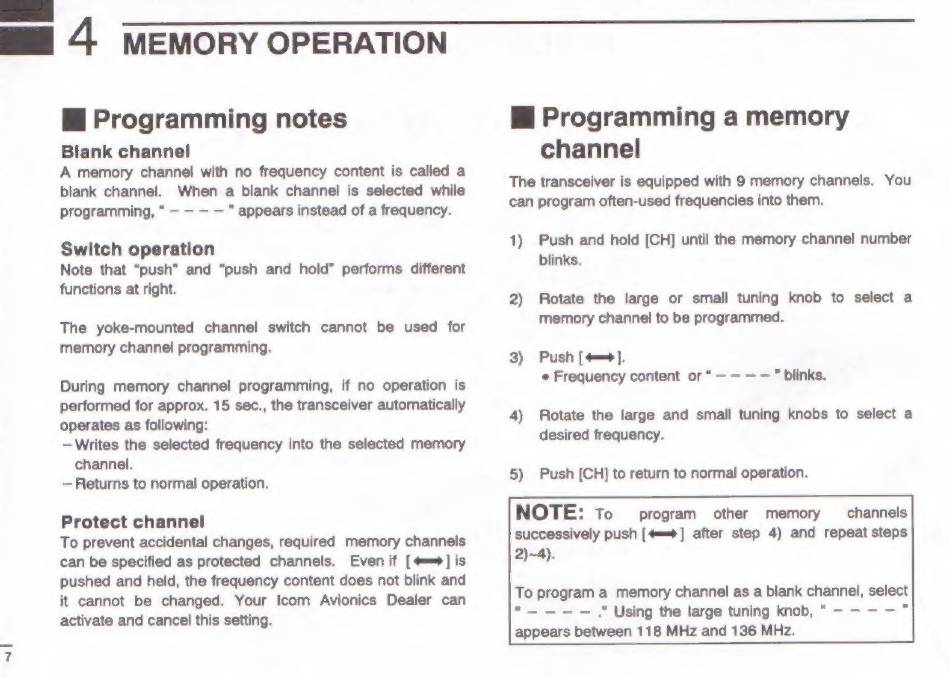

MEMORY OPERATION
i Programming notes
Blank channel
A memory channel with no frequency content is called a
blank channel. When a blank channel is selected while
programming, " —- — — — " appears instead of a frequency.
Switch operation
Note that "push" and "push and hold" performs different
functions at right.
The yoke-mounted channel switch cannot be used for
memory channel programming.
During memory channel programming, if no operation is
performed for approx. 15 sec., the transceiver automatically
operates as following:
—Writes the selected frequency into the selected memory
channel.
— Returns to normal operation.
Protect channel
To prevent accidental changes, required memory channels
can be specified as protected channels. Even if [«==] is
pushed and held, the frequency content does not blink and
it cannot be changed. Your Icom Avionics Dealer can
activate and cancel this setting.
Mi Programming a memory
channel
The transceiver is equipped with 9 memory channels. You
can program often-used frequencies into them.
1) Push and hold [CH] until the memory channel number
blinks.
2) Rotate the large or small tuning knob to select a
memory channel to be programmed.
3) Push [=].
¢ Frequency content or "— — — —" blinks.
4) Rotate the large and small tuning knobs to select a
desired frequency.
5) Push [CH] to return to normal operation.
NOTE: To program other memory channels
successively push [==] after step 4) and repeat steps
2)~4).
To program a memory channel as a blank channel, select
"— —-— -— ." Using the large tuning knob, "- - - -"
appears between 118 MHz and 136 MHz.
